1995 Suzuki RM80 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 1995 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

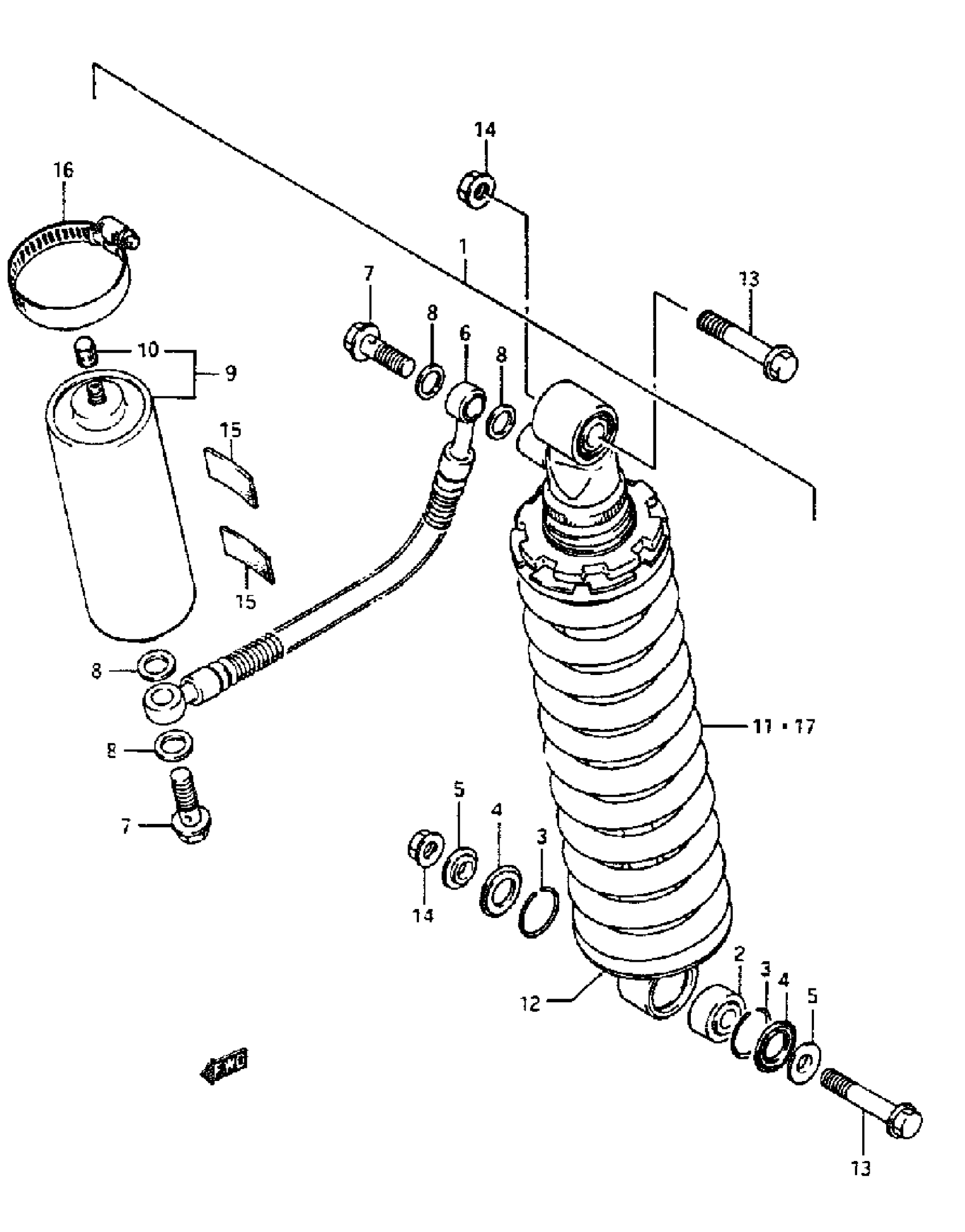

1995 Suzuki RM80 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK | YELLOW This part replaces 62100-02B00-163.

62100-02B30-163

1
Out of stock

2

BEARING, REAR (10x24x14.5) This part replaces 62175-20920.

62175-00B00

1
Out of stock

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

2
Out of stock

4

DUST SEAL

62226-02B00

2
Out of stock

5

COLLAR

62684-31300

2
Out of stock

6

HOSE

62280-02B00

1
Out of stock

7

BOLT

62281-20900

2
Out of stock

8

WASHER (10X15X1.5)

09161-10009

4
Out of stock

9

JANK

62270-02B00

1
Out of stock

10

CAP

51294-40400

1
Out of stock

11

SPRING

62211-02B00

1
Out of stock

12

SEAT

62225-20400

1
Out of stock

13

BOLT

62648-14500

2
Out of stock

14

NUT

08319-31107

2
Out of stock

15

CUSHION

62423-02B00

2
Out of stock

16

CLAMP This part replaces 09402-70501.

09402-70503

1
Out of stock

17

SPRING (HARD) | OPT

62211-02B20

1
Out of stock
