1995 Suzuki RM80 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1995 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

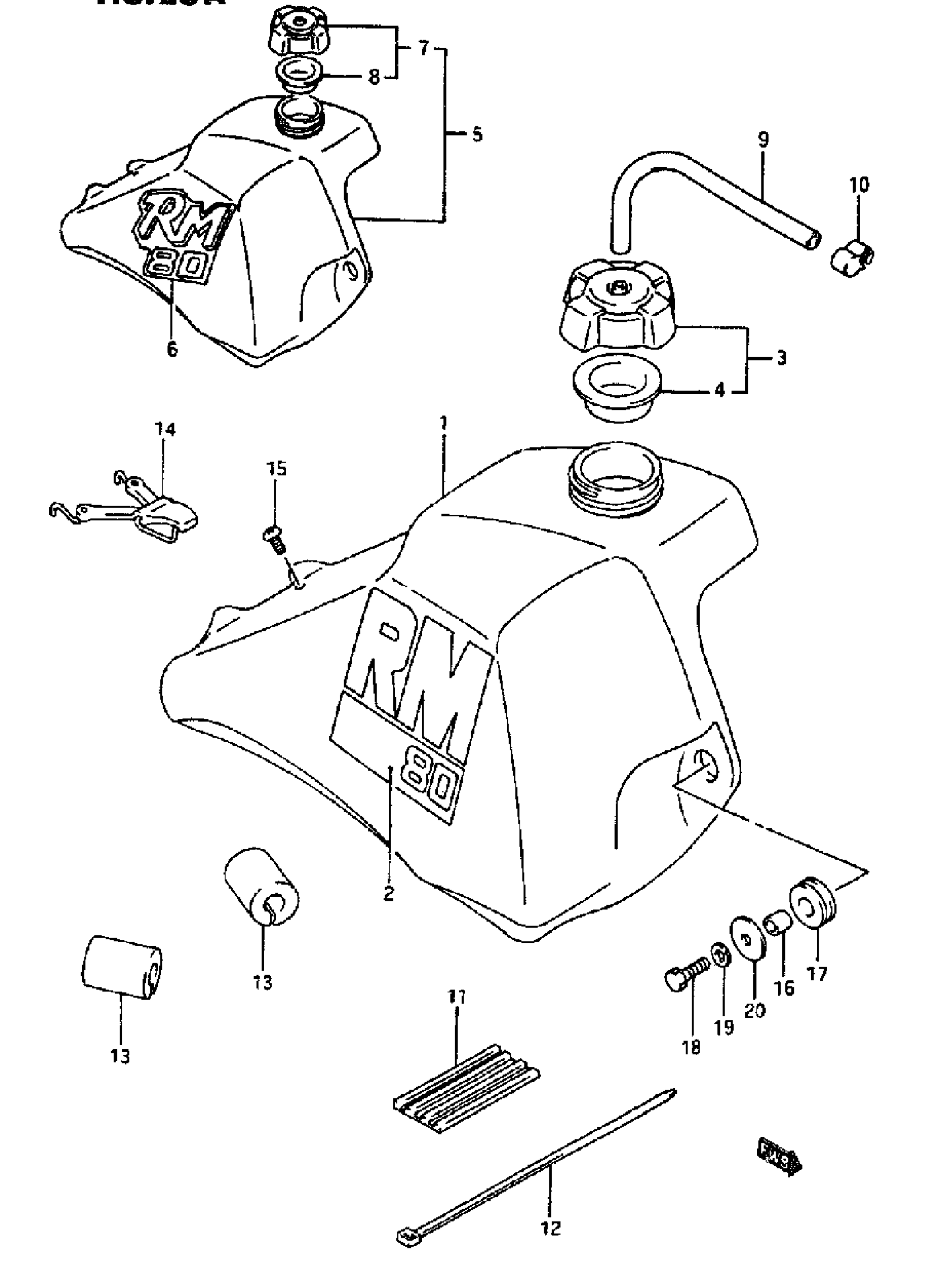

1995 Suzuki RM80 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | MODEL 3 This part replaces 44100-02870-25Y.

44110-02B00-25Y

1
Out of stock

2

EMBLEM, FUEL TANK | "DE I I This part replaces 68111-02B20-9UR.

68111-03B00-0WN

1
Out of stock

4

1

$3.85

In stock

5

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 44100-02880-25Y.

44101-02841-25Y

1
Out of stock

6

EMBLEM, FUEL TANK | MODEL K

68111-02B30-2DP

1
Out of stock

8

1

$3.85

In stock

10

CLAMP | MODEL J

44486-32101

1

$3.74

In stock

11

CUSHION, UPPER FRONT

44541-14300

1

$9.17

In stock

12

1

$4.50

In stock

13

CUSHION, UPPER REAR

44542-17300

2

$9.17

In stock

14

BAND, REAR

44560-02B00

1
Out of stock

15

SCREW This part replaces 02142-06164.

02142-0616A

1
Out of stock

16

2

$2.87

In stock

17

2

$6.55

In stock

19

2

$1.97

In stock

20

2

$2.03

In stock
