1995 Suzuki RM80 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1995 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

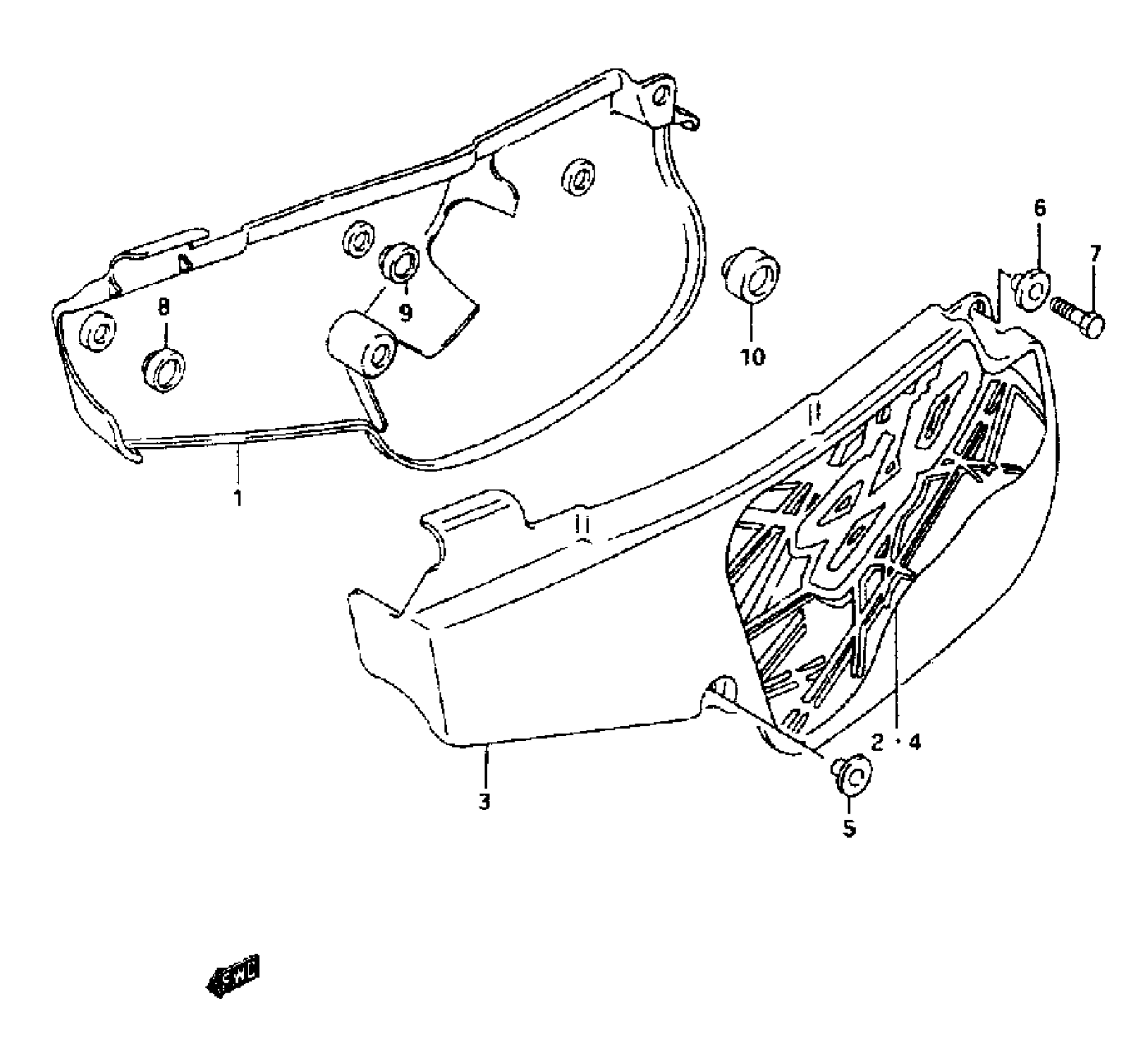

1995 Suzuki RM80 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER. FRAME RH (WHITE)

47111-02B03-30H

1
Out of stock

2

EMBLEM, RH | MODEL P

68132-03B40-A4J

1
Out of stock

3

COVER, FRAME LH (WHITE)

47211-02B01-30H

1
Out of stock

4

EMBLEM, LH | MODEL F

68142-03B40-A4J

1
Out of stock

5

WASHER. LOWER

09169-06010

2
Out of stock

6

SPACER | MODEL P/R This part replaces 09169-06050.

09169-06065

2
Out of stock

6

WASHER, REAR | MODEL 5

09169-06065

2
Out of stock

7

BOLT, REAR | MODEL P/R

01547-06257

2
Out of stock

7

BOLT, FINAL GEAR CASE COVER | MODEL S This part replaces 01547-06253.

01547-0625B

2
Out of stock

8

CUSHION, RH FRONT

09321-10024

1
Out of stock

9

CUSHION, RH MIDDLE

09321-10018

1
Out of stock

10

CUSHION, RH FRONT This part replaces 09321-10020.

09321-10024

1
Out of stock
