1985 Suzuki RM80 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1985 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

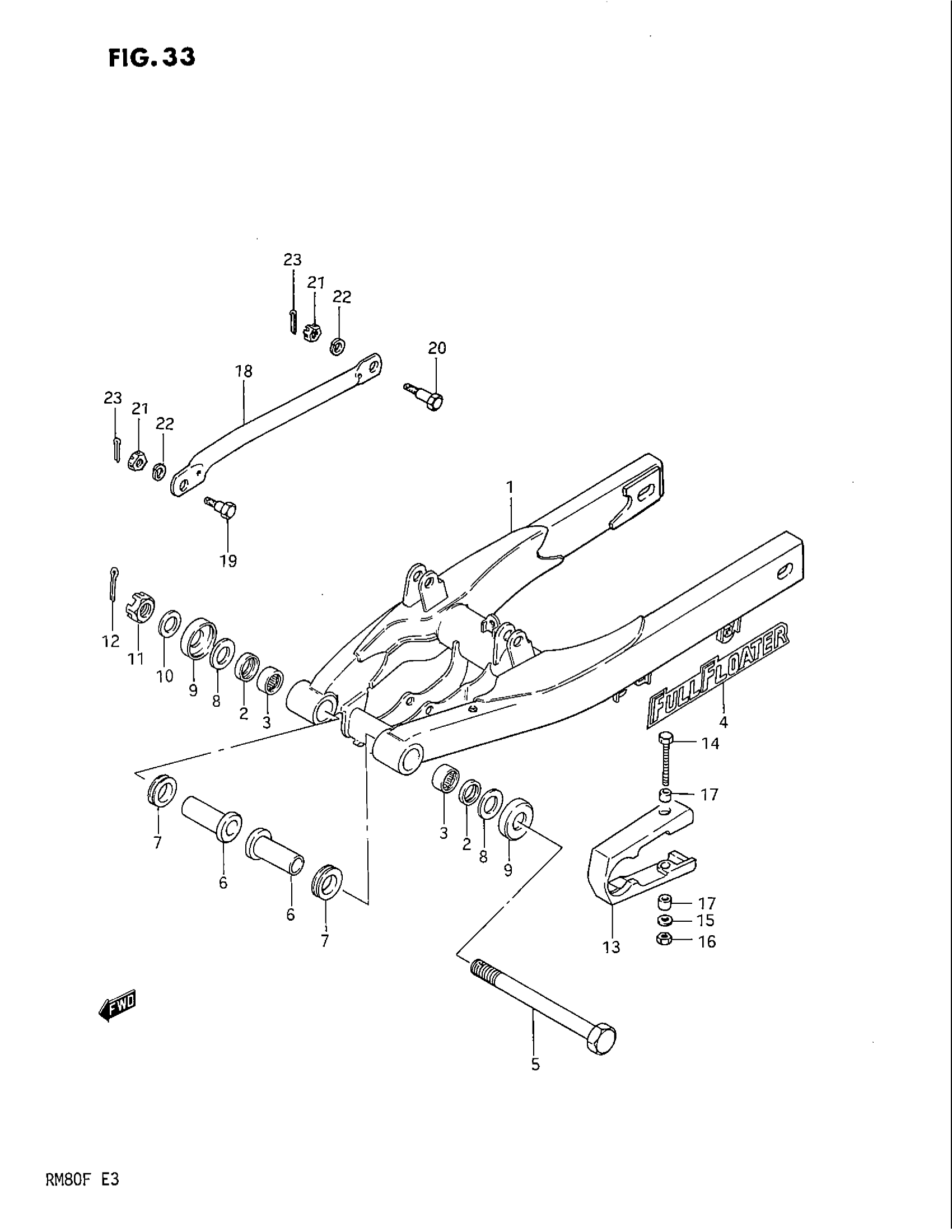

1985 Suzuki RM80 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET (GOLD) | MODEL D

61000-20902-08C

1
Out of stock

1

REAR SWINGING ARM SET (GOLD) | MODEL E/F; Includes Item(s) 2 - 4

61000-20910-08C

1
Out of stock

2

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

3

BEARING, CENTER (17X24X20) This part replaces 09263-17011.

09263-17027

2
Out of stock

4

EMBLEM | MODEL D

68381-03400-64D

2
Out of stock

4

EMBLEM | MODEL E/F

68381-20920-97J

2
Out of stock

5

SHAFT, PIVOT

61211-20400

1
Out of stock

6

SPACER

61251-20400

2
Out of stock

7

OIL SEAL

09286-17001

2
Out of stock

8

THRUST WASHER

08211-12281

2
Out of stock

9

COVER This part replaces 61262-41500.

61262-41501

2
Out of stock

10

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

11

NUT This part replaces 08314-41128.

08314-4012A

1
Out of stock

12

PIN This part replaces 04111-20308.

04111-2030A

1
Out of stock

13

BUFFER, CHAIN DEFENCE | MODEL D This part replaces 61273-20900.

61273-20901

1
Out of stock

13

BUFFER, CHAIN DEFENCE | MODEL E/F

61273-20901

1
Out of stock

14

BOLT | MODEL D This part replaces 61275-20900.

61275-20901

1
Out of stock

14

BOLT | MODEL E/F

61275-20901

1
Out of stock

15

WASHER This part replaces 08322-21058.

08322-01057

1
Out of stock

16

NUT This part replaces 08310-22058.

08310-00057

1
Out of stock

17

SPACER,5.5X8X4 This part replaces 09180-05015.

09180-05046

2
Out of stock

18

TORQUC RINK, REAR (GOLD)

64311-20300-08C

1
Out of stock

19

BOLT, FRONT

09111-08015

1
Out of stock

20

BOLT, REAR

09111-08048

1
Out of stock

21

NUT

09140-08008

2
Out of stock

22

2

$2.28

In stock

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

2
Out of stock
