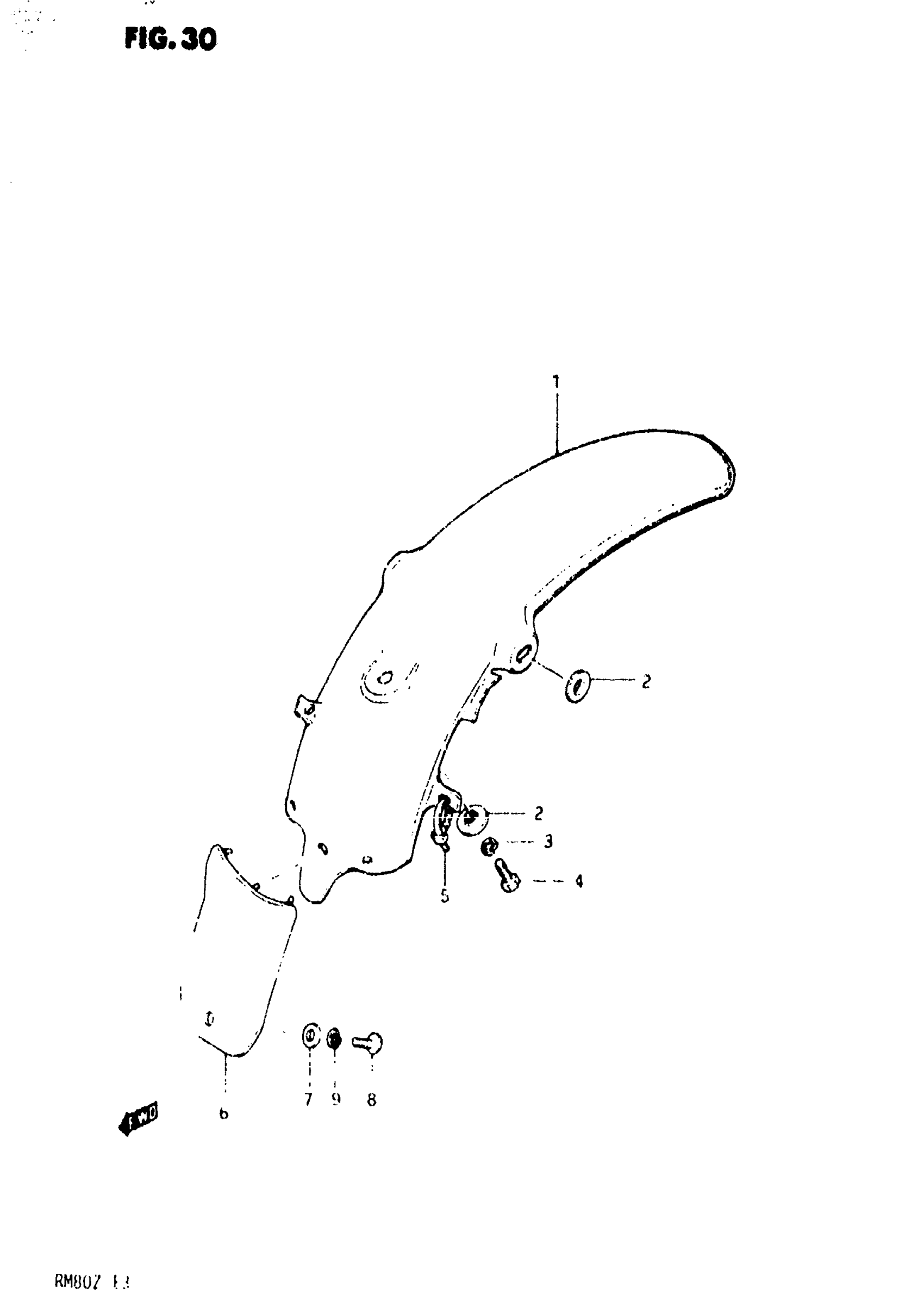

Suzuki RM80 (1982) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR This part replaces 63111-20400-163.

63111-20900-163

Unavailable

2

WASHER

09169-06016

$1.56

3

LOCK WASHER This part replaces 08321-31068.

08321-01067

$1.89

4

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

5

CLAMP This part replaces 09407-16401.

09407-25402

$4.32

6

MUD GARD

63331-20400

Unavailable

7

WASHER

09169-06010

$2.71

8

BOLT This part replaces 01107-06108.

01500-06107

$2.14

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89
