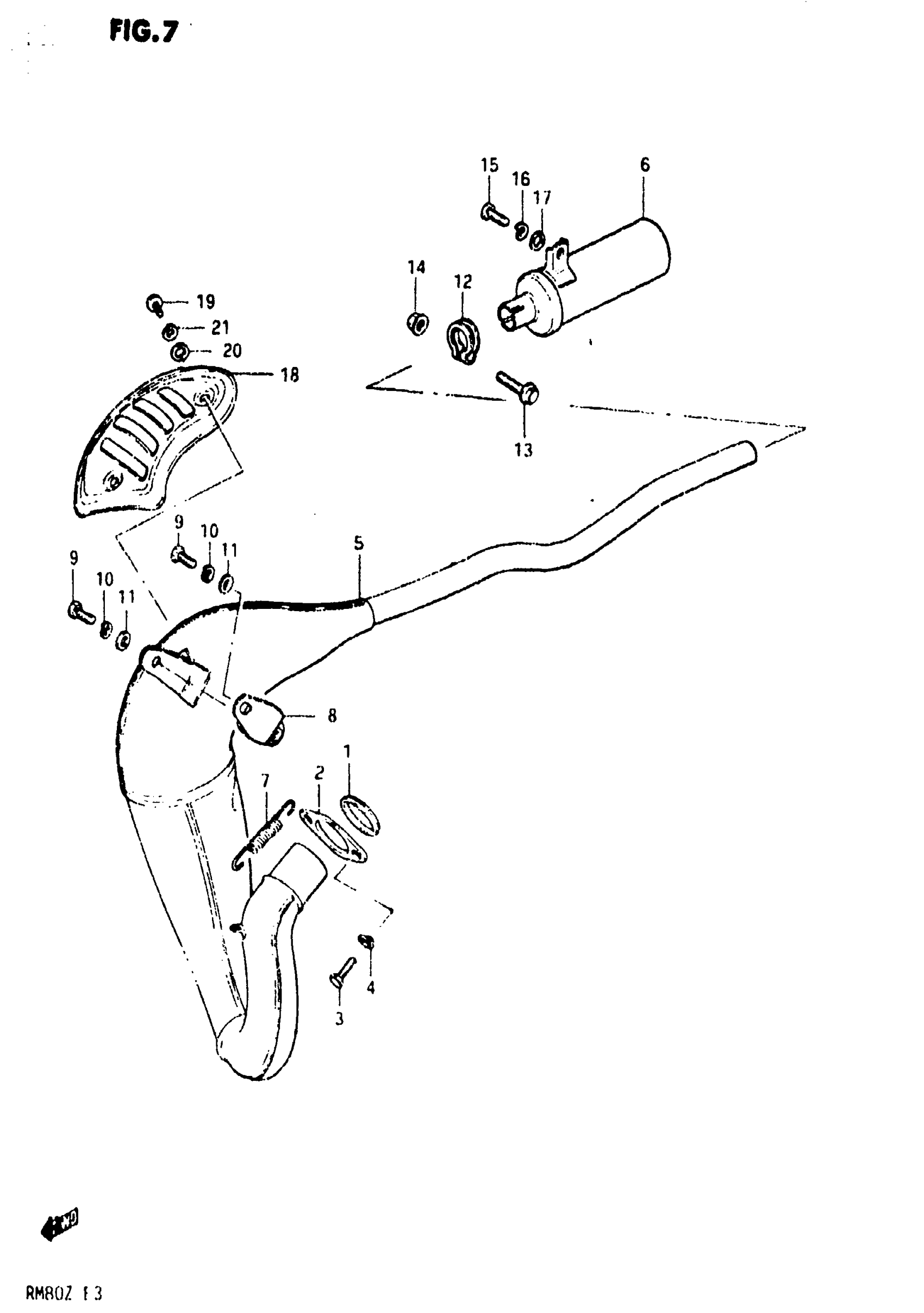

Suzuki RM80 (1982) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST FLANGE

14181-20400

Unavailable

2

CLAMP

14182-20401

Unavailable

3

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

NO DESCRIPTION AVAILABLE This part replaces 14310-20401.

14310-20401-H01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-20400.

14330-20420

Unavailable

7

SPRING

09443-11002

$2.88

8

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.23

9

BOLT This part replaces 01107-06128.

01500-06127

$2.01

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

11

WASHER This part replaces 08322-21068.

08322-01067

$1.93

12

CLAMP This part replaces 14772-20400.

14772-20401

Unavailable

13

BOLT This part replaces 01517-06258.

01550-06257

$2.38

14

NUT This part replaces 08316-26068.

08316-2006A

$2.87

15

BOLT This part replaces 01107-06128.

01500-06127

$2.01

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

17

WASHER This part replaces 08322-21068.

08322-01067

$1.93

18

COVER

14781-20401

Unavailable

19

SCREW This part replaces 02112-06108.

02112-06107

$1.49

20

WASHER This part replaces 08322-21068.

08322-01067

$1.93

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89
