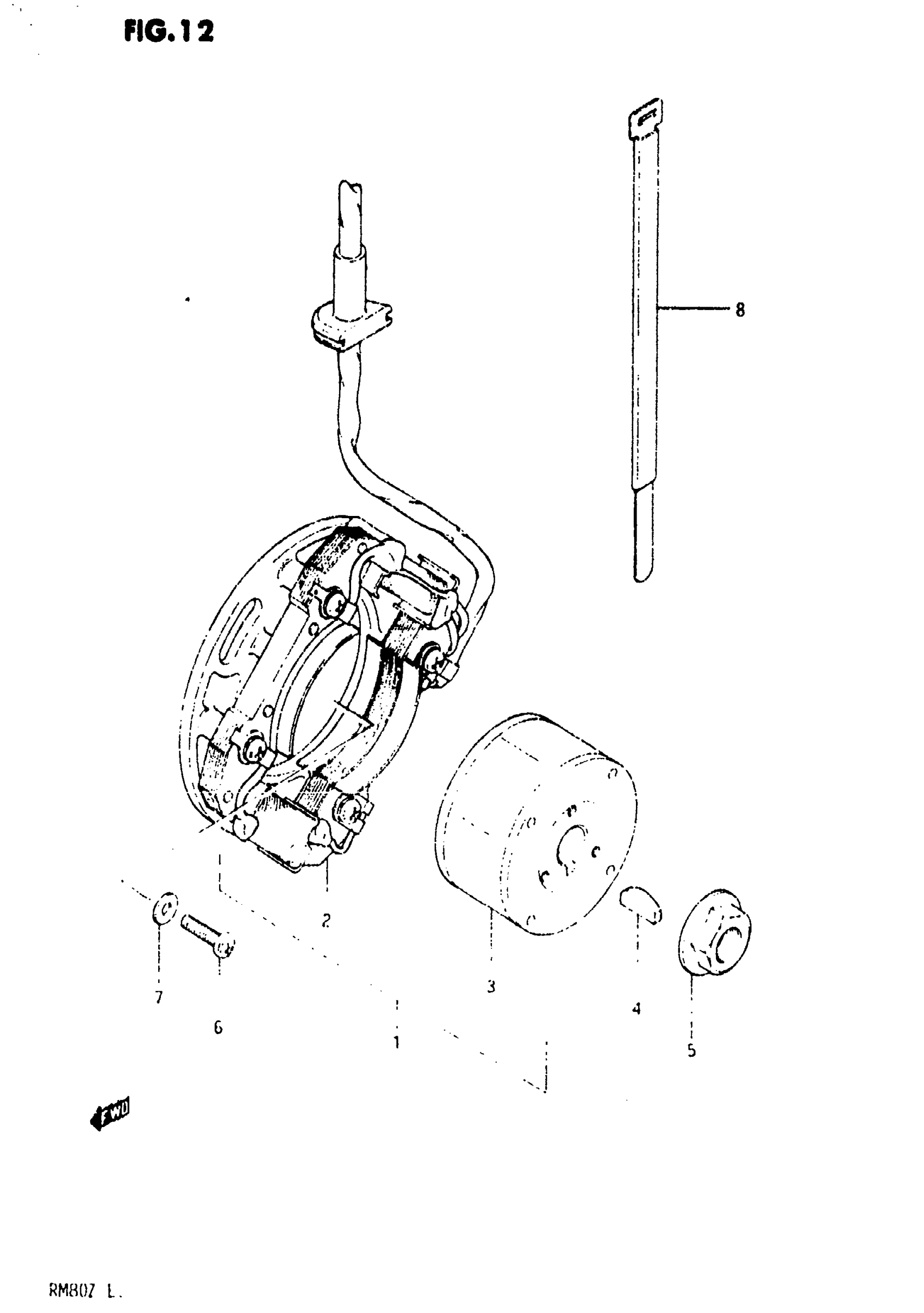

Suzuki RM80 (1982) MAGNETO Diagram

#

Description

Price

1

MAGNETO ASSY | Includes Item(s) 2 - 3

32100-20420

Unavailable

2

STATOR ASSY This part replaces 32101-20420.

32101-20921

Unavailable

3

ROTOR This part replaces 32102-20420.

32102-20921

Unavailable

4

KEY This part replaces 08341-31049.

09420-04008

$3.18

5

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.46

6

SCREW This part replaces 02112-06168.

02112-06167

$1.46

7

WASHER This part replaces 08322-21068.

08322-01067

$1.93

8

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

8

CLAMP This part replaces 09407-11301.

09407-18302

$2.27
