1982 Suzuki RM80 Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1982 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

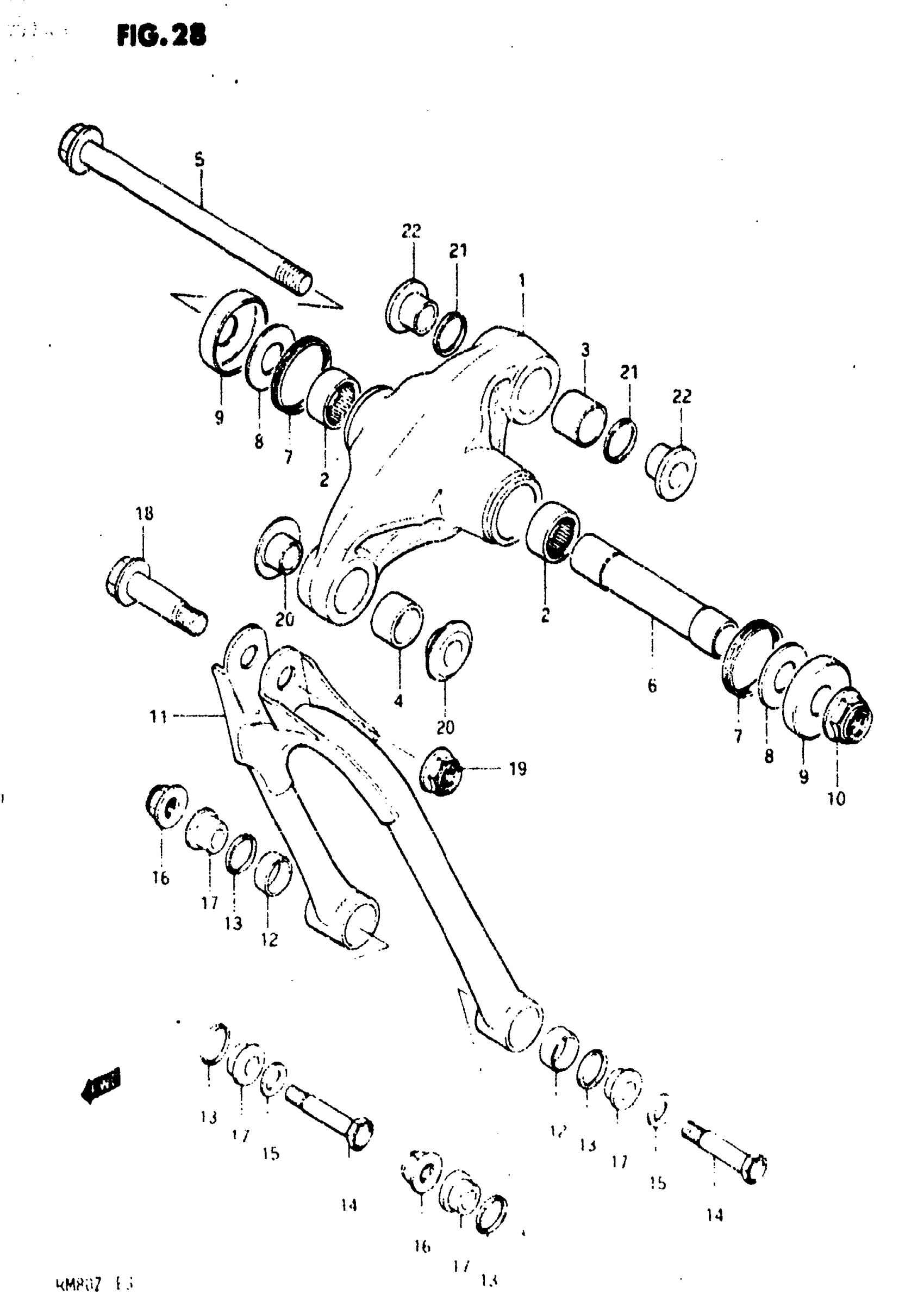

1982 Suzuki RM80 Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 62600-20810.

62600-20811

1
Out of stock

2

BEARING

09263-17018

1
Out of stock

3

BUSH, UNIT

62682-20400

1
Out of stock

4

BUSH, FRONT

62685-20400

1
Out of stock

5

SHAFT This part replaces 62621-20401.

62621-20402

1
Out of stock

6

SPACER This part replaces 62623-20401.

62623-05200

1
Out of stock

7

DUST SEAL

62624-20401

2
Out of stock

8

THRUST WASHER

08211-12321

2
Out of stock

9

DUST COVER

62627-20401

2
Out of stock

10

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

11

ROD, CUSHION LEVER | Includes Item(s) 12

62600-20820

1
Out of stock

12

BUSH, LOWER This part replaces 62642-20400.

62642-20900

2
Out of stock

13

DUST SEAL, LOWER

62647-20400

4
Out of stock

14

BOLT, LOWER

62313-20400

2
Out of stock

15

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

16

NUT This part replaces 08319-31088.

08319-3108A

2
Out of stock

17

SPACER, LOWER

62316-14100

4
Out of stock

18

BOLT, UPPER

09103-10044

1
Out of stock

19

NUT This part replaces 08319-31108.

08319-31107

1
Out of stock

20

SPACER, FRONT

62686-20400

2
Out of stock

21

DUST SEAL, UNIT

62683-20400

2
Out of stock

22

SPACER, UNIT

62684-20400

2
Out of stock
