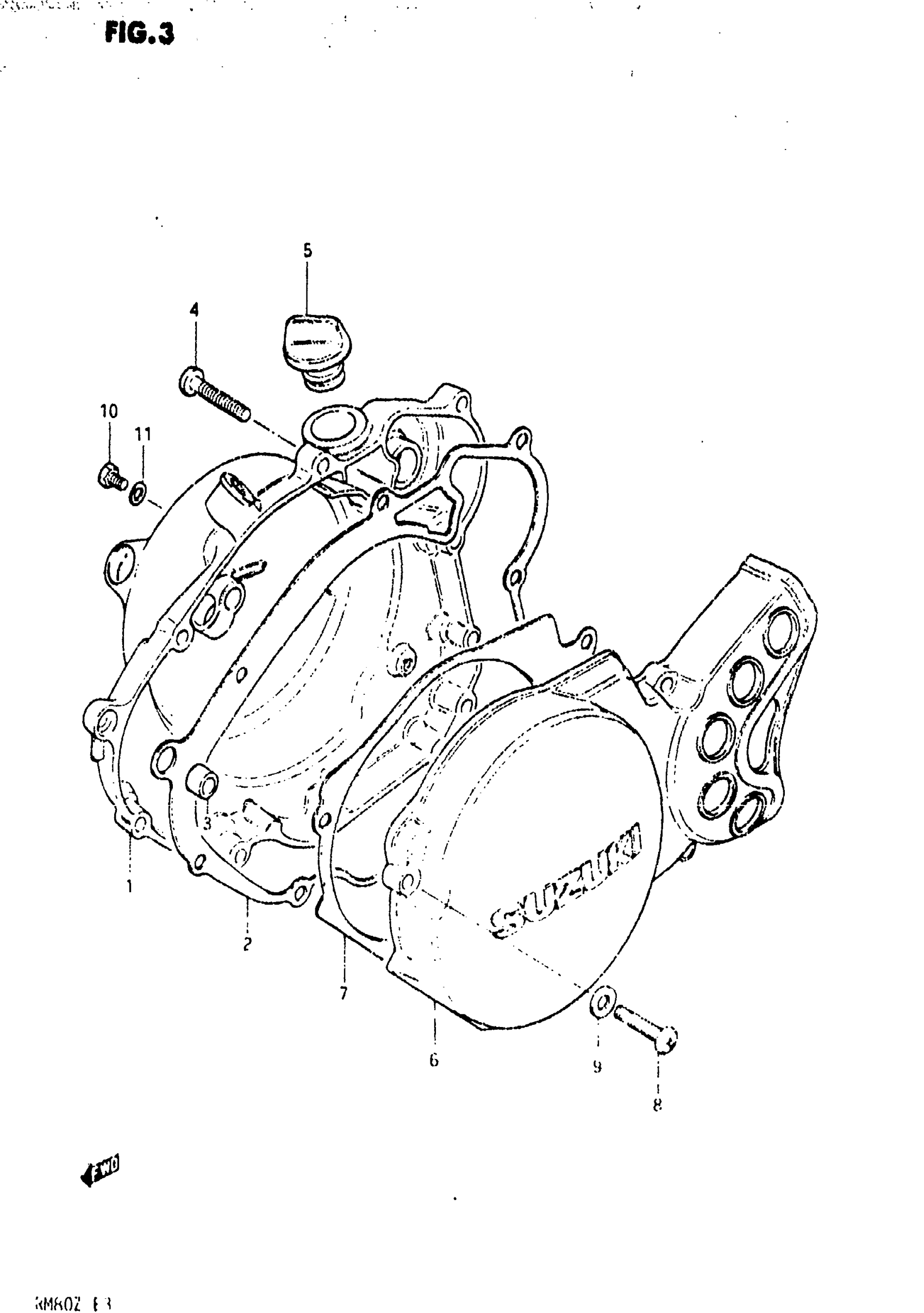

Suzuki RM80 (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-20400

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11482-20400.

11482-20400-H17

Unavailable

3

PIN

04211-09129

$1.70

4

SCREW This part replaces 02112-06258.

02112-06257

$1.68

5

PLUG This part replaces 09259-19001.

09259-19005

$2.81

6

COVER, MAGNETO This part replaces 11351-20400.

11351-20401

Unavailable

7

GASKET This part replaces 11483-20400.

11483-20403

Unavailable

8

SCREW This part replaces 02112-05208.

02112-05207

$2.03

9

WASHER This part replaces 08322-21058.

08322-01057

$1.93

10

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.43

11

GASKET

09168-06001

$1.33
