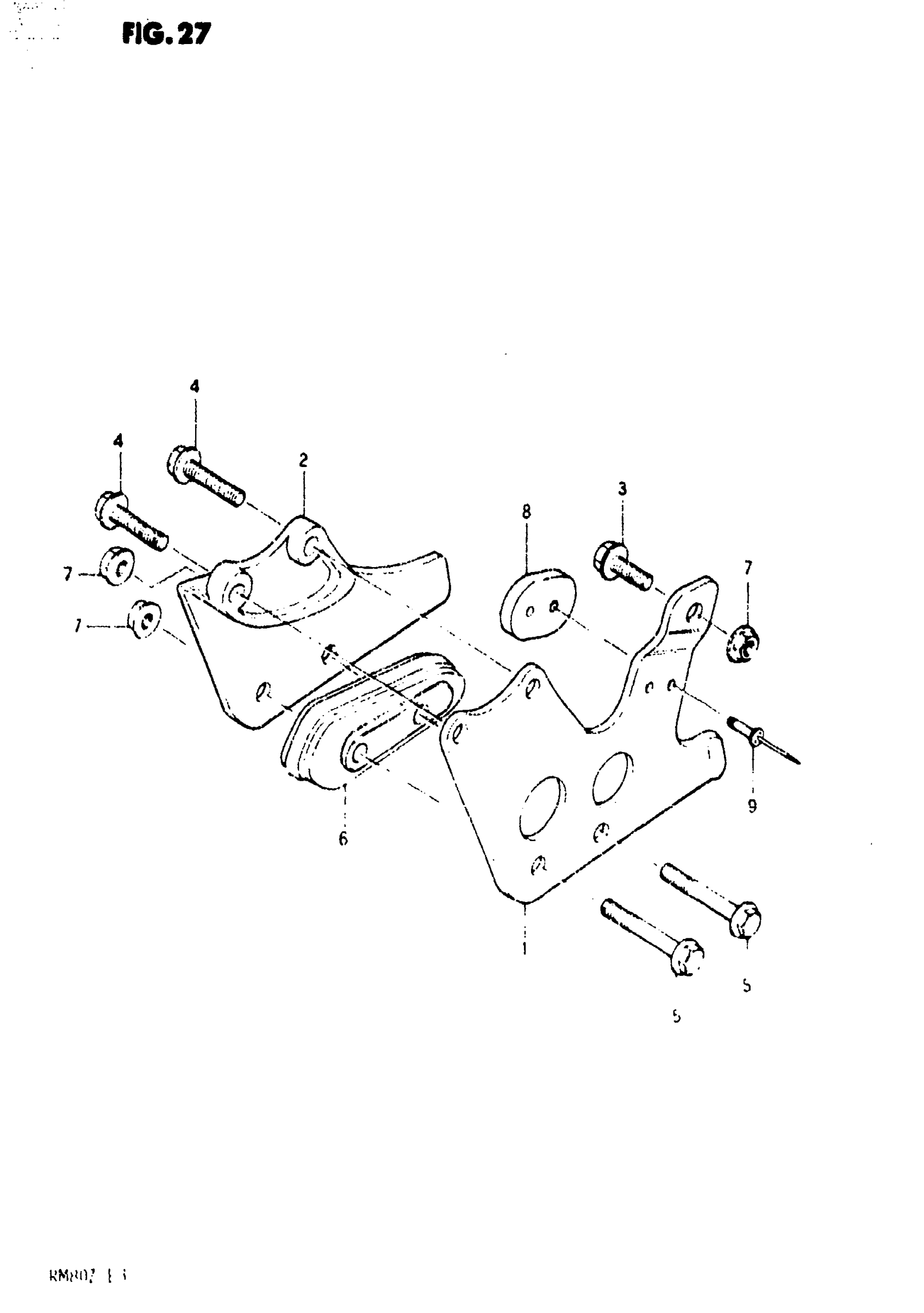

Suzuki RM80 (1982) CHAIN GUIDE Diagram

#

Description

Price

1

GUIDE, CHAIN OUTER This part replaces 61341-20400.

61341-20401

Unavailable

2

GUIDE, CHAIN INNER

61342-20400

Unavailable

3

BOLT This part replaces 01517-06168.

01550-06167

$2.22

4

BOLT This part replaces 01517-06258.

01550-06257

$2.38

5

BOLT This part replaces 01517-06408.

01550-06407

$2.80

6

DIFENCE, GUIDE LOWER

61348-14110

Unavailable

7

NUT This part replaces 08319-31068.

08319-31067

$2.09

8

PAD This part replaces 61349-40210.

61349-40211

Unavailable

9

RIVET

09229-03005

Unavailable
