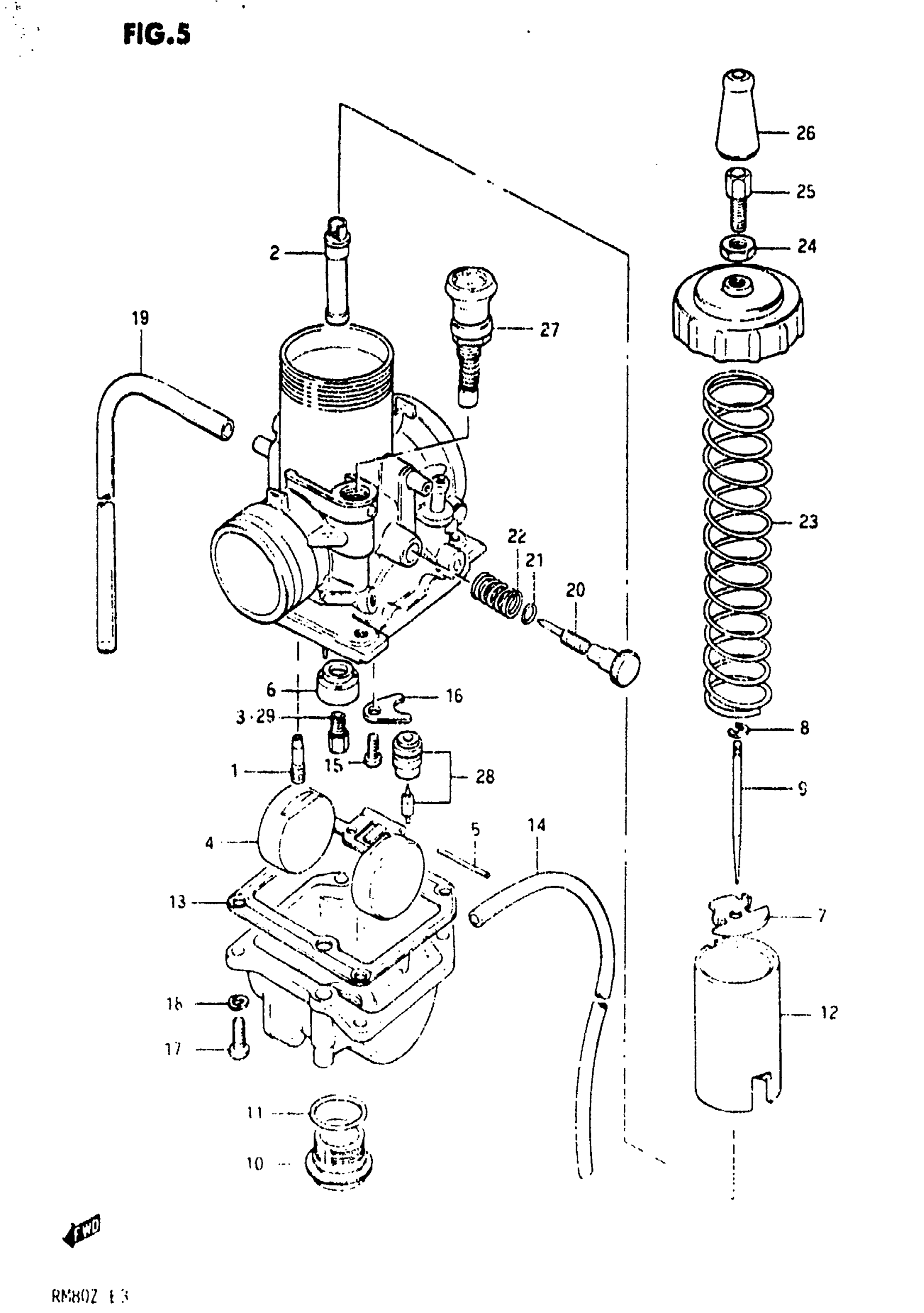

Suzuki RM80 (1982) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 28

13200-20400

Unavailable

1

JET, PILOT (45)

09492-45009

Unavailable

2

JET, NEEDLE (P-4)

09494-00218

Unavailable

3

JET, MAIN This part replaces 09491-28002.

09491-28009

Unavailable

4

FLOAT

13252-29630

$30.98

5

.PIN, FLOAT

13254-01010

$3.56

6

RING

13331-28710

Unavailable

7

PLATE, THROTTLE VALVE

13581-29500

Unavailable

8

CLIP, NEEDLE

13394-10010

$6.15

9

NEEDLE, JET (50P39-2)

13383-46900

$21.45

10

PLUG, DRAIN

13247-46900

Unavailable

11

O RING

13246-29630

$7.12

12

VALVE, THROTTLE (CA:2.0)

13551-20400

Unavailable

13

GASKET, FLOAT CHAMBER

13251-29630

Unavailable

14

HOSE This part replaces 13684-20410.

13684-40A00

$12.72

15

SCREW This part replaces 02112-04088.

02112-04087

$1.15

16

PLATE

13373-39110

$6.54

17

SCREW This part replaces 02112-04168.

02112-0416A

$1.28

18

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.92

19

HOSE (3.5X6.5X600) This part replaces 13684-20400.

09351-35653-600

$4.32

20

ADJUSTER This part replaces 13267-46010.

13267-36A00

$14.00

21

O RING

13278-02340

$1.99

22

SPRING

13268-46010

$6.40

23

SPRING, THROTTLE VALVE

13573-30900

$8.13

24

NUT

13661-16600

$4.57

25

ADJUSTER, CABLE

13577-41612

$6.90

26

CAP

13681-16600

$3.71

27

PLUNGER ASSY, STARTER

13400-20410

Unavailable

28

VALVE ASSY, NEEDLE This part replaces 13370-29500.

13370-02B50

$83.30

29

JET, MAIN (130) | OPT

09491-26003

$10.70

29

JET,MAIN #135 | OPT This part replaces 09491-27005.

09491-27015

Unavailable

29

JET, MAIN (145) | OPT

09491-29002

$11.75

29

JET,MAIN,150 | OPT This part replaces 09491-30003.

09491-30017

Unavailable

29

JET, MAIN (155) | OPT

09491-31005

Unavailable
