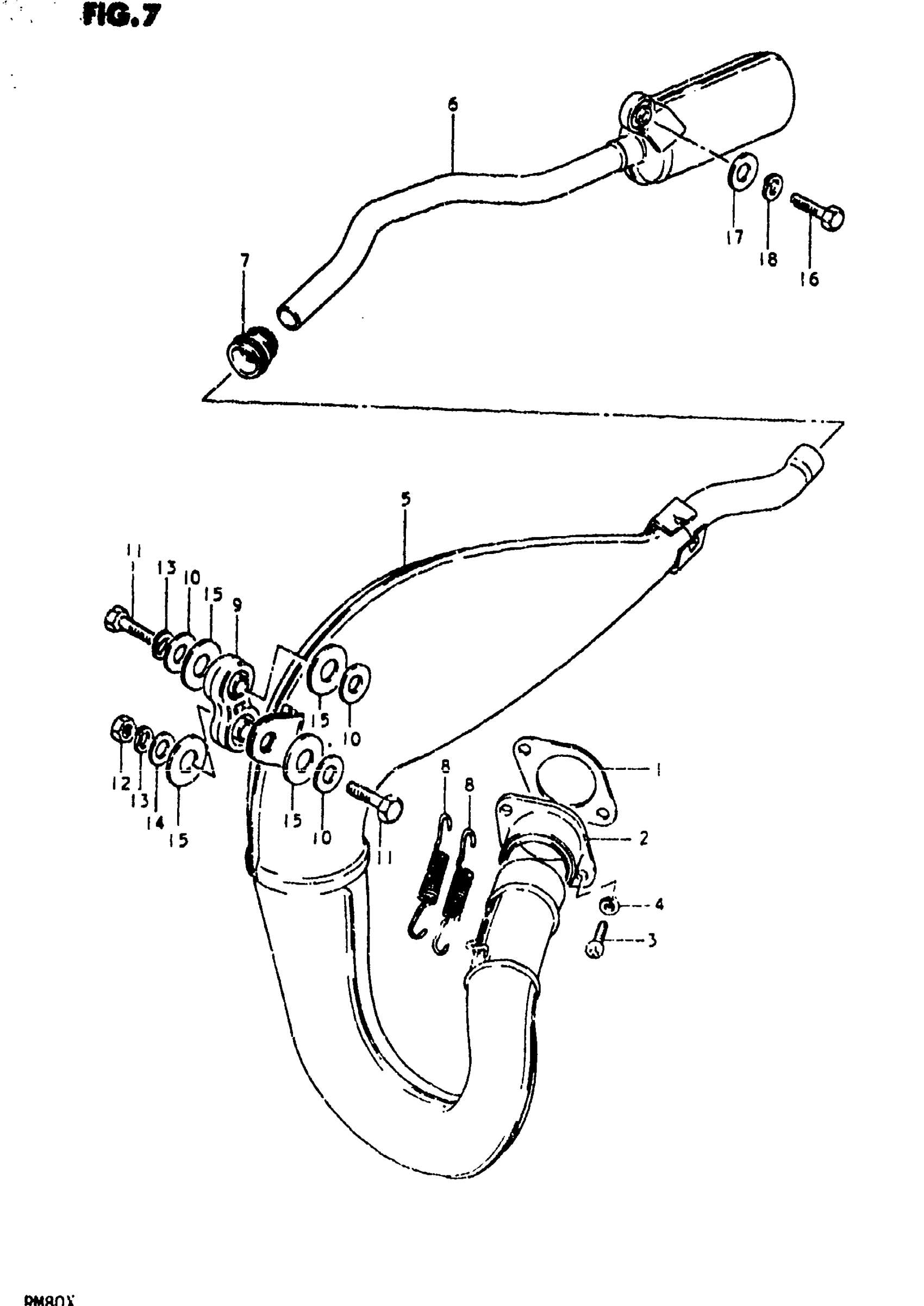

Suzuki RM80 (1981) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST This part replaces 14181-46001.

14181-46001-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-46000

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.46

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

NO DESCRIPTION AVAILABLE This part replaces 14310-20300.

14310-20300-H01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-20300.

14330-20300-H01

Unavailable

7

CONNECTOR, MUFFLER

14771-48002

$12.46

8

SPRING

09443-11002

$2.88

9

DAMPER, MUFFLER

14770-40000

Unavailable

10

WASHER This part replaces 09160-08035.

09160-08130

$2.10

11

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

12

NUT This part replaces 08310-12088.

08310-00087

$1.91

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

14

WASHER This part replaces 08322-11088.

08322-01087

$1.92

15

WASHER

09161-13001

Unavailable

16

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

17

WASHER This part replaces 09160-08035.

09160-08130

$2.10

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89
