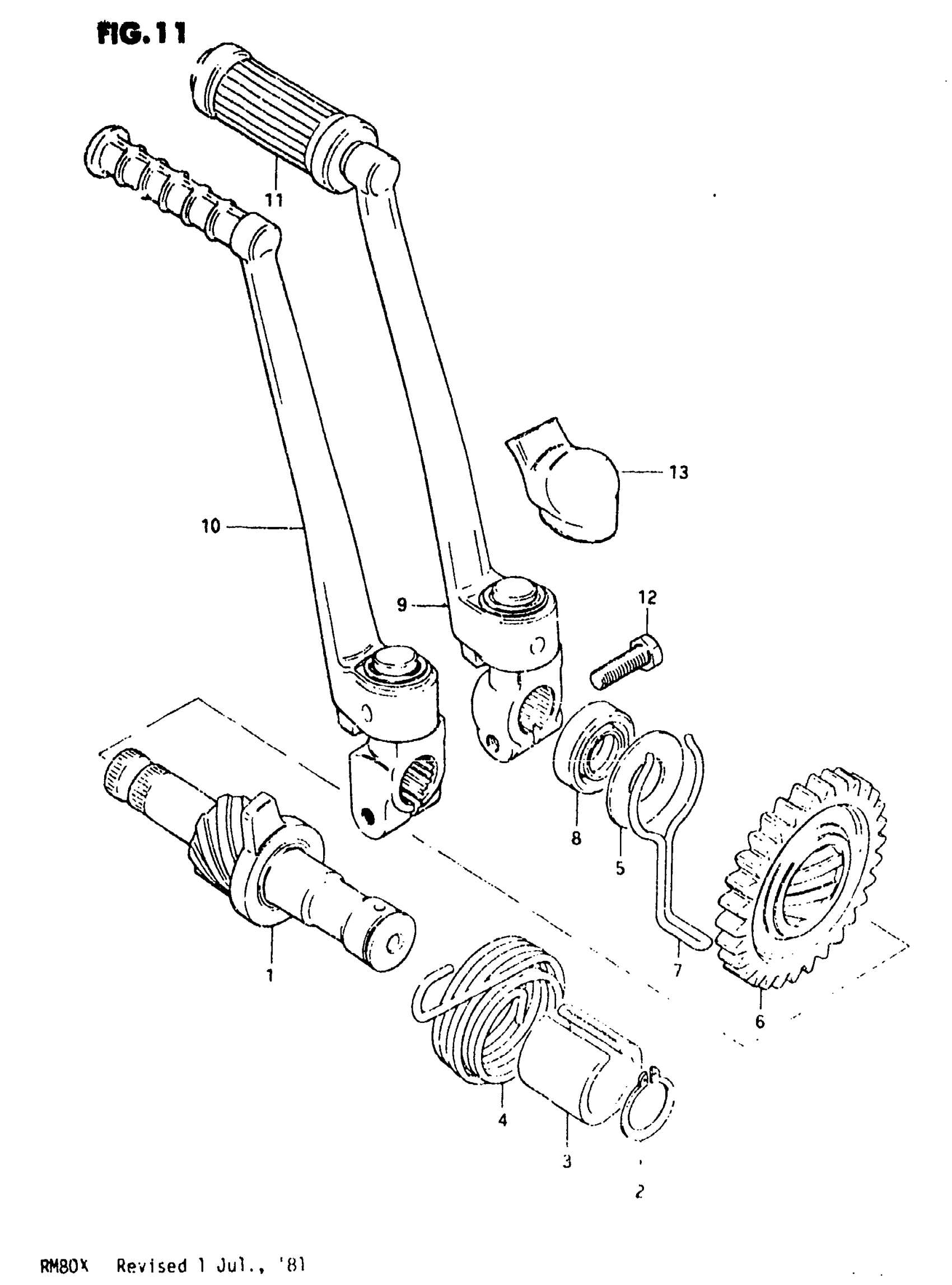

Suzuki RM80 (1981) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-46910

Unavailable

2

CIRCLIP

08331-31169

$1.86

3

GUIDE, SPRING

26221-46000

$9.17

4

SPRING

09448-40001

$6.87

5

WASHER (14X29X1.5) This part replaces 09160-14005.

09160-14046-XC0

$5.18

6

GEAR, KICK DRIVE (NT:30)

26241-46000

$79.35

7

RETAINER SPRING

09384-28001

$2.67

8

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$15.68

9

LEVER ASSY, KICK STARTER | MODEL T This part replaces 26300-46001.

26300-46900

Unavailable

10

LEVER ASSY, KICK STARTER | MODEL X; Includes Item(s) 11

26300-46900

Unavailable

11

RUBBER,KICK STA | MODEL T This part replaces 26352-01000.

26352-01020

$3.11

12

BOLT This part replaces 01107-06208.

01500-06207

$2.06

13

COVER | MODEL X

26341-46900

Unavailable
