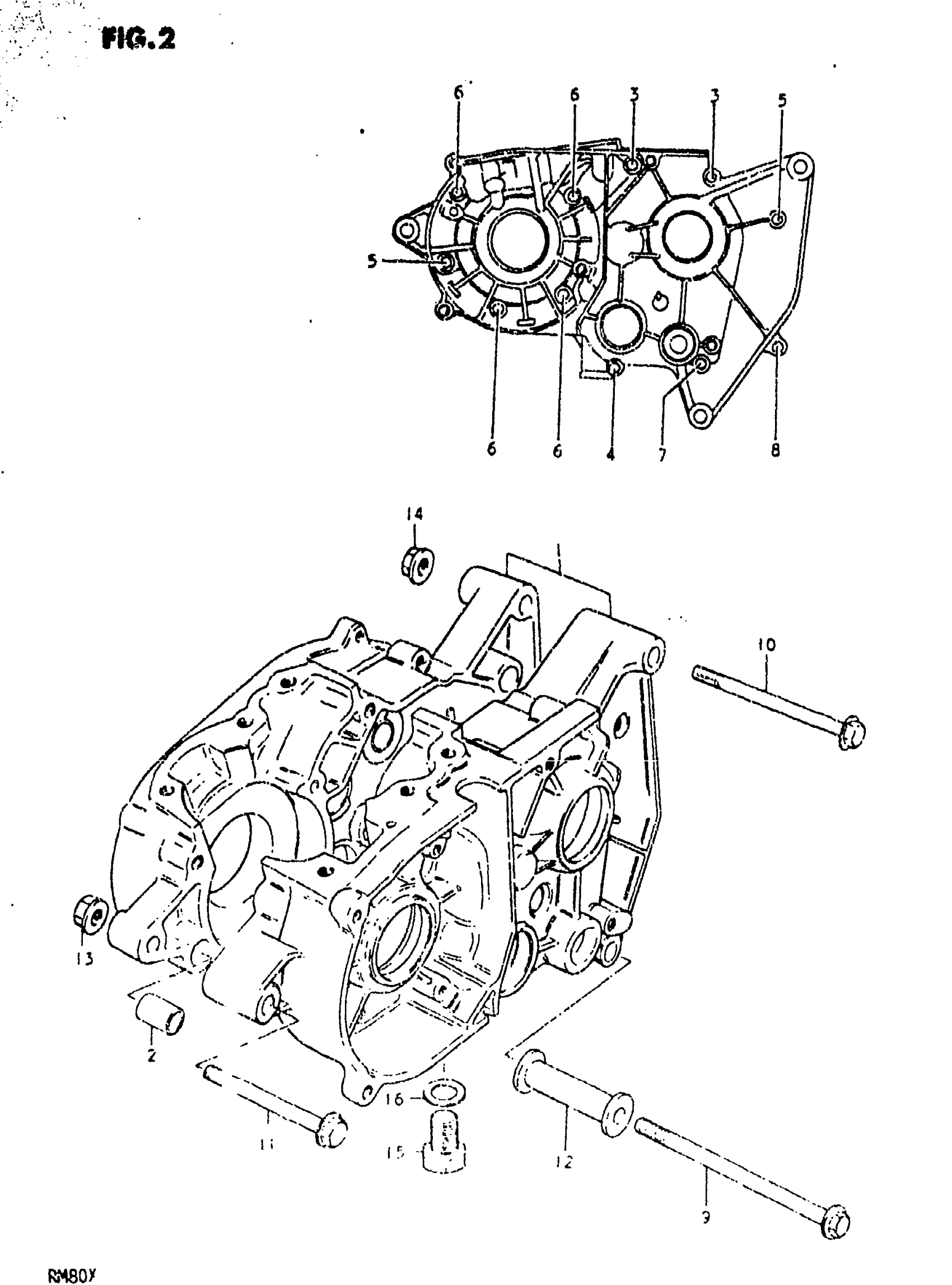

Suzuki RM80 (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL T This part replaces 11301-46830.

11301-46831

Unavailable

1

CRANKCASE SET | MODEL X; Includes Item(s) 2 - 8

11301-46831

Unavailable

2

PIN

04211-11189

$1.86

3

SCREW This part replaces 02112-06758.

02112-06757

$3.37

4

SCREW (6x55)

02112-06557

$2.63

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$2.07

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.83

7

SCREW This part replaces 02112-06358.

02112-06357

$1.82

8

SCREW This part replaces 02112-06258.

02112-06257

$1.68

9

BOLT (10X20) | MODEL T This part replaces 09103-10028.

09103-10290

$4.47

9

BOLT (10x250) | MODEL X

09103-10025

Unavailable

10

BOLT (10X105) This part replaces 09103-10024.

09103-10244

$9.62

11

BOLT This part replaces 01517-08758.

01550-08757

$5.10

12

SPACER

11610-20300

Unavailable

13

NUT This part replaces 08319-31088.

08319-3108A

$2.38

14

NUT This part replaces 08319-31108.

08319-31107

$2.80

15

BOLT This part replaces 01107-10208.

01500-1020B

$3.00

16

GASKET

09168-10002

$1.96
