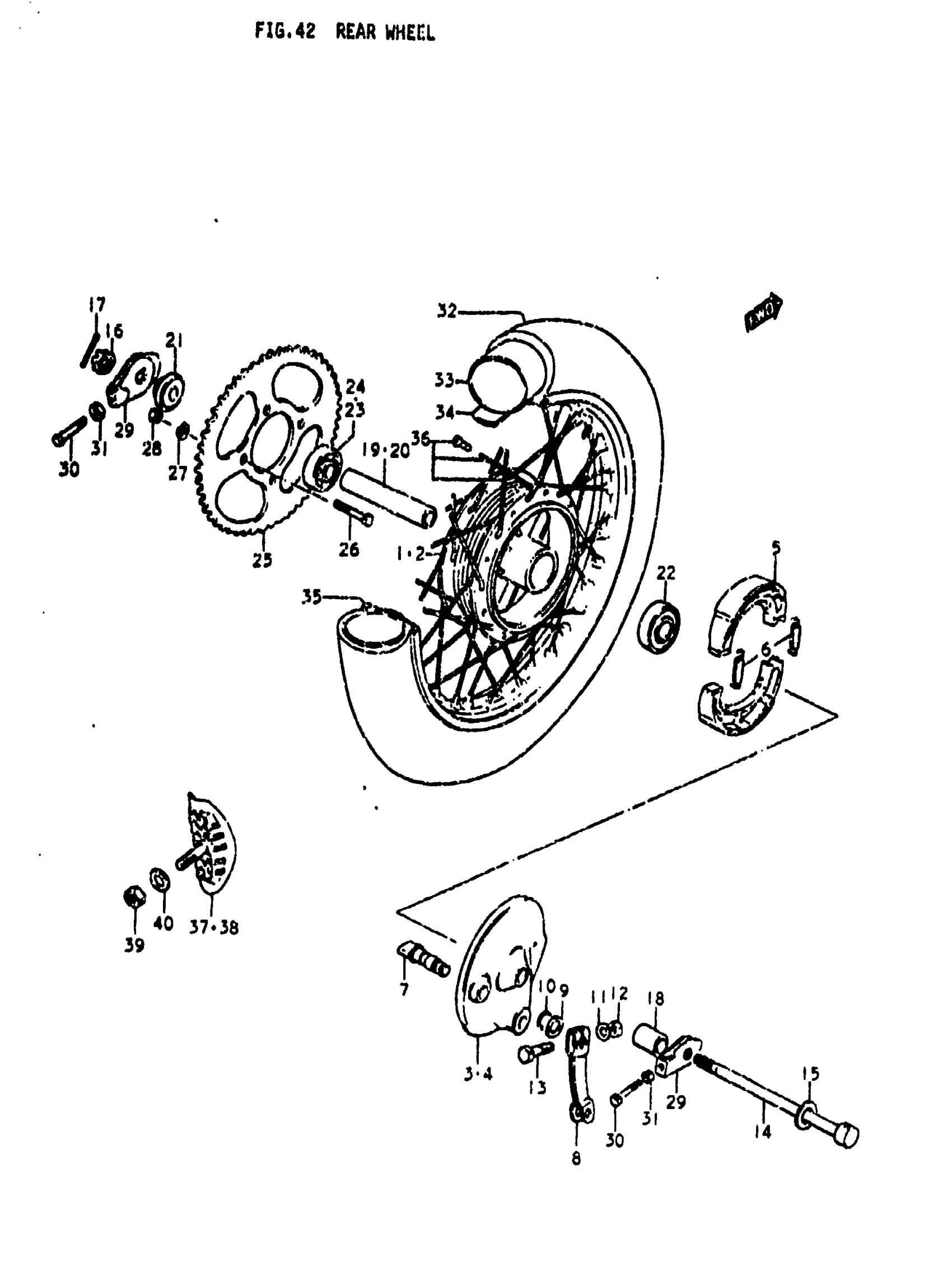

Suzuki RM80 (1979) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB | B

64110-46000

Unavailable

2

DRUM, REAR HUB | C This part replaces 64110-46001.

64100-46811

Unavailable

2

DRUM, REAR HUB | N; INCL.REF.NO.20622~24 This part replaces 64100-46810.

64100-46811

Unavailable

3

PANEL, REAR BRAKE ANCHOR | B This part replaces 64210-46000.

64210-46024

Unavailable

4

PANEL, REAR BRAKE ANCHOR | C,N This part replaces 64210-46022.

64210-46024

Unavailable

5

SHOE/SPRING SET | B,C This part replaces 54410-43000.

54400-35860

$39.58

5

SHOE/SPRING SET | N This part replaces 54410-01005.

54400-35860

$39.58

6

SPRING | B,C,N This part replaces 09443-07001.

09443-07025

$1.68

7

CAM, BRAKE | B This part replaces 54441-29300.

54441-29305

$22.58

7

CAM, BRAKE | C,N This part replaces 54441-29301.

54441-29305

$22.58

8

LEVER,REAR BRAK | B,C,N This part replaces 64451-46100.

64451-46100-A05

$20.20

9

WASHER | B,C,N; 12.5x20x1 This part replaces 09160-14001.

09160-14055

$2.49

10

O RING (D:2.5,ID:13.8) | B,C,N This part replaces 09280-14003.

09280-14011

$4.44

11

WASHER | B,C,N This part replaces 08322-21068.

08322-01067

$1.93

12

.NUT | B,C,N This part replaces 08310-11068.

08310-00067

$1.91

13

BOLT, BRAKE CAM LEVER | B,C,N; 6x31

09100-06078

$2.58

14

AXLE,FRONT | B,C,N This part replaces 64711-43000.

64711-43001

$47.37

15

WASHER | B,C,N This part replaces 08322-11128.

08322-01127

$1.94

16

NUT | B,C,N This part replaces 08314-31128.

08314-3112A

$2.50

17

PIN | B,C,N This part replaces 04111-30308.

04111-3030A

$1.41

18

SPACER,12.1X22X | B,C,N This part replaces 09180-12077.

09180-12077-XC0

Unavailable

19

SPACER, REAR HUB BEARING | B

09180-12078

$12.27

20

SPACER, REAR HUB BEARING | C,N

09180-12082

Unavailable

21

SPACER, REAR AXLE LH | B,C,N

64750-46000

$10.42

22

B1 12X37X12 BEA | B,C,N This part replaces 08143-63010.

08143-6301B

$18.19

23

BEARING, REAR HUB LH | C,N

08113-63010

$21.27

24

BEARING | B,C,N This part replaces 08123-63010.

08123-6301B

$13.11

25

NO DESCRIPTION AVAILABLE | B; NT:46 This part replaces 64511-46020.

64511-39210

Unavailable

25

SPROCKET, REAR | C; NT:42

64511-46030

Unavailable

25

SPROCKET, REAR | N; NT:48

64511-46040

Unavailable

26

BOLT,STUD | B,C,N This part replaces 01421-10208.

01421-1020A

$3.17

27

LOCK WASHER | B,C,N This part replaces 08321-21108.

08321-01107

$1.89

28

NUT | B,C,N This part replaces 08319-21108.

09159-10027

$2.92

29

ADJUSTER, CHAIN | B,C,N

61410-26000

$43.83

30

BOLT | B,C,N

09104-06002

Unavailable

31

.NUT | B,C,N This part replaces 08310-11068.

08310-00067

$1.91

32

TIRE | B,C This part replaces 65100-46010.

65100-46900

Unavailable

32

TIRE | N

65100-46900

Unavailable

33

TUBE ASSY, INNER | B,C,N This part replaces 55200-24010.

65200-02B40

Unavailable

34

PROTECTOR,INNER | B,C,N This part replaces 55261-24010.

55261-24020

$3.90

35

RIM, WHEEL | B,C This part replaces 65311-46020.

55311-24020

Unavailable

35

NO DESCRIPTION AVAILABLE | N This part replaces 65311-46900.

55311-09D00

Unavailable

36

SPOKE ASSY, REAR | B,C,N This part replaces 65300-24807.

65320-20300

Unavailable

37

STOPPER, BEAD | B,C

65270-28600

$61.78

38

STOPPER, BEAD | N This part replaces 65270-46900.

65270-43D00

$66.32

39

NUT | B,C,N This part replaces 08310-12088.

08310-00087

$1.91

40

WASHER | B,C,N This part replaces 08322-11088.

08322-01087

$1.92
