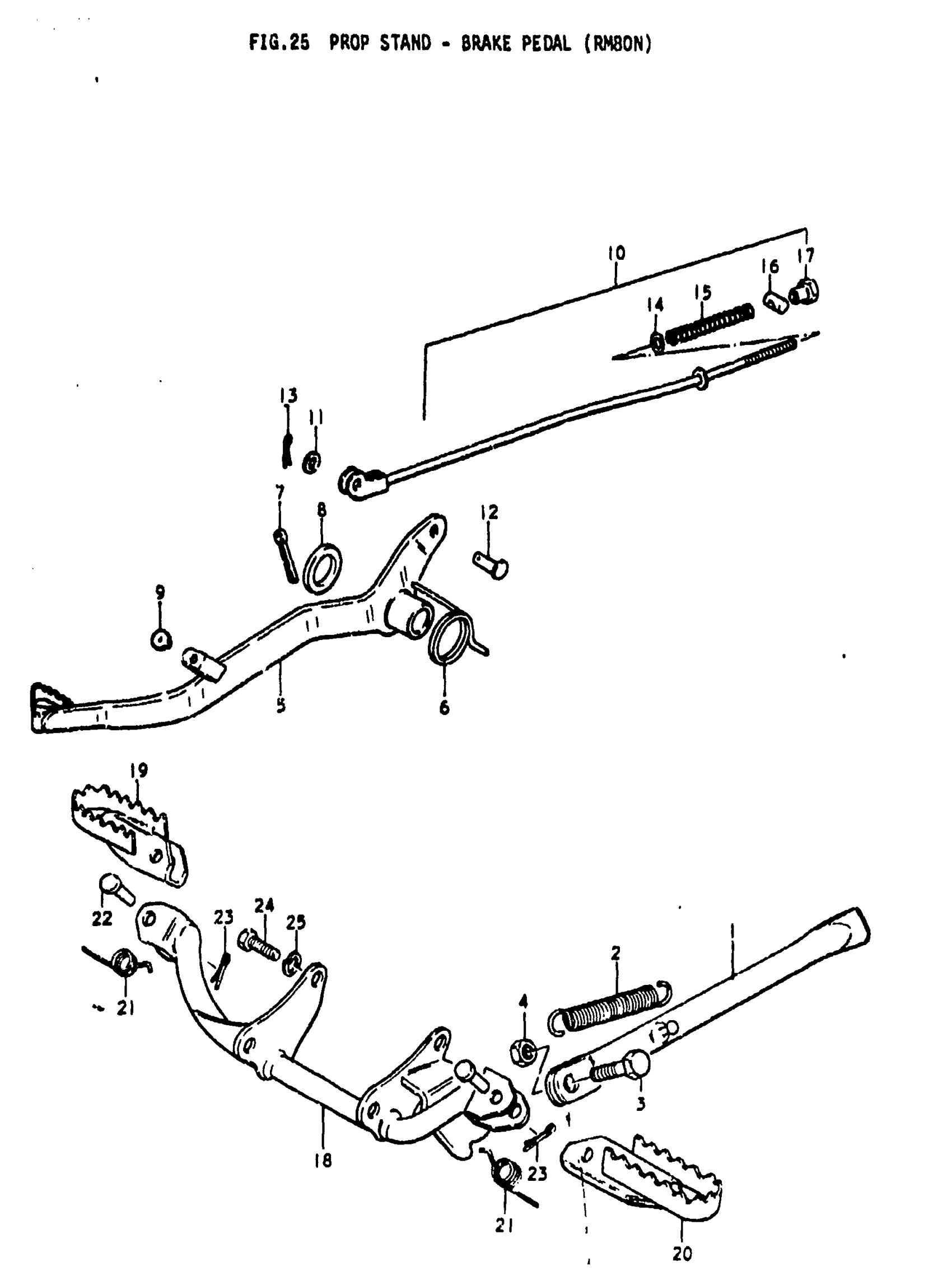

Suzuki RM80 (1979) PROP STAND - BRAKE PEDAL (RM80N) Diagram

#

Description
Price

1

STAND, PROP | L:275

42310-46910

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$2.88

3

BOLT This part replaces 09100-10007.

09100-10287

$3.30

4

NUT This part replaces 08310-22108.

08310-00107

$2.25

5

PEDAL, BRAKE

43110-46910

Unavailable

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

7

PIN This part replaces 04111-30308.

04111-3030A

$1.41

8

WASHER

09160-15002

$1.76

9

STOP, BRAKE PEDAL

43155-30500

Unavailable

10

ROD ASSY, REAR BRAKE | Includes Item(s) 11 - 17

43300-46910

Unavailable

11

WASHER This part replaces 08322-21068.

08322-01067

$1.93

12

PIN

09200-06013

$2.05

13

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

14

WASHER This part replaces 08322-21068.

08322-01067

$1.93

15

SPRING

09440-09004

$2.06

16

PIN

09209-11002

$2.17

17

.NUT This part replaces 09150-06001.

09150-06010

$2.88

18

BAR, FRONT FOOTREST

43510-46910

Unavailable

19

FOOTREST, RH (BLACK) This part replaces 43550-46000.

43550-46000-019

$22.88

20

FOOTREST, LH (BLACK) This part replaces 43560-46000.

43560-46000-019

$23.67

21

SPRING

09448-14012

$2.82

22

PIN

09200-08002

$2.02

23

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.25

24

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.57

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89
