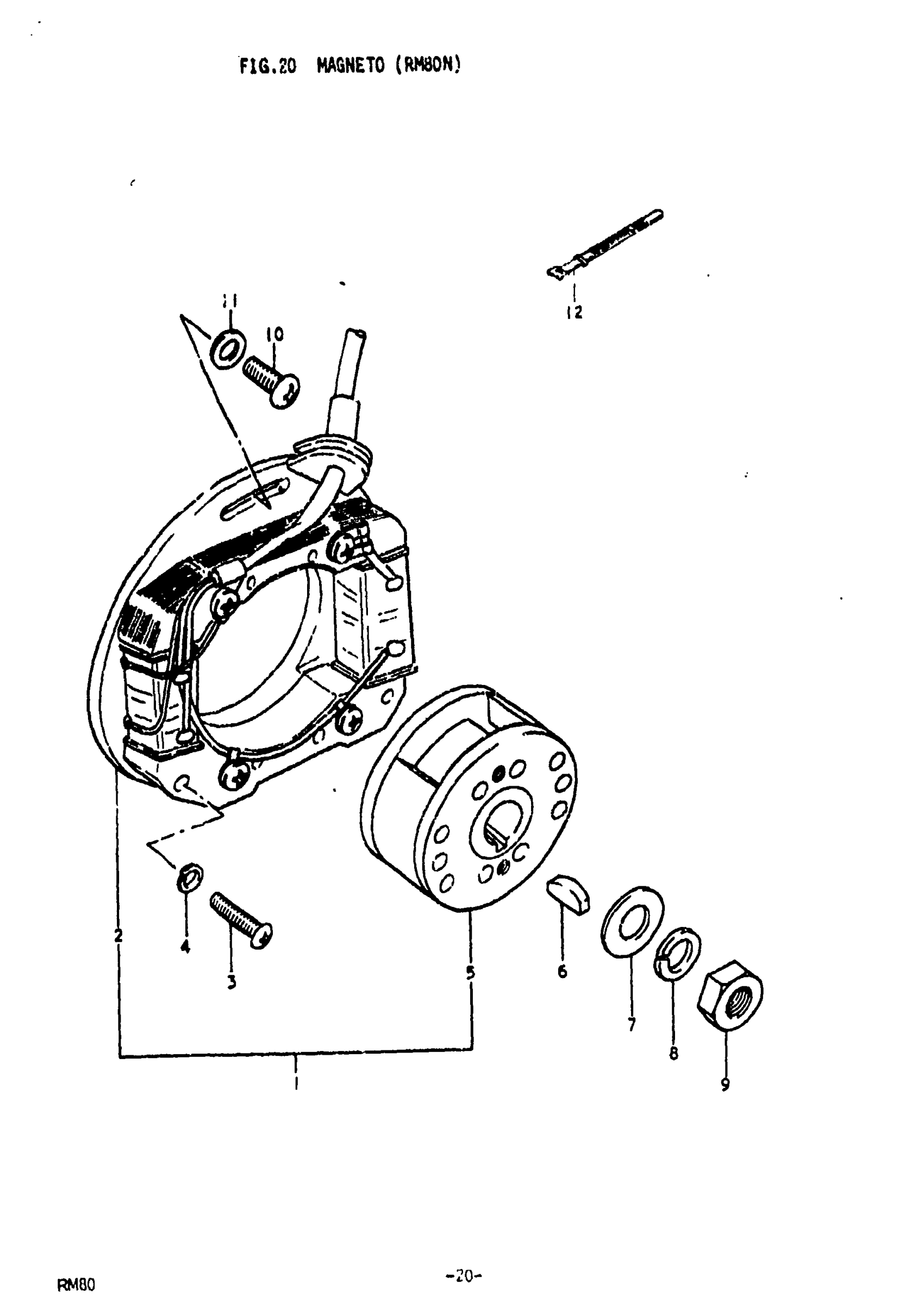

Suzuki RM80 (1979) MAGNETO (RM80N) Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 5 This part replaces 32100-46920.

32100-46921

Unavailable

2

STATOR ASSY This part replaces 32101-46920.

32101-40221

Unavailable

3

SCREW This part replaces 02112-05208.

02112-05207

$2.03

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

5

ROTOR

32102-46920

Unavailable

6

KEY This part replaces 08341-31049.

09420-04008

$3.18

7

WASHER This part replaces 08322-21108.

08322-01107

$1.95

8

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

9

NUT This part replaces 09140-10003.

09140-10041

$2.21

10

SCREW This part replaces 02112-06168.

02112-06167

$1.46

11

WASHER This part replaces 08322-21068.

08322-01067

$1.93

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
