1979 Suzuki RM80 Fuel Tank (RM80B Diagram

← All diagrams

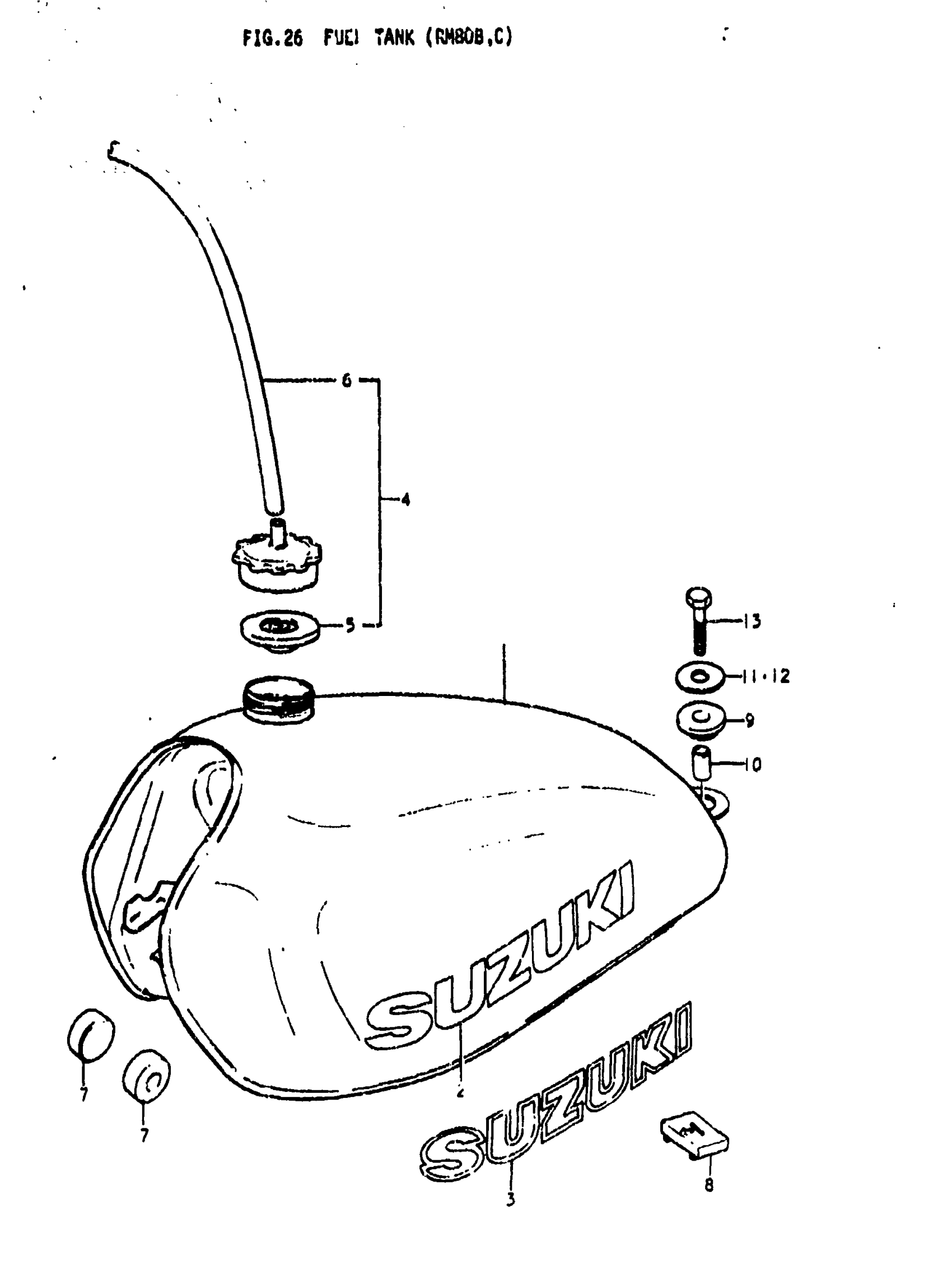

Find the part on the Fuel Tank (RM80B diagram for your 1979 Suzuki RM80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki RM80 Fuel Tank (RM80B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | B,C; Includes Item(s) 2 - 3

44110-46001-163

1
Out of stock

2

EMBLEM (BLACK) | B This part replaces 68111-28610-019.

68111-43400-019

2
Out of stock

3

EMBLEM | C

68111-46000-64D

2
Out of stock

4

CAP ASSY, FUEL TANK | B,C; Includes Item(s) 5 - 6

44200-28300

1
Out of stock

5

GASKET | B,C

44248-28300

1
Out of stock

6

HOSE (5X8X2000) | B,C This part replaces 09344-05014.

09351-50803-00B

1
Out of stock

7

CUSHION, FRONT | B,C

09329-10005

2
Out of stock

8

CUSHION, REAR NO. 1 | B,C

44541-46000

1
Out of stock

9

CUSHION, REAR NO. 2 | B,C

09320-12013

1
Out of stock

10

SPACER,8.5X12X1 | B,C This part replaces 09180-08048.

09180-08302

1
Out of stock

11

WASHER | B This part replaces 09160-08035.

09160-08130

1
Out of stock

12

WASHER, EXHAUST SUPPORT | C This part replaces 09160-08002.

09160-08135

1
Out of stock

13

BOLT | B,C This part replaces 01107-08308.

01500-08307

1
Out of stock
