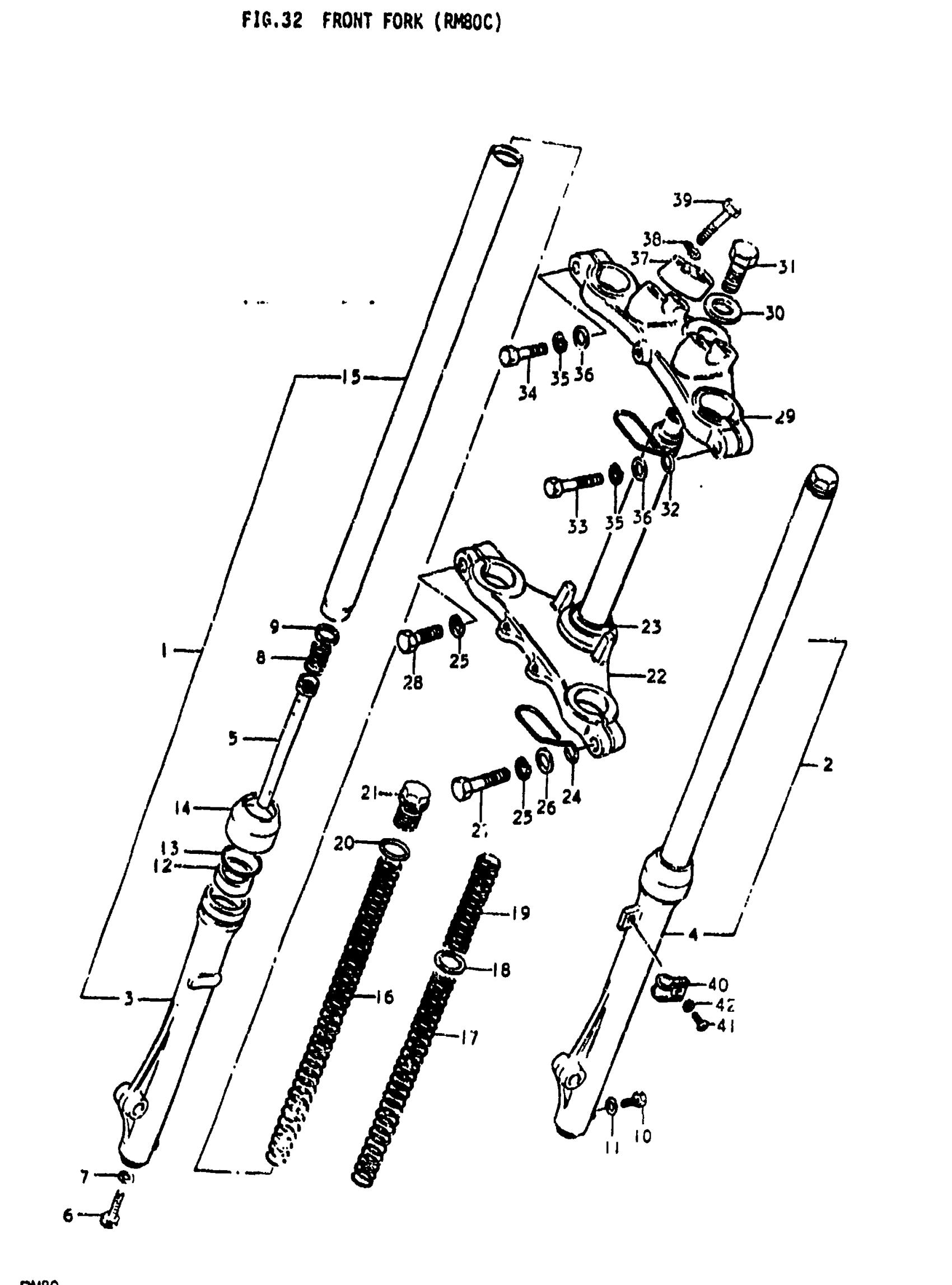

Suzuki RM80 (1979) FRONT FORK (RM80C) Diagram

#

Description
Price

0

FORK ASSY, FRONT This part replaces 51100-46040-291.

51100-46041-291

Unavailable

0

FORK ASSY, FRONT | F.NO.29768~; Includes Item(s) 1 - 42

51100-46041-291

Unavailable

1

FRONT CUSHION ASSY, RH

51103-46040

Unavailable

2

FRONT CUSHION ASSY, LH

51104-46040

Unavailable

3

OUTER TUBE, RH

51131-46040

Unavailable

4

OUTER TUBE, LH

51141-46040

Unavailable

5

PIPE, SEAT

51146-46040

Unavailable

6

BOLT This part replaces 51147-31030.

51147-48130

$4.15

7

O RING This part replaces 51148-31030.

51148-36011

$3.41

8

SPRING

51177-46100

Unavailable

9

RING, PISTON

51196-46100

$9.50

10

BOLT This part replaces 01111-06087.

09100-06011

$1.58

11

WASHER

51183-31030

$3.71

12

OIL SEAL, FRONT This part replaces 51153-46040.

51153-13200

Unavailable

13

RING, OIL SEAL STOPPER

51156-48130

$6.00

14

DUST SEAL This part replaces 51571-46040.

51571-13200

Unavailable

15

INNER TUBE

51110-46040

Unavailable

16

SPRING

51171-46040

Unavailable

17

SPRING (A) | F.NO.29768~

51171-46050

Unavailable

18

JOINT, SPRING | F.NO.29768~

51192-46100

$5.10

19

SPRING (B) | F.NO.29768~

51184-46040

Unavailable

20

O RING (D:2.4,ID:17.8) This part replaces 51181-46030.

09280-18004

$4.81

21

BOLT, FORK

51351-46030

Unavailable

22

STEM, STEERING

51410-46040

Unavailable

23

RACE, STEERING OUTER LOWER

51621-33001

$18.33

24

CLIP

51455-46030

Unavailable

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

26

WASHER This part replaces 08322-21108.

08322-01107

$1.95

27

BOLT, HOLDER This part replaces 51451-27431.

51451-12FA0

$4.47

28

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$4.03

29

STEERING STEM HEAD

51311-46040

Unavailable

30

WASHER

51356-46030

Unavailable

31

BOLT

51352-46030

$10.35

32

CLIP

51455-46030

Unavailable

33

BOLT This part replaces 01107-08408.

01500-0840A

$2.73

34

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

36

WASHER This part replaces 08322-21088.

08322-01087

$1.92

37

HOLDER, HANDLE

56211-27430

Unavailable

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

39

BOLT This part replaces 01107-08358.

01500-0835B

$2.82

40

CLIP

51452-46040

$7.43

41

SCREW This part replaces 02112-04168.

02112-0416A

$1.28

42

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.92
