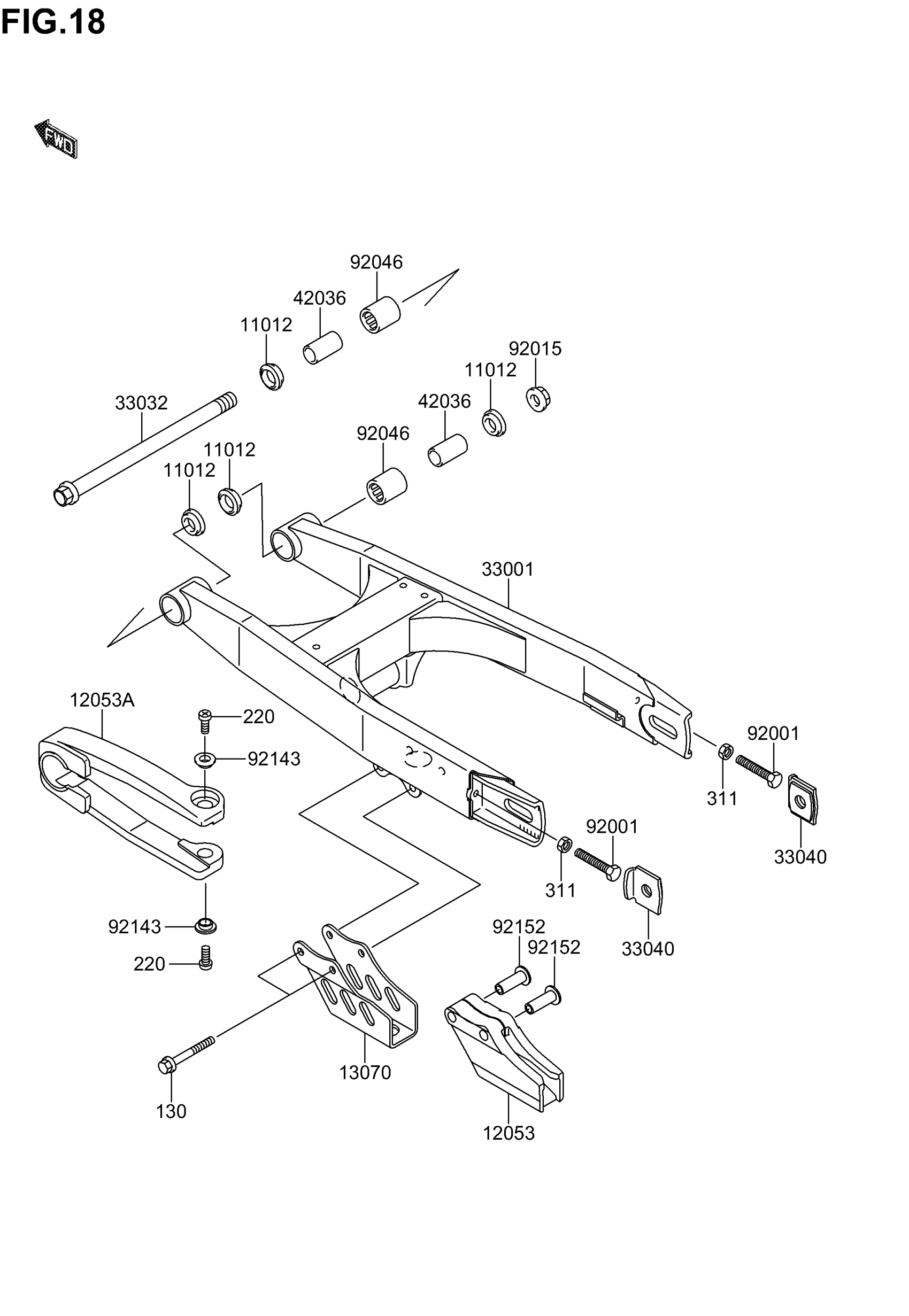

Suzuki RM65 (2005) SWINGARM Diagram

#

Description
Price

11012

CAP

K1101-21263

Unavailable

12053

GUIDE-CHAIN,RR

K1205-31436

$31.07

12053A

GUIDE-CHAIN,FR

K1205-31456

$58.40

13070

GUIDE,CHAIN

K1307-01347

$22.57

33001

ARM-COMP-SWING,SILVER

KK330-01163-4CE

Unavailable

33032

SHAFT-SWING ARM

K3303-21194

Unavailable

33040

ADJUSTER-CHAIN

K3304-01188

Unavailable

42036

SLEEVE,SWING ARM,L=34

K4203-61067

Unavailable

92001

BOLT,6X39

K9200-11463

Unavailable

92015

NUT,FLANGED,12MM

K9201-51433

Unavailable

92046

BEARING-NEEDLE

K9204-61046

Unavailable

92143

COLLAR

K9214-31676

$5.13

92152

COLLAR

K9215-21215

$5.70

130

BOLT,FLANGED,6X This part replaces KK130-G0650.

K130B-A0650

Unavailable

220

SCREW-PAN-CROS, This part replaces KK220-B0508.

K220A-A0508

$1.52

311

NUT,HEX,6MM This part replaces KK311-B0600.

K311A-A0600

$1.52
