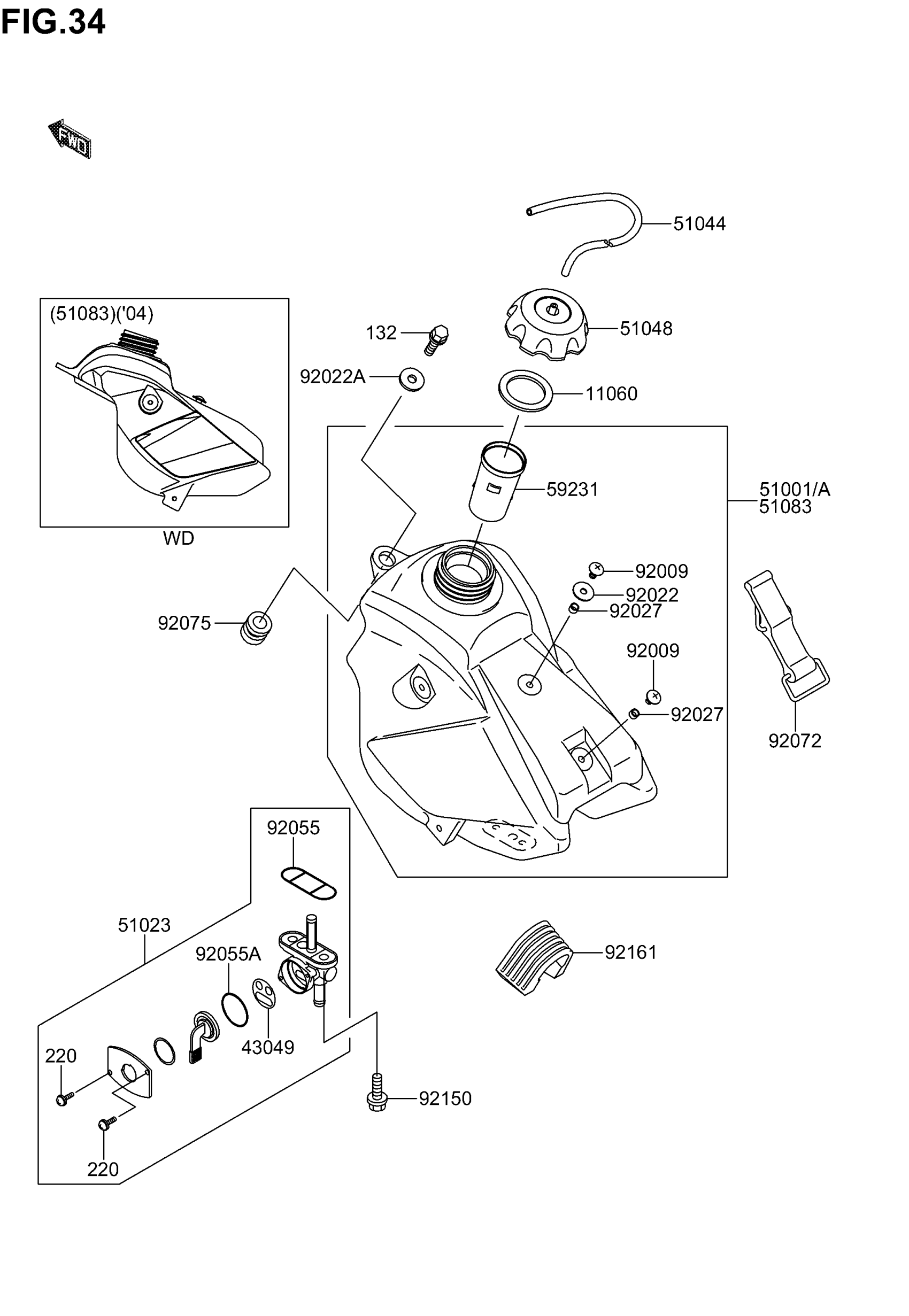

Suzuki RM65 (2005) FUEL TANK Diagram

GASKET,FUEL TANK CAP

K1106-01340

$6.67

PACKING,TAP VALVE

K4304-91091

Unavailable

TANK-COMP-FUEL,C.YELLOW | K5

K5100-11676-267

Unavailable

TANK-COMP-FUEL,F.BLACK | K3

KK510-01167-66Z

Unavailable

TAP ASSY,FUEL This part replaces K5102-31339.

K5102-30024

Unavailable

TUBE-ASSY

K5104-41185

Unavailable

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

$53.07

TANK-COMP-FUEL,C.YELLOW | K4

K5108-35100-267

Unavailable

FILLER

K5923-11096

$5.22

SCREW,6X10

K9200-91530

Unavailable

WASHER,6.5X20X1 This part replaces KK920-22125.

K9220-00283

$1.43

WASHER,6.5X24X2

K9202-21690

$3.43

COLLAR,6.2X7.8X5

K9202-72096

Unavailable

RING-O,FUEL TAP PACKING

K9205-51348

Unavailable

RING-O,TAP LEVER

K9205-51419

$4.52

BAND,FUEL TANK

K9207-21229

$7.87

DAMPER

K9207-51787

Unavailable

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.55

DAMPER,FUEL TANK,RR

K9216-11077

Unavailable

BOLT-FLANGED-SM This part replaces KK132-G0614.

K132B-A0614

Unavailable

SCREW-PAN-CROS

KK220-B0308

Unavailable
