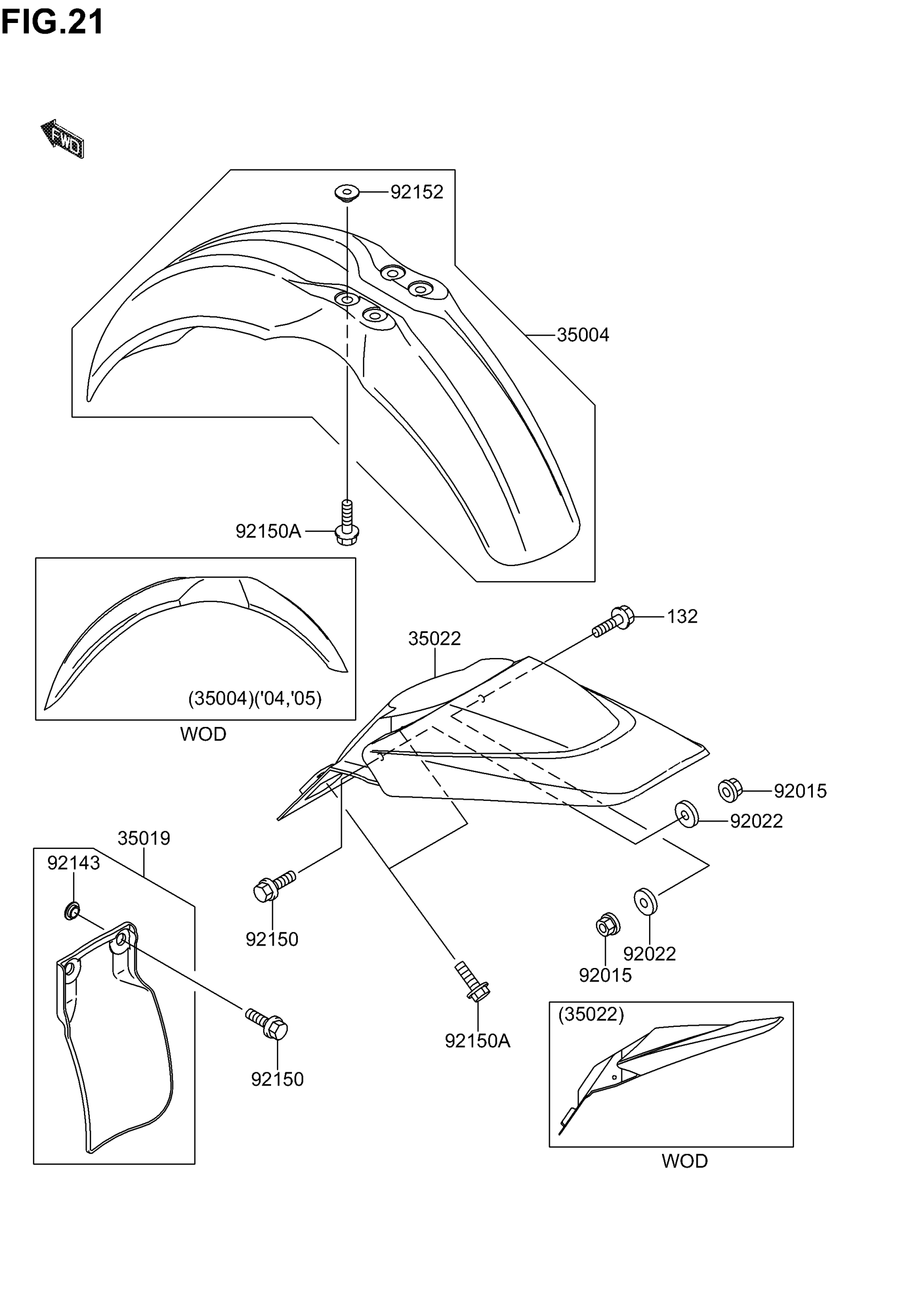

Suzuki RM65 (2005) FENDER Diagram

FENDER-FRONT,C.YELLOW

K3500-41416-267

Unavailable

FLAP,REAR FENDER,WHITE

KK350-19139-5RZ

$28.75

FENDER-COMP-REAR,C.YELLOW

K3502-21342-267

Unavailable

NUT,FLANGED, 6M This part replaces K9201-51078.

K9221-00630

$2.38

WASHER,6.5X20X1 This part replaces KK920-22125.

K9220-00283

$1.43

COLLAR

K9214-31196

$4.00

BOLT,FLANGED,6X16

K9215-01506

$2.32

BOLT,6X20

K9215-01892

$3.35

COLLAR

K9215-21255

$3.48

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$2.15
