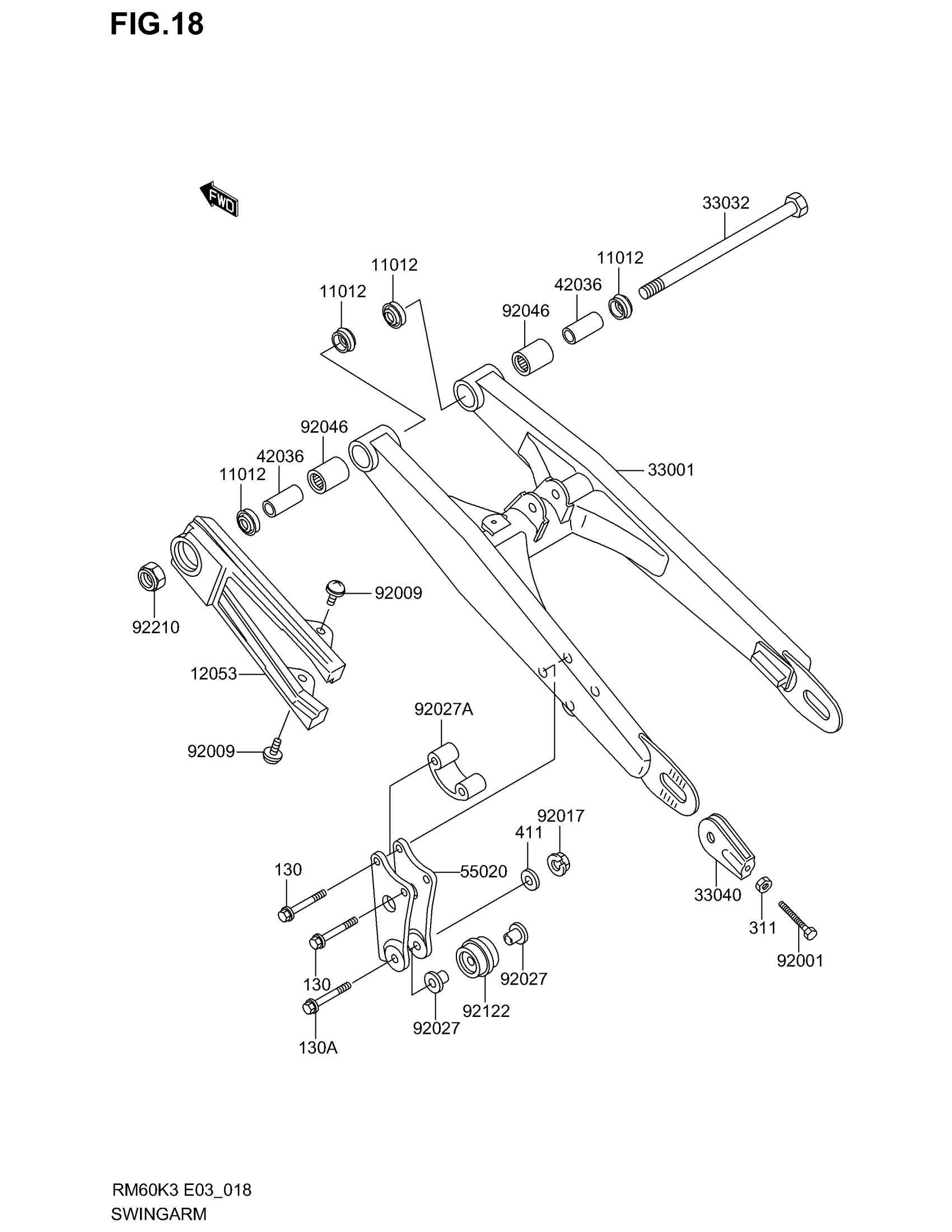

Suzuki RM60 (2003) SWINGARM Diagram

#

Description
Price

11012

CAP

K1101-21263

Unavailable

12053

GUIDE-CHAIN,FR

K1205-31410

Unavailable

33001

ARM-COMP-SWING,SILVER NO.25

KK330-01130-7CE

Unavailable

33032

SHAFT-SWING ARM,PIVOT

K3303-21031

Unavailable

33040

ADJUSTER-CHAIN

K3304-01055

Unavailable

42036

SLEEVE,SWING ARM,L=34

K4203-61067

Unavailable

55020

GUARD,CHAIN,RR

K5502-01163

Unavailable

92001

BOLT,6X39

K9200-11463

Unavailable

92009

SCREW,6X10,WHITE

K9200-91286

Unavailable

92017

NUT,LOCK,6MM

KK920-17014

Unavailable

92027

COLLAR

K9202-71183

Unavailable

92027A

COLLAR,CHAIN GUIDE

K9202-71495

Unavailable

92046

BEARING-NEEDLE

K9204-61046

Unavailable

92122

ROLLER,CHAIN GUIDE

K9212-21030

Unavailable

92210

NUT,LOCK,12MM

K9221-01249

Unavailable

130

BOLT-FLANGED,6X45

KK130-G0645

Unavailable

130A

BOLT,FLANGED,6X This part replaces KK130-G0650.

K130B-A0650

Unavailable

311

NUT,HEX,6MM This part replaces KK311-B0600.

K311A-A0600

Unavailable

411

NO DESCRIPTION AVAILABLE This part replaces KK411-B0600.

K411A-A0600

Unavailable
