2003 Suzuki RM60 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2003 Suzuki RM60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

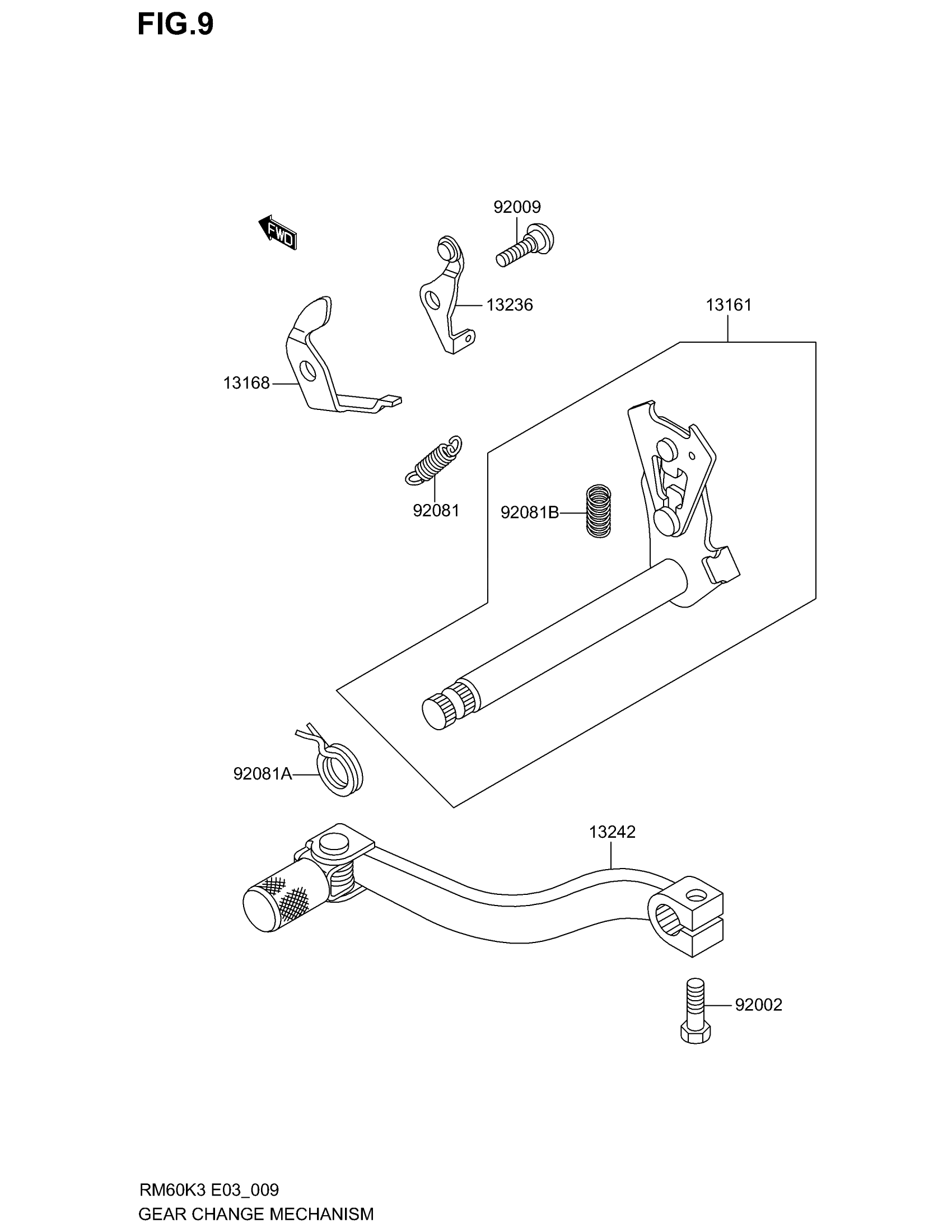

2003 Suzuki RM60 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

K1316-11281

1
Out of stock

13168

LEVER,GEAR SET

K1316-81069

1
Out of stock

13236

LEVER-COMP,CHANGE DRUM

K1323-61026

1
Out of stock

13242

LEVER-ASSY-CHANGE,PEDAL

K1324-21210

1
Out of stock

92002

BOLT,6X20

K9200-21237

1
Out of stock

92009

SCREW,CHANGE LEVER

K9200-91102

1
Out of stock

92081

SPRING,CHANGE LEVER

K9208-11109

1
Out of stock

92081A

SPRING,TENSION

K9208-11129

1
Out of stock

92081B

SPRING,CHANGE LEVER

K9208-11275

1
Out of stock
← Gear Change Drum/shift Fork Transmission →

More Drive & Transmission diagrams
