Partiron

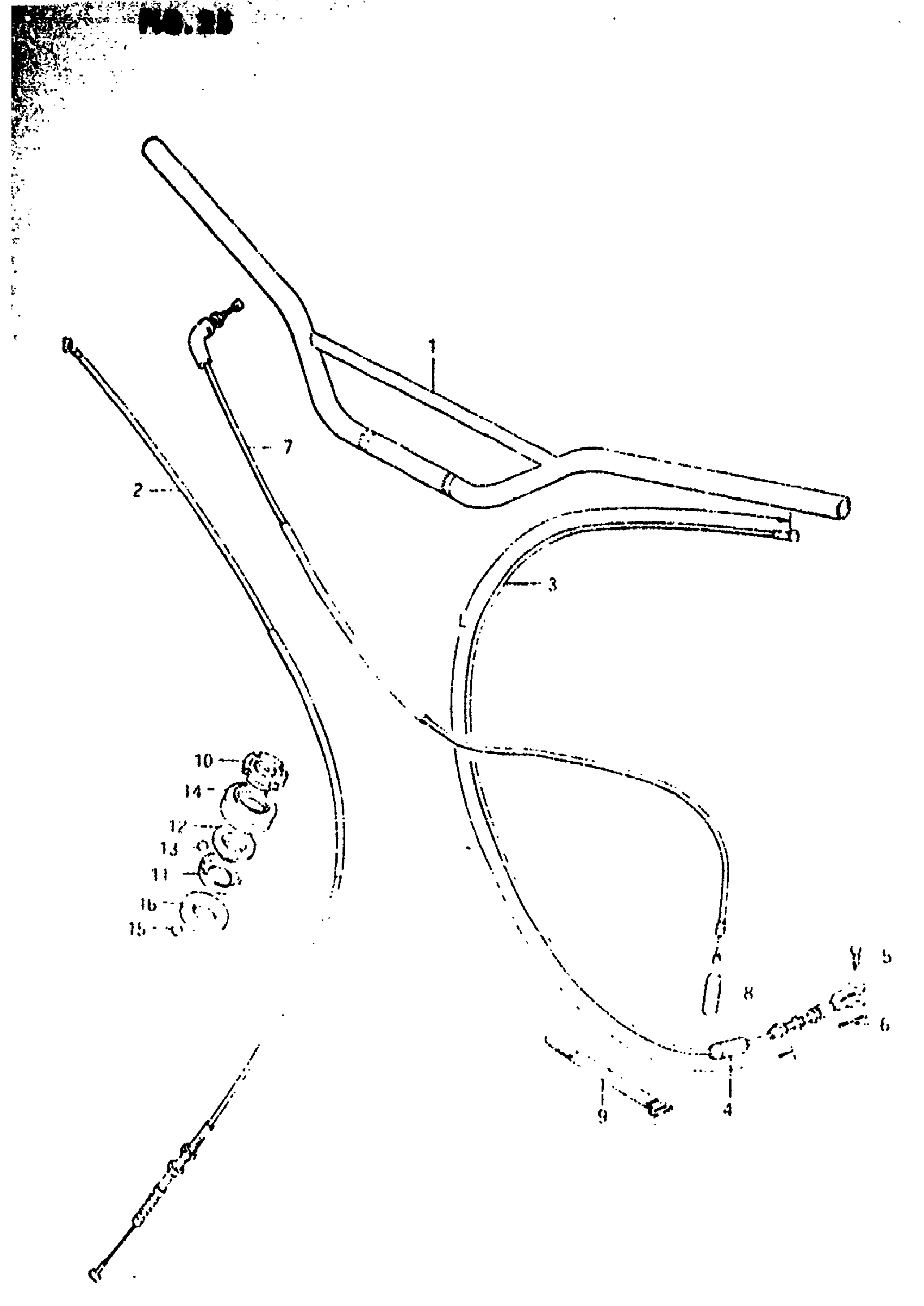

Suzuki RM60 (1983) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL Z This part replaces 56110-46410-08C.

56110-46402-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL D This part replaces 56110-46410-291.

56110-46402-291

Unavailable

2

CABLE, BRAKE

58110-46610

Unavailable

3

CABLE ASSY, CLUTCH (L:920) | Includes Item(s) 4

58200-46630

Unavailable

4

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

5

PIN, CLUTCH CABLE

09200-06004

$1.68

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

7

CABLE,THROTTLE This part replaces 58300-46611.

58300-46X08

Unavailable

8

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.50

9

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

10

NUT, STEERING STEM

51631-28000

$19.60

11

RACE,STEERING INNER UPPER

51611-20002

$13.50

12

RACE,STEERING OUTER UPPER

51621-28000

$13.50

13

STEEL BALL, UPPER

06111-06003

$1.24

14

DUST SEAL,STEERING UPPER

51643-25001

$4.17

15

STEEL BALL, LOWER

06111-08003

$1.30

16

RACE, INNER LOWER

51611-33002

$13.02
