1983 Suzuki RM60 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1983 Suzuki RM60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

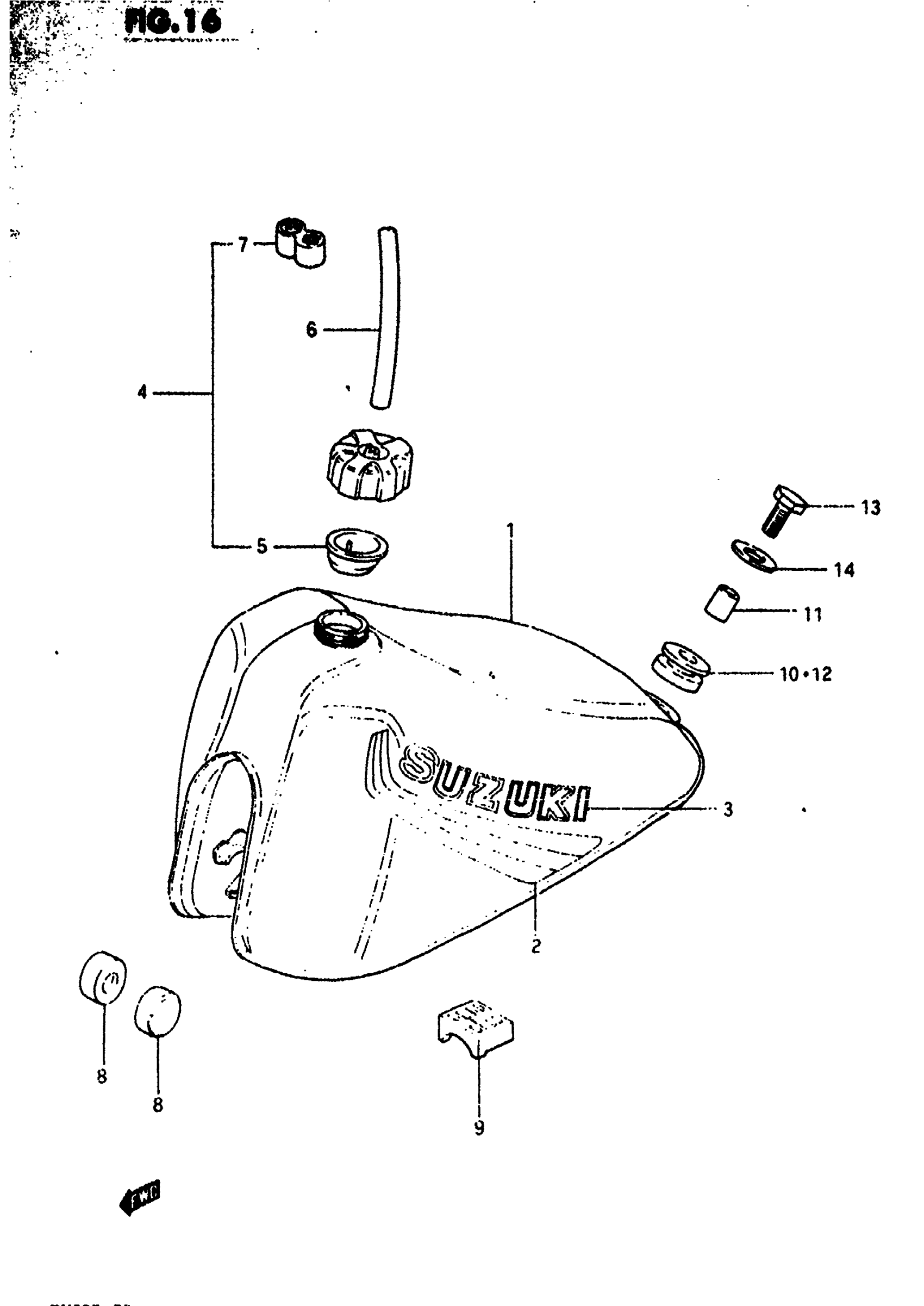

1983 Suzuki RM60 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 3

44100-46630-163

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 68110-46620-67H.

68110-46621-07H

1
Out of stock

3

EMBLEM FUEL TAN This part replaces 68111-46610-019.

68111-46700-019

2
Out of stock

4

CAP ASSY, FUEL TANK | Includes Item(s) 5 - 7

44200-46900

1
Out of stock

5

GASKET

44248-46900

1
Out of stock

6

1

$9.88

In stock

7

CLAMP

44486-32101

1

$3.74

In stock

8

CUSHION, FRONT

09329-10005

2

$2.57

In stock

9

CUSHION, REAR NO. 1

44541-46000

1
Out of stock

10

CUSHION, REAR NO. 2

09320-12013

1

$2.92

In stock

11

1

$2.78

In stock

12

CUSHION, REAR NO. 3

09320-12020

1
Out of stock

13

1

$2.73

In stock

14

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock
