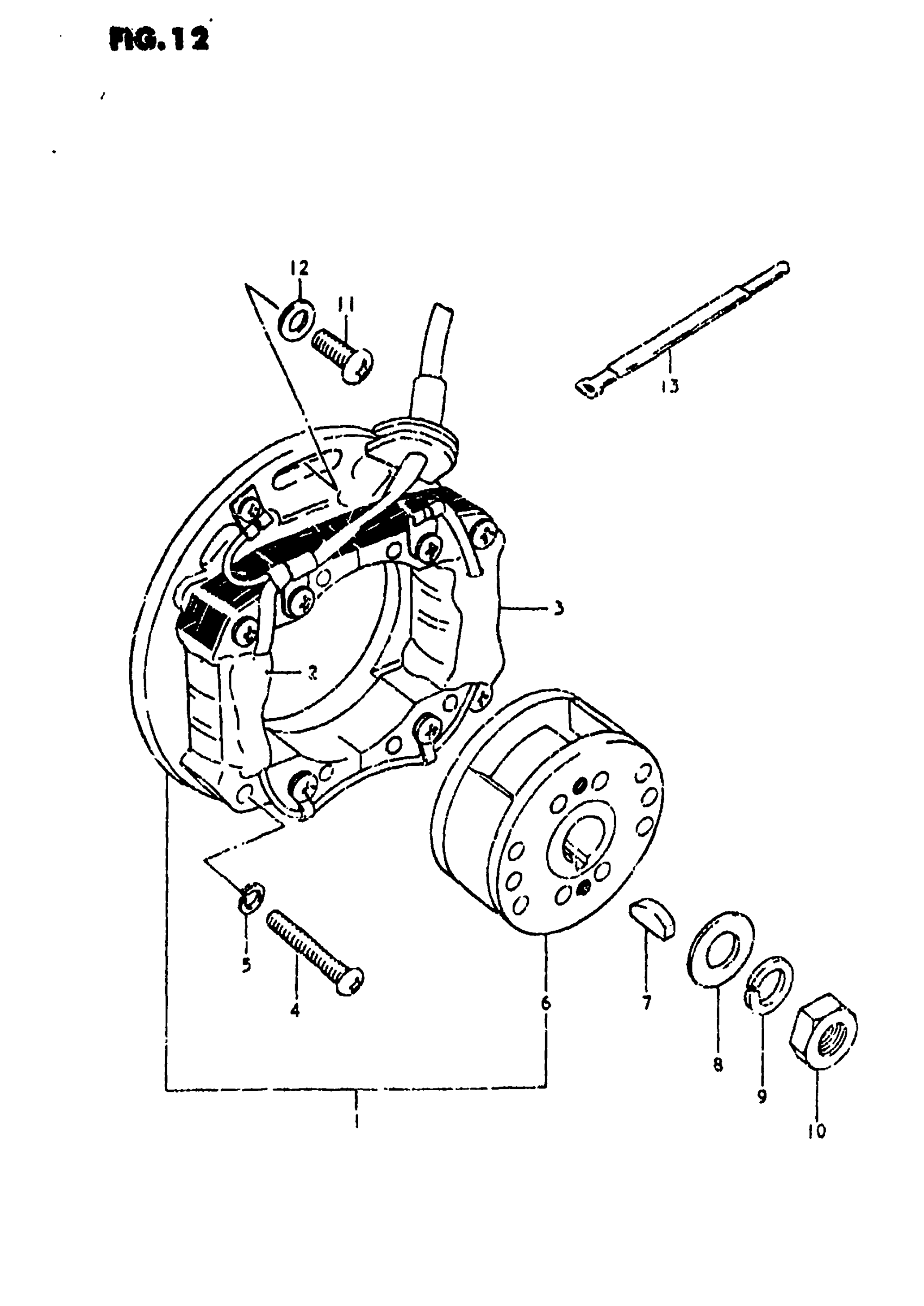

Suzuki RM60 (1981) MAGNETO (RM60N) Diagram

#

Description
Price

1

MAGNETO ASSY | Includes Item(s) 2 - 6

32100-46011

Unavailable

2

COIL ASSY, PULSER

32150-41110

Unavailable

3

COIL ASSY, PRIMARY

32140-28601

Unavailable

4

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.89

6

ROTOR This part replaces 32102-46011.

32102-14210

Unavailable

7

KEY This part replaces 08341-31049.

09420-04008

$3.18

8

WASHER This part replaces 08322-21108.

08322-01107

$1.95

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.89

10

NUT This part replaces 09140-10003.

09140-10041

$2.21

11

SCREW This part replaces 02112-06168.

02112-06167

$1.46

12

WASHER This part replaces 08322-21068.

08322-01067

$1.93

13

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
