1981 Suzuki RM60 Fuel Tank (RM60N Diagram

← All diagrams

Find the part on the Fuel Tank (RM60N diagram for your 1981 Suzuki RM60, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

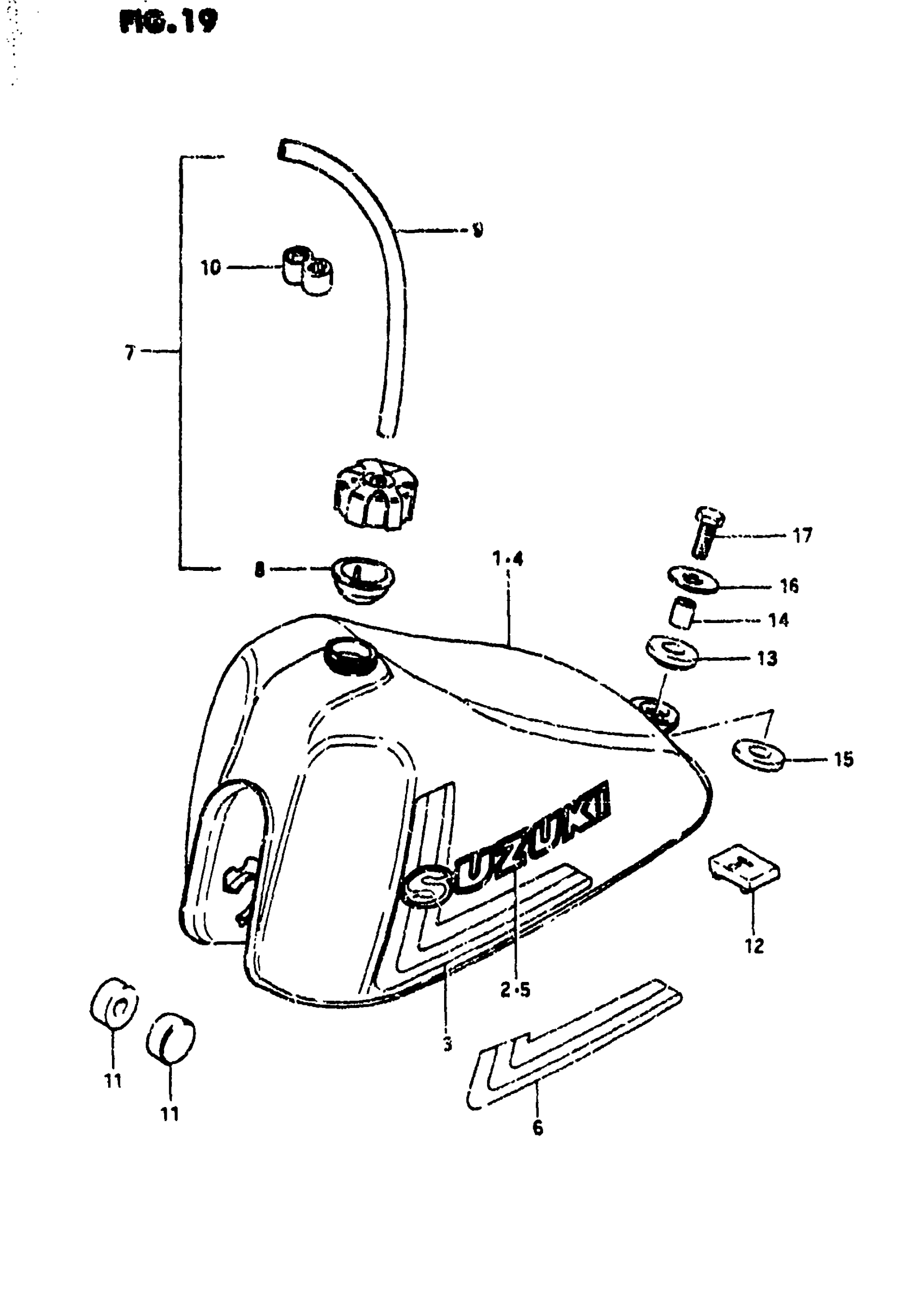

1981 Suzuki RM60 Fuel Tank (RM60N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL (YELLOW) | MODEL N; Includes Item(s) 2 - 3

44100-46900-163

1
Out of stock

2

EMBLEM | MODEL N

68111-46900-584

2
Out of stock

3

TAPE SET | MODEL N

68101-46870-67H

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL T; Includes Item(s) 5 - 6 This part replaces 44100-46910-163.

44110-46901-13L

1
Out of stock

5

EMBLEM FUEL TAN | MODEL T This part replaces 68111-46610-019.

68111-46700-019

2
Out of stock

6

TAPE SET | MODEL T

68110-46610-67H

1
Out of stock

7

CAP ASSY, FUEL TANK | Includes Item(s) 8 - 10

44200-46900

1
Out of stock

8

GASKET

44248-46900

1
Out of stock

9

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

10

CLAMP

44486-32101

1
Out of stock

11

CUSHION, FRONT

09329-10005

2
Out of stock

12

CUSHION, REAR NO. 1

44541-46000

1
Out of stock

13

CUSHION, REAR NO. 2

09320-12013

1
Out of stock

14

SPACER This part replaces 09180-08003.

09180-08191

1
Out of stock

15

CUSHION, REAR NO. 3

09320-12020

1
Out of stock

16

BOLT This part replaces 01107-08258.

01500-08257

1
Out of stock

17

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

1
Out of stock
