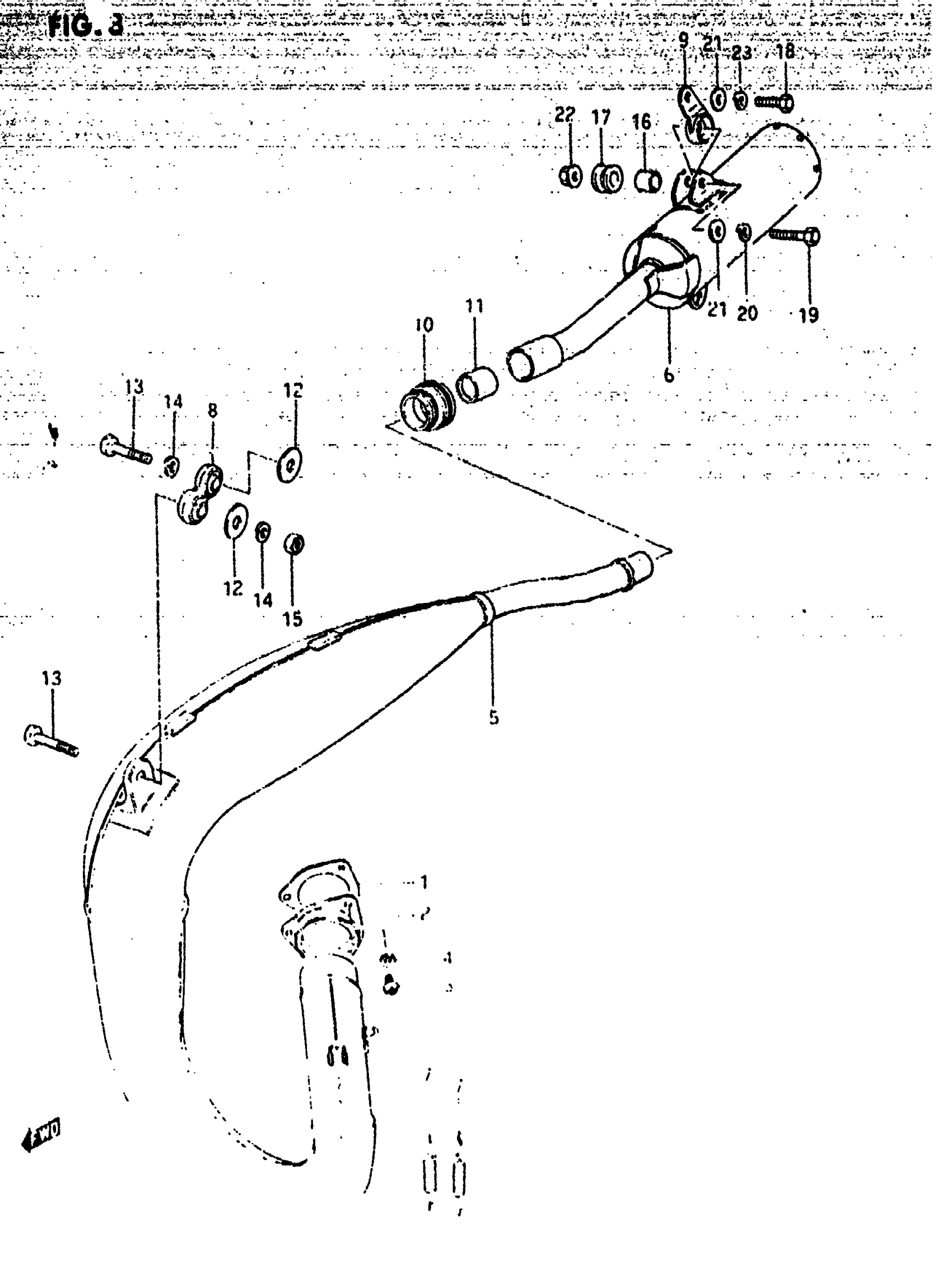

Suzuki RM500 (1984) MUFFLER (MODEL E) Diagram

#

Description
Price

1

GASKET,EXH FLNG This part replaces 14181-41201.

14181-41201-H17

Unavailable

2

FLANGE, EXHAUST PIPE

14170-40403

Unavailable

3

SCREW This part replaces 02112-06168.

02112-06167

$1.43

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

NO DESCRIPTION AVAILABLE This part replaces 14310-14282-H01.

14310-14283-H01

Unavailable

6

MUFFLER, 2ND

14330-14292-H01

Unavailable

7

SPRING This part replaces 09443-12024.

09443-12024-XC0

Unavailable

8

DAMPER, MUFFLER

14770-40000

Unavailable

9

DAMPER, MUFFLER

14770-14201

Unavailable

10

CONNECTOR

14771-14200

Unavailable

11

GASKET This part replaces 14773-14201.

14773-14202

$26.15

12

WASHER This part replaces 09160-08035.

09160-08130

$2.01

13

BOLT

09100-08176

$2.67

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

15

NUT This part replaces 08310-22088.

08310-00087

$1.83

16

SPACER This part replaces 09180-08102.

09180-08194

$2.80

17

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.20

18

BOLT This part replaces 01107-08258.

01500-08257

$2.53

19

BOLT This part replaces 01107-08358.

01500-0835B

$2.80

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

21

WASHER This part replaces 08322-11088.

08322-01087

$1.86

22

NUT This part replaces 08316-26088.

08316-20087

$3.00

23

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$1.83
