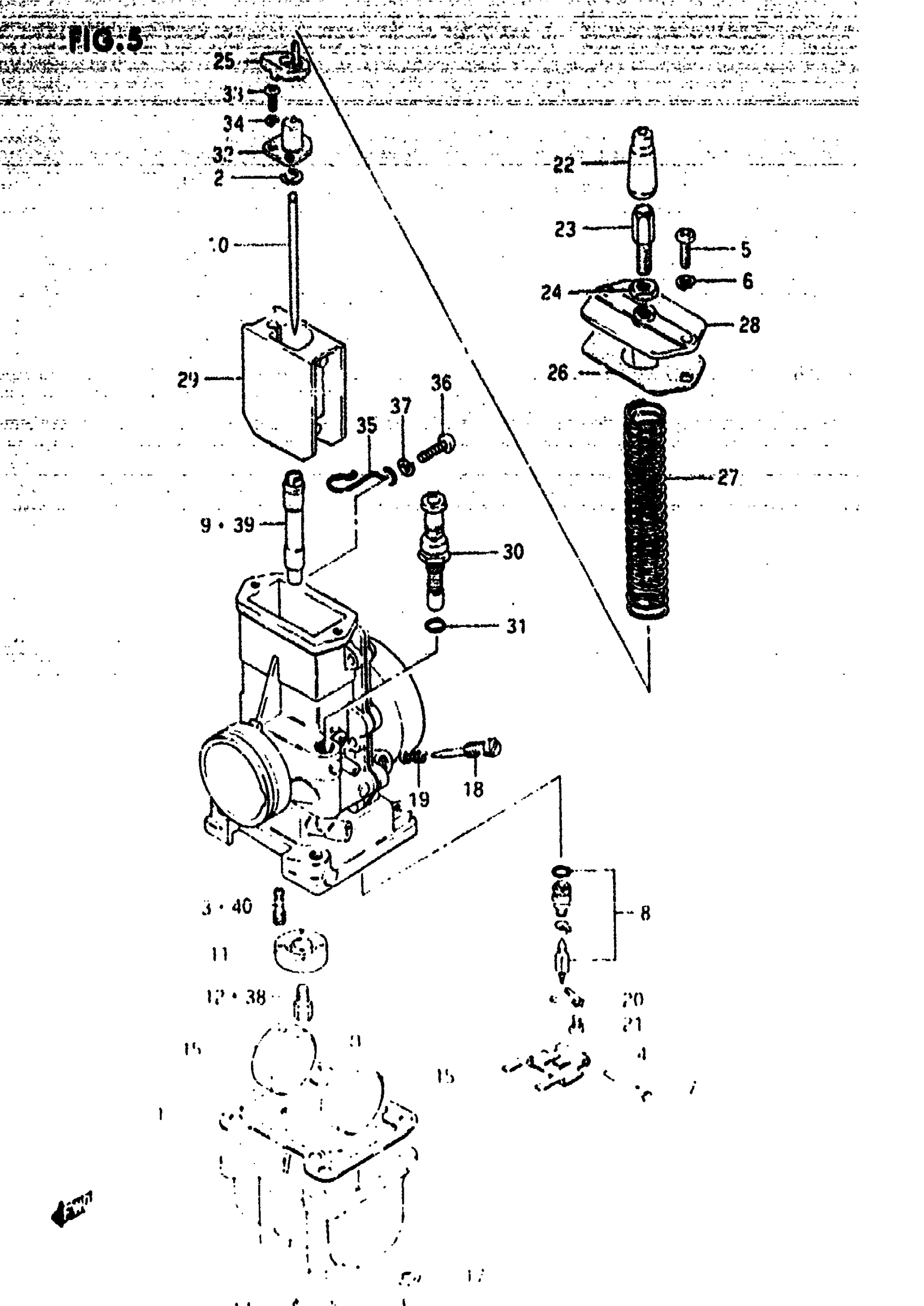

Suzuki RM500 (1984) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | MODEL D

13200-14230

Unavailable

0

CARBURETOR ASSY | MODEL E; Includes Item(s) 1 - 37

13200-14240

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$6.15

3

JET, PILOT (50) | MODEL D

09492-50010

Unavailable

3

JET, PILOT (40) | MODEL E

09492-40004

Unavailable

4

ARM

13253-40010

Unavailable

5

SCREW This part replaces 02112-04128.

02112-0412A

$1.24

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

7

PIN

13254-92311

$2.31

8

VALVE ASSY,NEED This part replaces 13370-14300.

13370-43B01

Unavailable

9

JET, NEEDLE (R-4)

09494-00403

Unavailable

10

NEEDLE, JET (6FM46-3)

13383-14230

Unavailable

11

RING

13331-14300

Unavailable

12

JET, MAIN (300)

09491-60007

$14.18

13

CAP, DRAIN

13247-32210

$17.20

14

O RING

13249-41310

$4.03

15

FLOAT

13252-18620

$20.55

16

SCREW This part replaces 02112-05208.

02112-05207

$1.97

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

18

SCREW, PILOT AIR | MODEL D This part replaces 13269-46010.

13269-95110

$15.07

19

SPRING, AIR SCREW | MODEL E

13268-01010

$4.11

20

PLATE, NEEDLE VALVE

13373-39110

$6.25

21

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

22

CAP, ADJUSTER | MODEL D

13681-33010

$8.54

22

CAP, ADJUSTER | MODEL E

13681-41510

$13.20

23

ADJUSTER, CABLE

13577-41612

$6.60

24

NUT

13661-16600

$4.37

25

RING

13387-14230

Unavailable

26

GASKET,TOP

13266-14300

Unavailable

27

SPRING, THROTTLE VALVE

13573-14300

Unavailable

28

TOP

13261-14300

Unavailable

29

THROTTLE VALVE(CA:2.0)

13551-14230

Unavailable

30

PLUNGER | MODEL D This part replaces 13411-43200.

13400-14500

Unavailable

30

PLUNGER ASSY | MODEL E

13400-14500

Unavailable

31

O RING This part replaces 13295-15010.

09280-08014

$1.92

32

CONNECTOR

13398-14310

Unavailable

33

SCREW This part replaces 02112-03108.

02112-03107

$1.68

34

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

35

CLIP | MODEL E

13692-14500

Unavailable

36

SCREW | MODEL E This part replaces 02112-04168.

02112-0416A

$1.24

37

LOCK WASHER | MODEL E This part replaces 08321-21048.

08321-0104A

$1.86

38

JET, MAIN (280) | OPT This part replaces 09491-56001.

09491-56003

Unavailable

38

JET, MAIN (290) | OPT

09491-58002

Unavailable

38

JET, MAIN (320) | OPT

09491-64002

$12.87

38

JET, MAIN (330) | OPT

09491-66002

$12.38

38

JET, MAIN (340) | OPT

09491-68002

$12.38

39

JET, NEEDLE (R-6) | OPT

09494-00404

Unavailable

39

JET, NEEDLE (R-2) | OPT

09494-00402

Unavailable

40

JET, PILOT (55) | OPT MODEL D

09492-55005

Unavailable

40

JET, PILOT (50) | OPT MODEL E

09492-50010

Unavailable

40

JET, PILOT (45) | OPT

09492-45009

Unavailable

40

JET, PILOT (35) | OPT MODEL E

09492-35004

Unavailable

40

JET, PILOT (30) | OPT MODEL E This part replaces 09492-30003.

09492-30006

$8.74
