1980 Suzuki RM50 Prop Stand - Brake Pedal Diagram

← All diagrams

Find the part on the Prop Stand - Brake Pedal diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

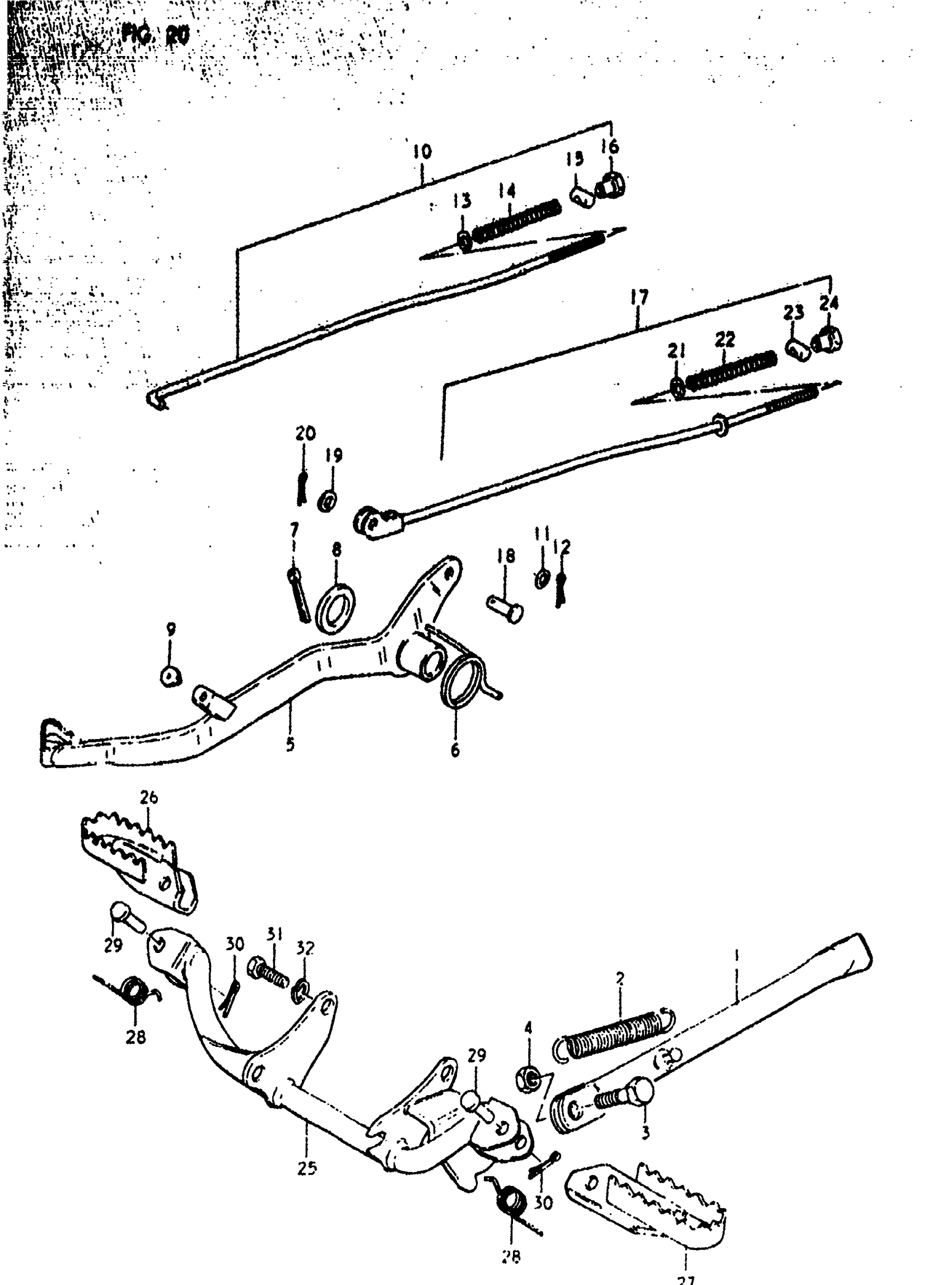

1980 Suzuki RM50 Prop Stand - Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP | C,N,T

42310-46400

1
Out of stock

2

SPRING | C,N This part replaces 09443-14005.

09443-14017

1
Out of stock

2

SPRING | T

09443-14017

1
Out of stock

3

BOLT | C,N,T This part replaces 09100-10007.

09100-10287

1
Out of stock

4

NUT | C,N,T This part replaces 08310-22108.

08310-00107

1
Out of stock

5

PEDAL, BRAKE | C This part replaces 43110-46900.

43110-46502

1
Out of stock

5

PEDAL, BRAKE | N This part replaces 43110-46901.

43110-46502

1
Out of stock

5

PEDAL, BRAKE | T

43110-46910

1
Out of stock

6

SPRING | C,N,T This part replaces 09448-32004.

09448-32004-XC0

1
Out of stock

7

PIN | C,N,T This part replaces 04111-30308.

04111-3030A

1
Out of stock

8

WASHER | C,N,T

09160-15002

1
Out of stock

9

STOP, BRAKE PEDAL | C,N,T

43155-30500

1
Out of stock

10

ROD ASSY, REAR BRAKE | C,N; Includes Item(s) 11 - 16

43300-46600

1
Out of stock

11

WASHER | C,N This part replaces 08322-21058.

08322-01057

1
Out of stock

12

COTTER PIN | C,N This part replaces 04111-20208.

04111-2020A

1
Out of stock

13

WASHER | C,N This part replaces 08322-21068.

08322-01067

1
Out of stock

14

SPRING | C,N

09440-09004

1
Out of stock

15

PIN | C,N

09209-11002

1
Out of stock

16

.NUT | C,N This part replaces 09150-06001.

09150-06010

1
Out of stock

17

ROD ASSY, REAR BRAKE | T; Includes Item(s) 18 - 24 This part replaces 43300-46610.

43300-46611

1
Out of stock

18

PIN, FRONT | T

09200-06013

1
Out of stock

19

WASHER | T This part replaces 08322-21068.

08322-01067

1
Out of stock

20

COTTER PIN | T This part replaces 04111-20208.

04111-2020A

1
Out of stock

21

WASHER | T This part replaces 08322-21068.

08322-01067

1
Out of stock

22

SPRING | T

09440-09004

1
Out of stock

23

PIN, REAR | T

09209-11002

1
Out of stock

24

.NUT | T This part replaces 09150-06001.

09150-06010

1
Out of stock

25

NO DESCRIPTION AVAILABLE | C,N,T This part replaces 43510-46000.

43510-46700

1
Out of stock

26

FOOTREST, RH (BLACK) | C,N,T This part replaces 43550-46000.

43550-46000-019

1
Out of stock

27

FOOTREST, LH (BLACK) | C,N,T This part replaces 43560-46000.

43560-46000-019

1
Out of stock

28

SPRING | C,N,T

09448-14012

2
Out of stock

29

PIN | C,N,T

09200-08002

2
Out of stock

30

COTTER PIN | C,N,T This part replaces 04111-20208.

04111-2020A

2
Out of stock

31

PLUG, DRAIN | C,N,T This part replaces 01107-08168.

01500-0816B

2
Out of stock

32

.LOCK WASHER | C,N,T This part replaces 08321-21088.

08321-01087

2
Out of stock
