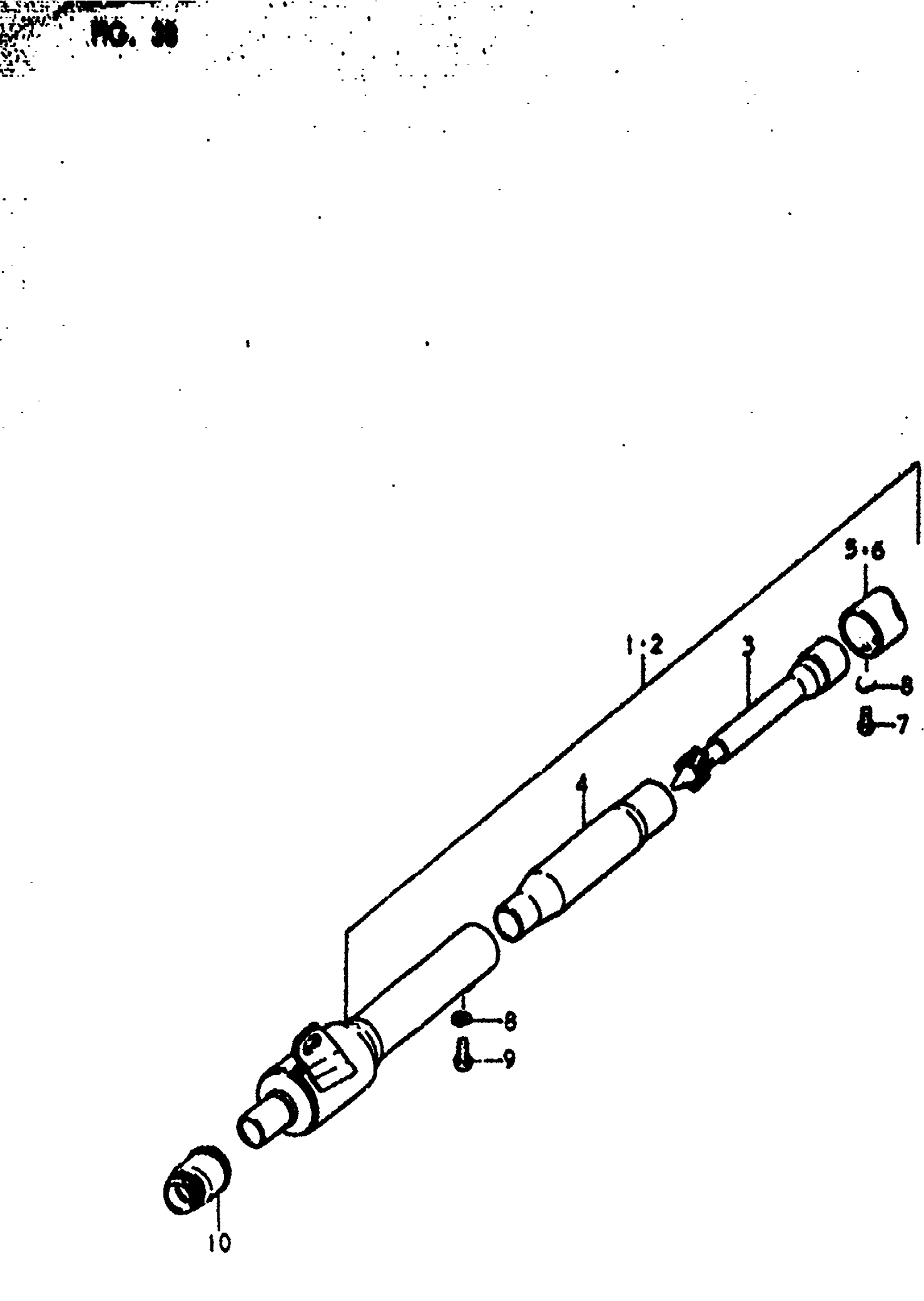

Suzuki RM50 (1980) OPTIONAL Diagram

#

Description

Price

1

MUFFLER, 2ND | C

14303-46620

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 3 - 9 This part replaces 14303-46640.

14303-46640-H01

Unavailable

3

TUBE, CLEAN OUT | C,N,T

14850-30602

$57.52

4

BODY, ARRESTOR | C,N,T

14815-46600

Unavailable

5

CUTTER, MUFFLER TEAL | C

14817-16401

Unavailable

6

CUTTER, MUFFLER TEAL | N,T

14817-46600

$19.22

7

SCREW | C,N,T This part replaces 02112-06088.

02112-06087

$1.49

8

LOCK WASHER | C,N,T This part replaces 08321-21068.

08321-01067

$1.89

9

SCREW | C,N,T This part replaces 02112-06168.

02112-06167

$1.46

10

CONNECTOR | C,N,T This part replaces 14771-48001.

14771-48002

$12.46
