1980 Suzuki RM50 Frame - Seat (RM50N Diagram

← All diagrams

Find the part on the Frame - Seat (RM50N diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

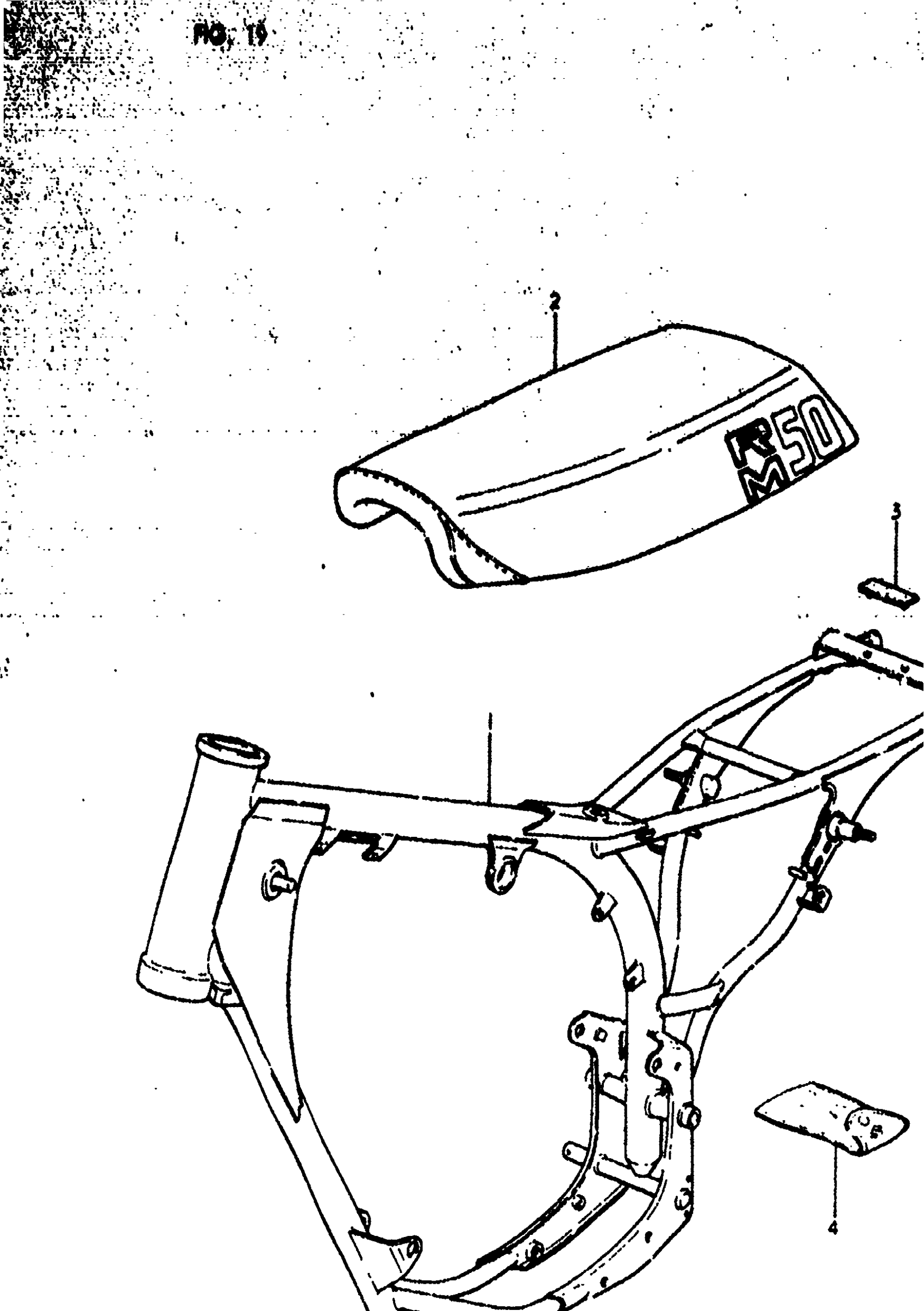

1980 Suzuki RM50 Frame - Seat (RM50N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME | N,T

41100-46630-019

1
Out of stock

2

NO DESCRIPTION AVAILABLE | N,T This part replaces 45100-46640-866.

45100-46670-48F

1
Out of stock

3

CUSHION, SEAT FRAME | N,T

09329-06001

1
Out of stock

4

TOOL ASSY | N,T This part replaces 09800-00108.

09800-21028

1
Out of stock
