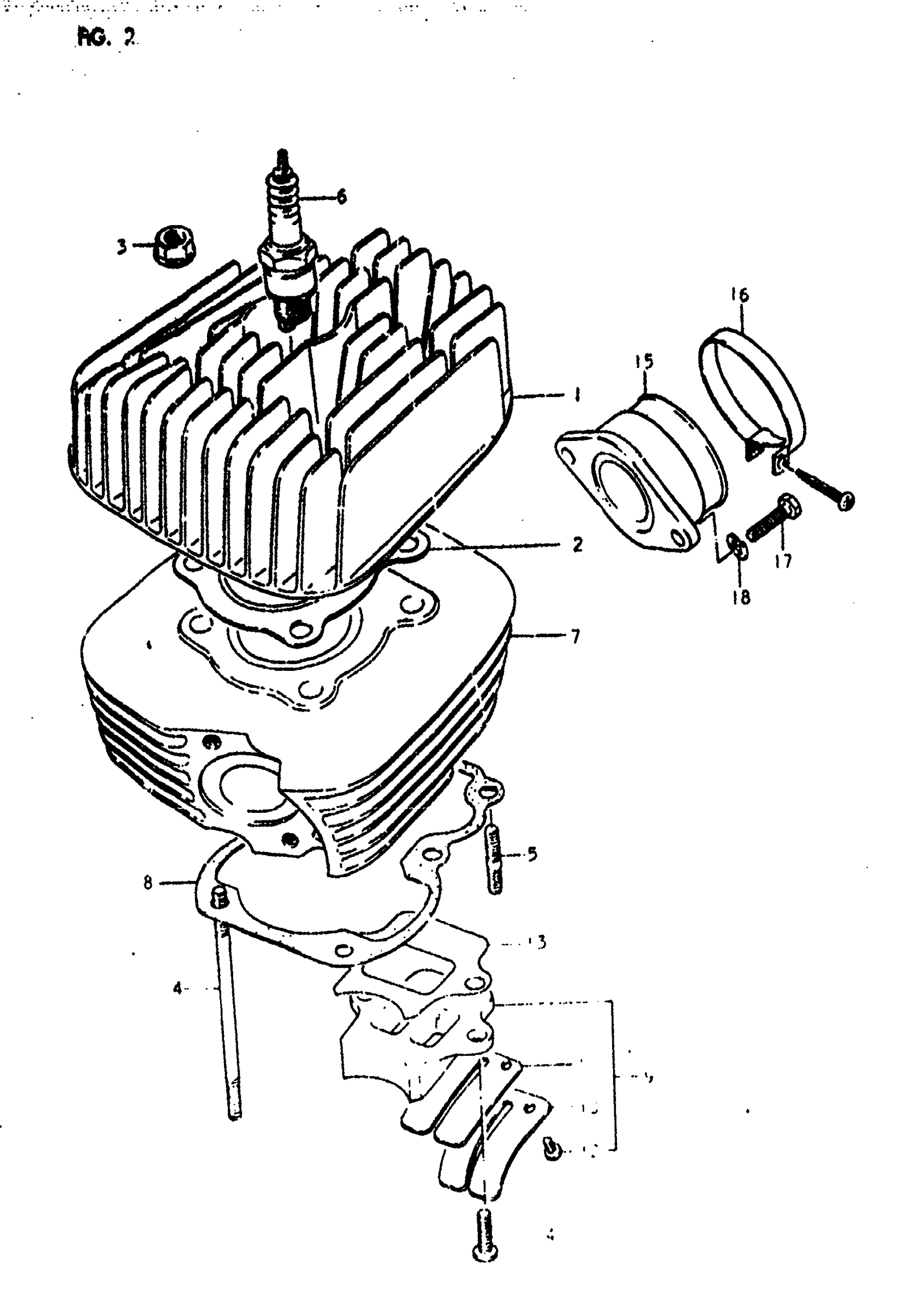

1980 Suzuki RM50 Cylinder (RM50N Diagram

← All diagrams

Find the part on the Cylinder (RM50N diagram for your 1980 Suzuki RM50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki RM50 Cylinder (RM50N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD | N,T

11111-46600

1
Out of stock

2

GASKET | N This part replaces 11141-46600.

11141-46601

1
Out of stock

2

GASKET | T

11141-46601

1
Out of stock

3

NUT (CHROME) | N,T This part replaces 08316-16088.

08316-10087

6
Out of stock

4

STUD BOLT, NO. 1 | N,T

09108-08060

4
Out of stock

5

STUD BOLT | N,T This part replaces 01421-08168.

01421-0816A

2
Out of stock

6

SPARK PLUG (NGK, B7HS) | N,T

09482-00082

1
Out of stock

6

SPARK PLUG (ND, W22FS) | N,T

09482-00083

1
Out of stock

7

CYLINDER | N,T

11210-46610

1
Out of stock

8

GASKET, CYLINDER | N This part replaces 11241-46001.

11241-46010

1
Out of stock

8

GASKET, CYLINDER | T This part replaces 11241-46002.

11241-46010

1
Out of stock

9

LEED VALVE ASSY | N,T; Includes Item(s) 10 - 12

13150-46011

1
Out of stock

10

STOPPER | N,T

13152-23011

1
Out of stock

11

REED VALVE | N,T

13153-27110

1
Out of stock

12

SCREW | N,T This part replaces 13154-19011.

02112-0308A

2
Out of stock

13

GASKET, REED VALVE | N This part replaces 13156-46000.

13156-46001-H17

1
Out of stock

13

GASKET, REED VALVE | T This part replaces 13156-46001.

13156-46001-H17

1
Out of stock

14

SCREW | N,T This part replaces 02112-06168.

02112-06167

2
Out of stock

15

PIPE, INTAKE | N,T

13110-46620

1
Out of stock

16

CLAMP | N,T This part replaces 09402-46306.

09402-46208

1
Out of stock

18

2

$2.28

In stock
← Cylinder Kick Starter →
