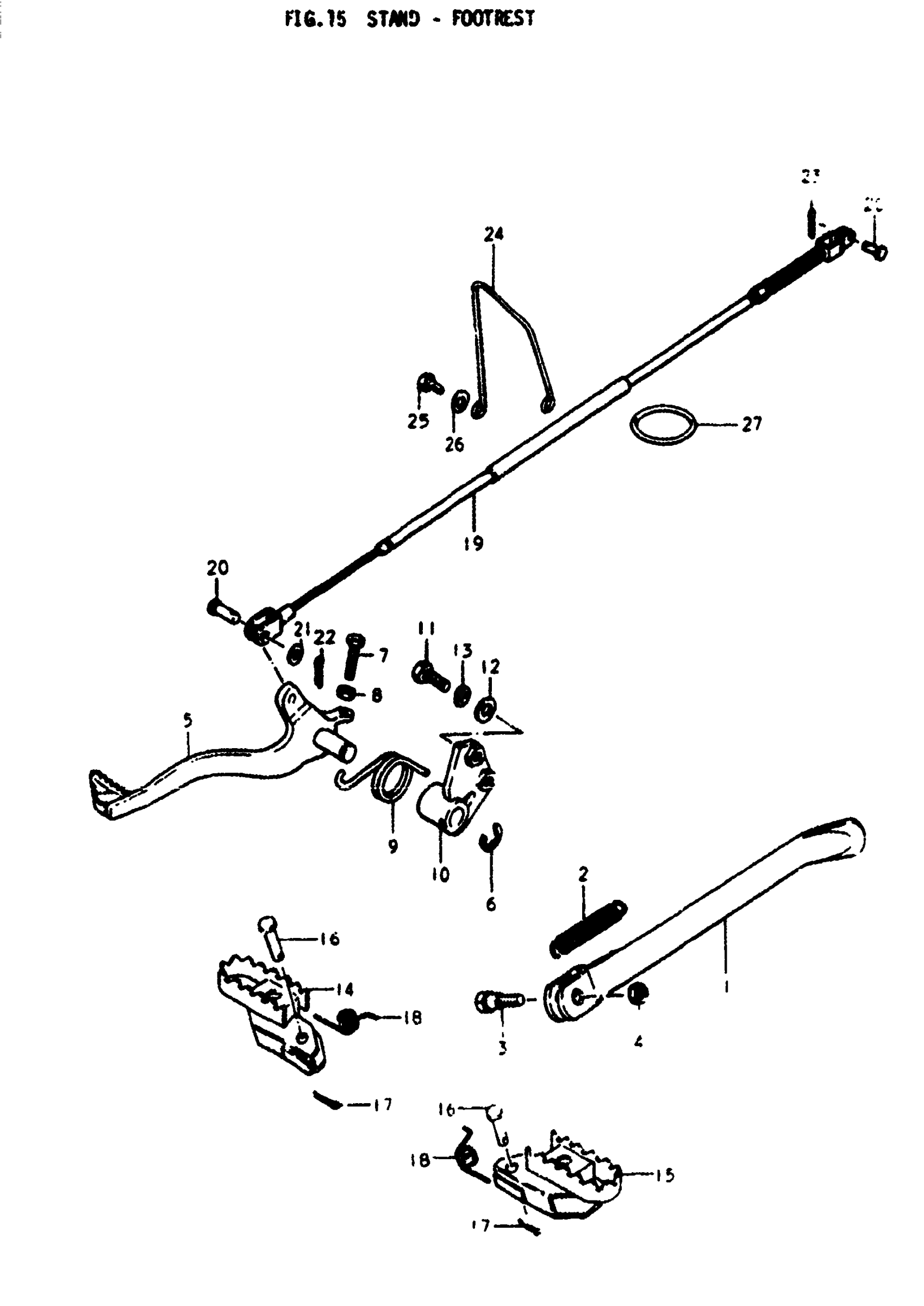

Suzuki RM400 (1978) STAND - FOOTREST Diagram

#

Description
Price

1

STAND, PROP

42310-41100

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$2.80

3

BOLT | 10x30

09100-10067

$2.71

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-41202

Unavailable

6

E-RING, BUSH This part replaces 08332-11098.

08332-1109A

$1.81

7

BOLT | 6x23

09100-06009

$1.79

8

.NUT This part replaces 08310-11068.

08310-00067

$1.83

9

SPRING

09448-28002

Unavailable

10

BRACKET, BRAKE PEDAL BOSS

43130-41101

Unavailable

11

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

12

WASHER This part replaces 08322-21088.

08322-01087

$1.86

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

14

FOOTREST, RH

43550-41200

Unavailable

15

FOOTREST,FRONT, This part replaces 43560-41102.

43560-48501

$42.95

16

PIN

09200-10008

$2.64

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

18

SPRING

09448-15004

$2.33

19

CABLE, REAR BRAKE

58510-41110

Unavailable

20

PIN

09200-05001

$1.52

21

WASHER This part replaces 08322-21068.

08322-01067

$1.86

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

24

GUIDE, REAR BRAKE CABLE

58622-41110

Unavailable

25

BOLT This part replaces 01107-06128.

01500-06127

$1.97

26

WASHER This part replaces 08322-21068.

08322-01067

$1.86

27

O RING

58642-41300

$6.22
