1978 Suzuki RM400 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1978 Suzuki RM400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

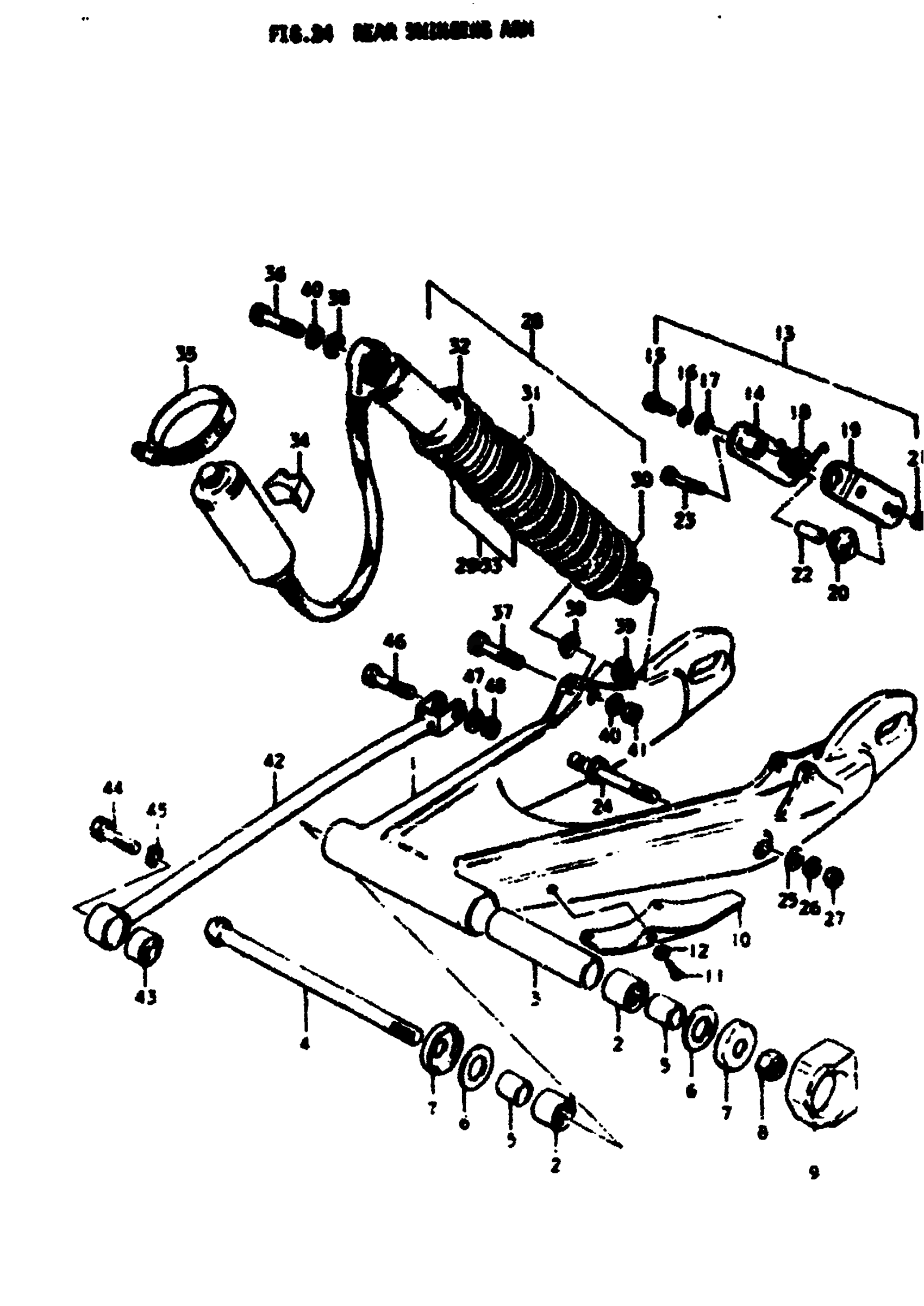

1978 Suzuki RM400 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 61101-41810.

61101-41811

1
Out of stock

2

BEARING

09263-22022

2
Out of stock

3

SPACER, CENTER

61282-41110

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 61211-38001.

61211-38004

1
Out of stock

5

SPACER

61251-32400

2
Out of stock

6

THRUST WAGMER

09160-14020

2
Out of stock

7

DUST SEAL This part replaces 61262-45001.

61262-45002

2
Out of stock

8

NUT This part replaces 08319-21148.

08319-2114A

1
Out of stock

9

BUFFER, CHAIN DEFENSE NO.1

61273-41110

1
Out of stock

10

BUFFER, CHAIN DEFENSE NO.2

61273-41700

1
Out of stock

11

SCREW This part replaces 03111-04128.

03111-0412A

3
Out of stock

12

WASHER This part replaces 08322-21048.

08322-01047

3
Out of stock

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 23 This part replaces 61300-41810.

61300-41811

—
Out of stock

14

CHAIN TENSIONER This part replaces 61350-41300.

61350-41301

1
Out of stock

15

BOLT This part replaces 01107-06128.

01500-06127

1
Out of stock

16

1

$2.28

In stock

17

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

1
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 09448-25005.

09448-25005-XC0

1
Out of stock

19

TENSIONER OUT P This part replaces 61352-41300.

61352-41301

1
Out of stock

20

ROLLER This part replaces 61345-41100.

61345-41101

2
Out of stock

21

.NUT This part replaces 08319-21066.

08319-2106A

2
Out of stock

22

SPACER | 6.5x10.5x22.5

09180-06067

2
Out of stock

23

BOLT This part replaces 01107-06358.

64455-07L00

2
Out of stock

24

NO DESCRIPTION AVAILABLE This part replaces 61361-41700.

61361-41701

1
Out of stock

25

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

26

1

$2.02

In stock

27

NUT This part replaces 08310-12108.

08310-00107

1
Out of stock

28

SHOCK ABSORBER ASSY, REAR | TO F/NO 102320 This part replaces 62100-41660.

62100-41131

2
Out of stock

28

SHOCK ABSORBER, REAR | ON & AFTER F:NO 102321; Includes Item(s) 29 - 32

62100-41131

2
Out of stock

29

SPRING | TO F/NO 102320

62210-41660

—
Out of stock

29

NO DESCRIPTION AVAILABLE | ON & AFTER F:NO 102321 This part replaces 62210-41130.

62210-41131

2
Out of stock

30

GUIDE, SPRING

62225-40600

2
Out of stock

31

GUIDE, SPRING CENTER

62221-41650

2
Out of stock

32

SEAT, SPRING

62191-41650

2
Out of stock

33

SPRING (STIFFER) | OPT

62210-41710

2
Out of stock

33

SPRING (SOFT) | OPT

62210-41720

—
Out of stock

34

CUSHION

62331-41630

4
Out of stock

35

CLAMP

62332-41631

4
Out of stock

36

BOLT 10X 40 | 10x40.5 This part replaces 09100-10096.

09100-10184

2
Out of stock

37

BOLT, LOWER | 10x48

09100-10006

2
Out of stock

38

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

39

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

4
Out of stock

40

LOCK WASHER This part replaces 08321-21108.

08321-01107

4
Out of stock

41

NUT This part replaces 08310-12108.

08310-00107

2
Out of stock

42

TORQUE LINK, REAR

64310-41110

1
Out of stock

43

BUSH

09319-10008

1
Out of stock

44

BOLT This part replaces 01107-10408.

01500-10407

1
Out of stock

45

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

46

BOLT This part replaces 01107-10408.

01500-10407

1
Out of stock

47

WASHER This part replaces 08322-11108.

08322-01107

1
Out of stock

48

NUT This part replaces 08319-21108.

09159-10027

1
Out of stock
