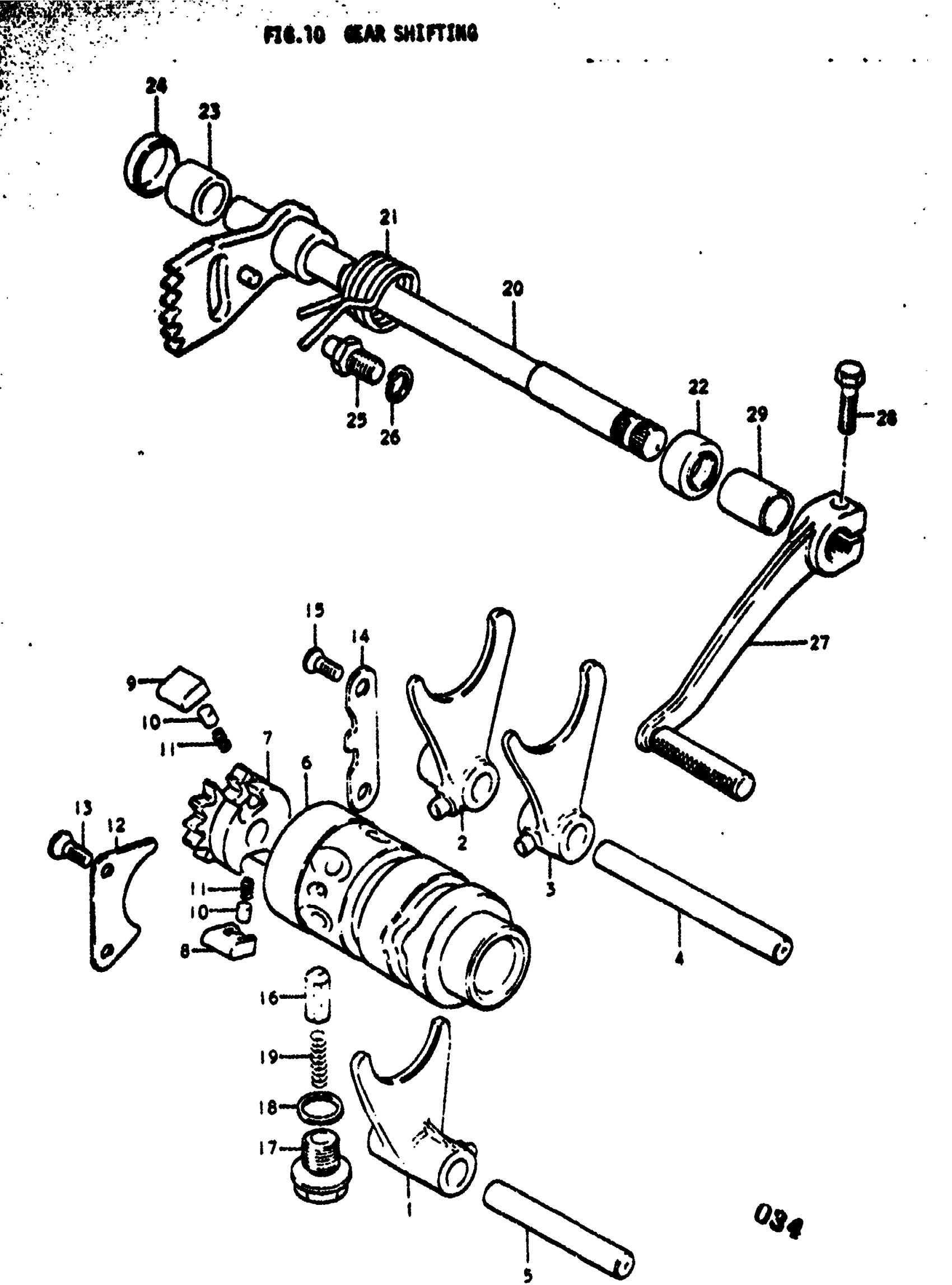

Suzuki RM370 (1977) GEAR SHIFTING Diagram

#

Description
Price

27

LEVER, GEAR SHIFTING | A; TO 25610-41101 This part replaces 25610-41100.

25610-41102

Unavailable

27

LEVER, GEAR SHIFTING | A; F.NO.11090~ This part replaces 25610-41101.

25610-41102

Unavailable

27

LEVER, GEAR SHIFTING | B

25610-41102

Unavailable

28

BOLT | A,B This part replaces 01112-06208.

01500-06207

$1.99

29

CUSHION | A,B

09320-13001

Unavailable

1

FORK, GEAR SHIFTING NO.1 | A,B

25211-40100

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B This part replaces 25221-40100.

25221-40X00

Unavailable

3

FORK, GEAR SHIFTING NO.3 | A,B

25231-40100

Unavailable

4

SHAFT, NO.2 | A,B This part replaces 25411-40000.

25411-14331

$26.03

5

SHAFT, NO.1 | A,B This part replaces 25421-40000.

25421-35410

$26.50

6

CAM, GEAR SHIFTING | A,B

25310-41100

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN | A,B This part replaces 25322-11000.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1 | A,B This part replaces 25323-11000.

25323-34201

$6.61

9

PAWL, GEAR SHIFT NO.2 | A,B This part replaces 25324-11000.

25324-34201

$6.80

10

PIN | A,B

09261-05003

$1.69

11

SPRING | A,B

09440-04003

$1.48

12

LIFTER, GR SHIFT POLE | A,B This part replaces 25331-30000.

25331-30001

Unavailable

13

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.83

14

GUIDE, GEAR SHIFTING CAM | A,B

25341-40001

$13.73

15

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.83

16

STOPPER, CAM | A,B This part replaces 25351-11000.

25351-11010

$6.61

17

HOLDER, STOPPER | A,B This part replaces 25352-11000.

25352-11010

$6.80

18

GASKET | A,B; 14.2x20.5x1.2

09168-14006

Unavailable

19

SPRING | A,B This part replaces 09440-05002.

09440-05007

$1.79

20

NO DESCRIPTION AVAILABLE | A,B This part replaces 25510-41200.

25510-41X01

Unavailable

21

SPRING | A,B

09444-26013

$2.84

22

OIL SEAL (12X22X9) | A,B This part replaces 09285-12001.

09285-12006

$5.70

23

SPACER | A,B This part replaces 09180-12066.

09180-12139

$8.77

24

PLUG | A,B This part replaces 09241-22001.

09241-22003

$4.18

25

STOPPER, ARM | A,B This part replaces 25671-01000.

25671-01011

$4.09

26

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$1.83
