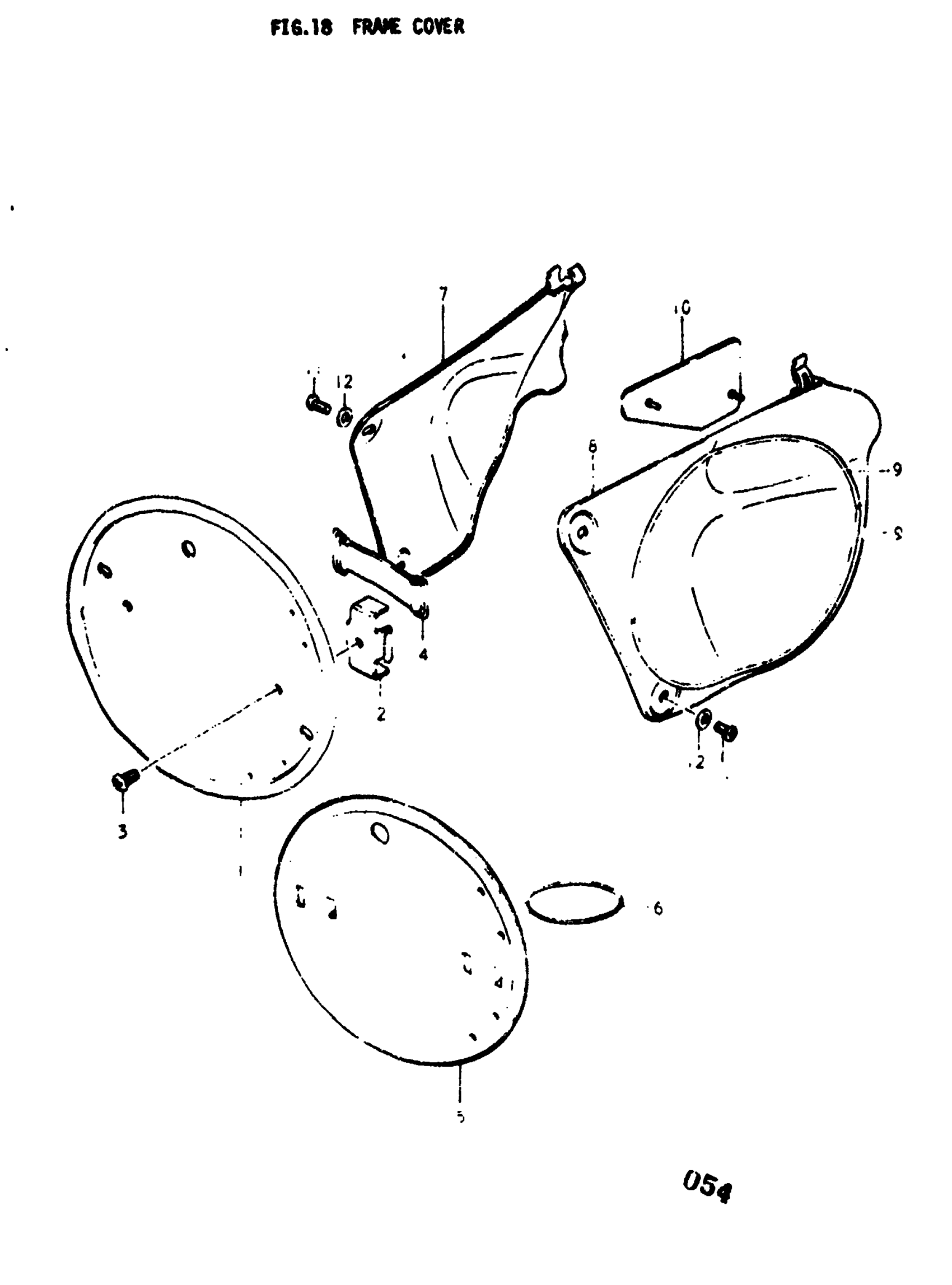

Suzuki RM370 (1977) FRAME COVER Diagram

#

Description
Price

1

PLATE, FRONT NUMBER | A This part replaces 94910-41001.

94911-41600

Unavailable

2

HOLDER, NUMBER PIATE | A

94950-41100

Unavailable

3

SCREW | A This part replaces 02141-06127.

02142-06127

$1.38

4

BAND | A

09462-00001

$4.18

5

PLATE, FRONT NUMBER | B

94911-41600

Unavailable

6

BAND | B This part replaces 09280-74001.

09280-70004

$3.52

7

COVER,FRAME,RH | A,B This part replaces 47110-41200-163.

47111-41100-13L

Unavailable

8

COVER,FRAME LH | A,B; Includes Item(s) 9 This part replaces 47210-41200-163.

47211-41100-13L

Unavailable

9

TAPE, FRAME COVER | A,B

68146-41200

Unavailable

10

PROTECTOR | A,B

47218-41100

Unavailable

11

SCREW | A,B This part replaces 02141-06127.

02142-06127

$1.38

12

SPACER | A,B

09169-06010

$2.61
