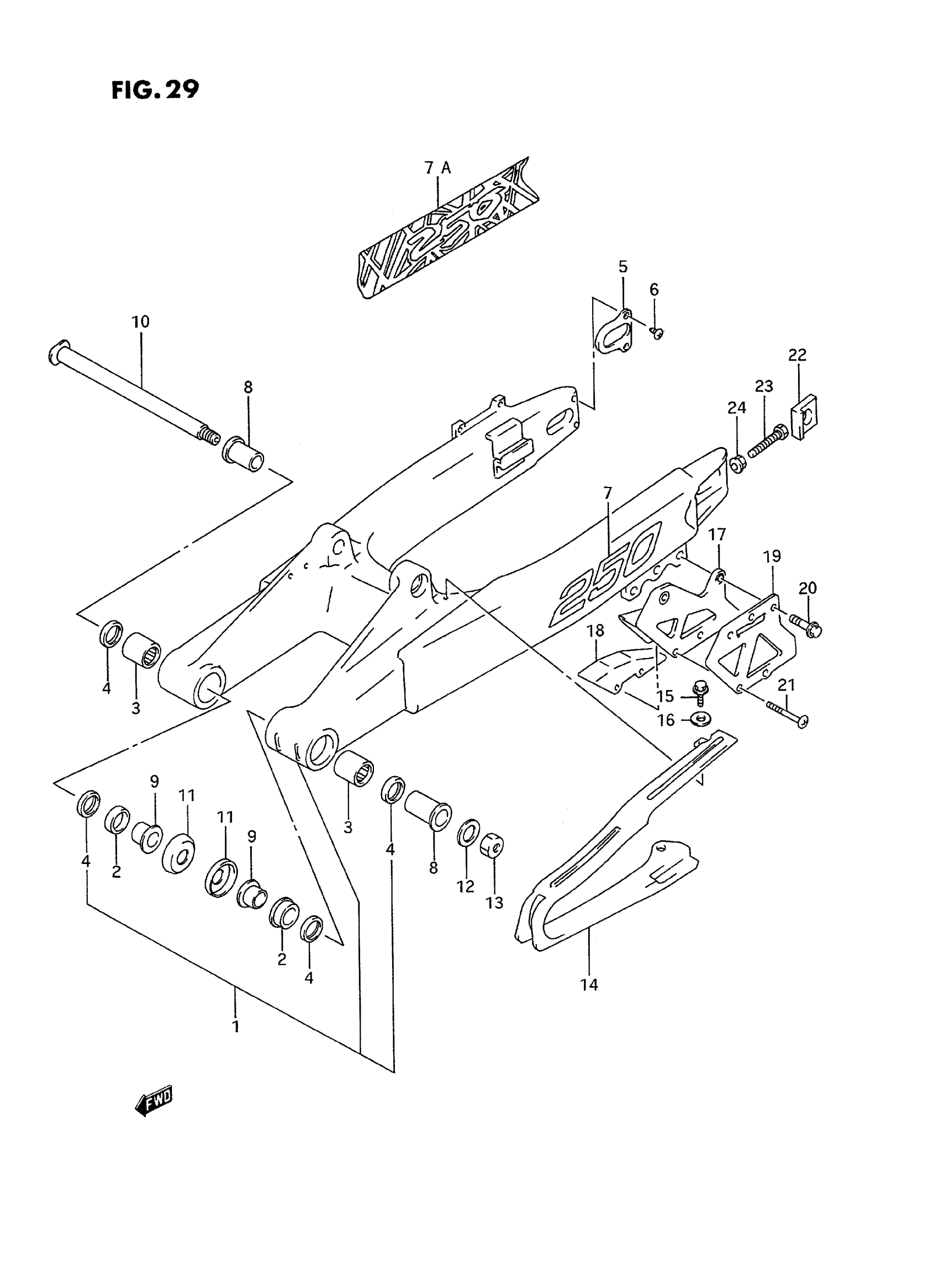

Find the part on the Rear Swinging Arm diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RM250S Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | MODEL P->61000-28E11

61000-28E00

1
Out of stock

1

SWINGING ARM ASSY, REAR | MODEL R->61000-28E11 This part replaces 61000-28E10.

61000-28E11

1
Out of stock

1

SWINGING ARM ASSY, REAR | WITH OUT EMBLEMMODEL S; Includes Item(s) 2 - 6

61000-28E11

1
Out of stock

2

BUSH

61261-28C00

2
Out of stock

3

BEARING

09263-22017

2

$21.98

In stock

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

4
Out of stock

5

PLATE, INNER

61128-28E00

2
Out of stock

6

SCREW

09126-05009

4
Out of stock

7

EMBLEM, 250 | MODEL P

68381-28C10-12R

2
Out of stock

7A

EMBLEM, 250 | MODEL R This part replaces 68381-28E00-C2N.

68381-29E00-C2N

2
Out of stock

7A

EMBLEM, 250 | MODEL S

68381-29E00-D0K

2
Out of stock

8

SPACER, PIVOT

61251-05D00

2
Out of stock

9

SPACER, INNER

61252-28C00

2
Out of stock

10

SHAFT, PIVOT

61211-28C00

1

$66.57

In stock

11

2

$7.00

In stock

12

1

$2.43

In stock

12

1

$2.00

In stock

13

NUT

09159-16007

1

$12.21

In stock

14

1

$55.34

In stock

15

BOLT | MODEL P

01547-06167

2
Out of stock

15

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

2
Out of stock

16

WASHER

09169-06057

2

$3.14

In stock

17

GUIDE, CHAIN

61341-27C20

1

$50.88

In stock

18

DEFENSE, CHAIN GUIDE

61348-27C20

1

$35.32

In stock

19

PLATE, GUIDE OUTER

61342-28E00

1

$67.93

In stock

20

BOLT, UPPER | MODEL P

01547-06207

3
Out of stock

20

..BOLT | MODEL R/S This part replaces 01547-06203.

01547-0620B

3
Out of stock

21

SCREW, UNDER

09126-06013

2

$3.92

In stock

22

WASHER, CHAIN ADJUSTER | MODEL P This part replaces 61445-28E00.

61445-28E10

2
Out of stock

22

WASHER, CHAIN ADJUSTER | MODEL R/S

61445-28E10

2
Out of stock

23

BOLT

09100-08287

2
Out of stock

24

NUT

09159-08034

2
Out of stock
