1995 Suzuki RM250S Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

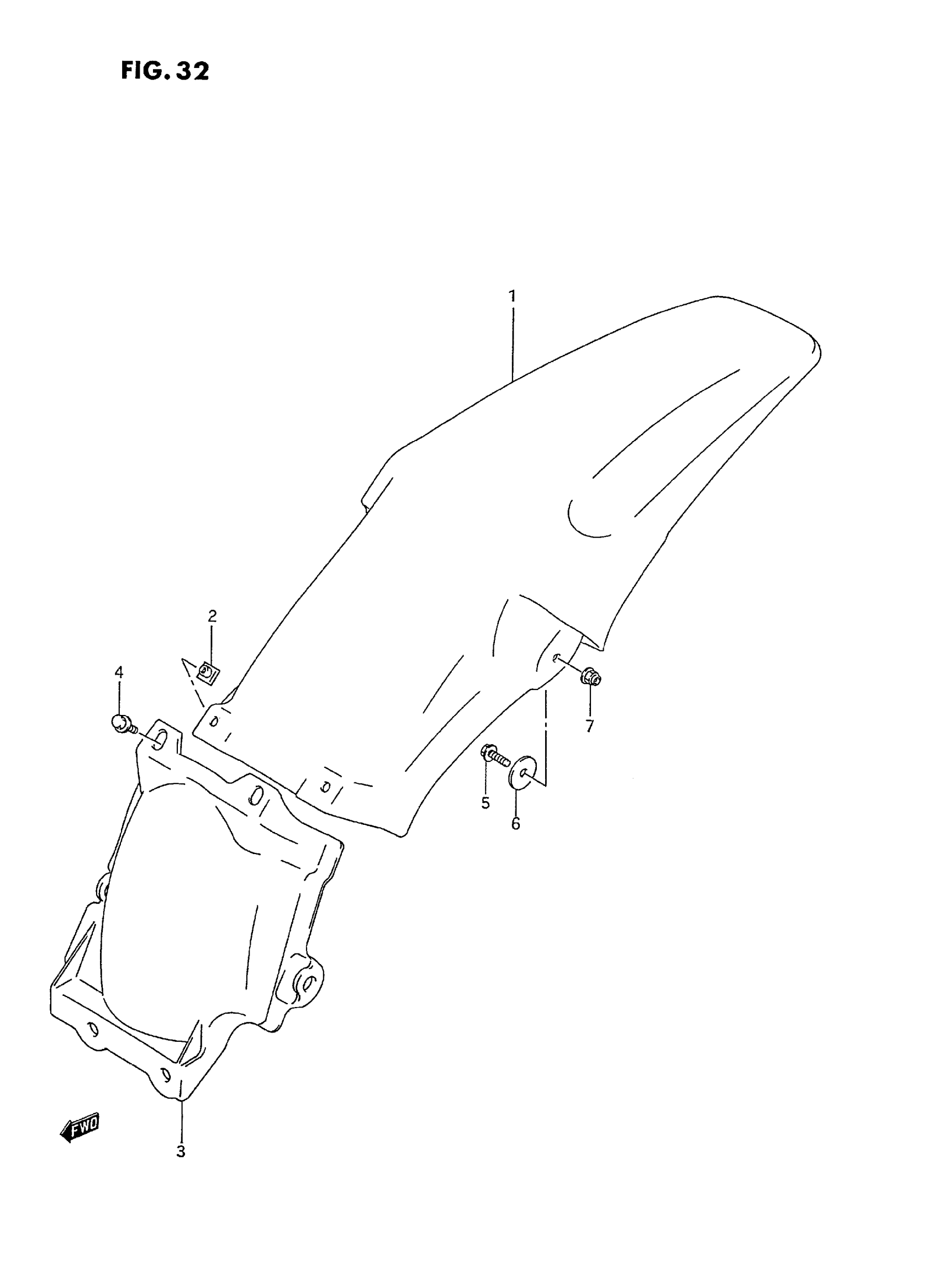

1995 Suzuki RM250S Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, REAR FENDER REAR

63113-28E11-25Y

1
Out of stock

2

NUT, REAR FENDER

63167-28E00

2
Out of stock

3

BODY, REAR FENDER FRONT

63112-28E01

1
Out of stock

4

BOLT, FRONT | MODEL P

01547-06127

2
Out of stock

4

BOLT | MODEL R/S This part replaces 01547-06123.

01547-0612B

2
Out of stock

5

BOLT, LH | MODEL P

01547-06167

1
Out of stock

5

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

1
Out of stock

6

WASHER This part replaces 09160-06030.

09160-06136

1
Out of stock

7

NUT

08319-31067

1
Out of stock
