1995 Suzuki RM250S Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1995 Suzuki RM250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

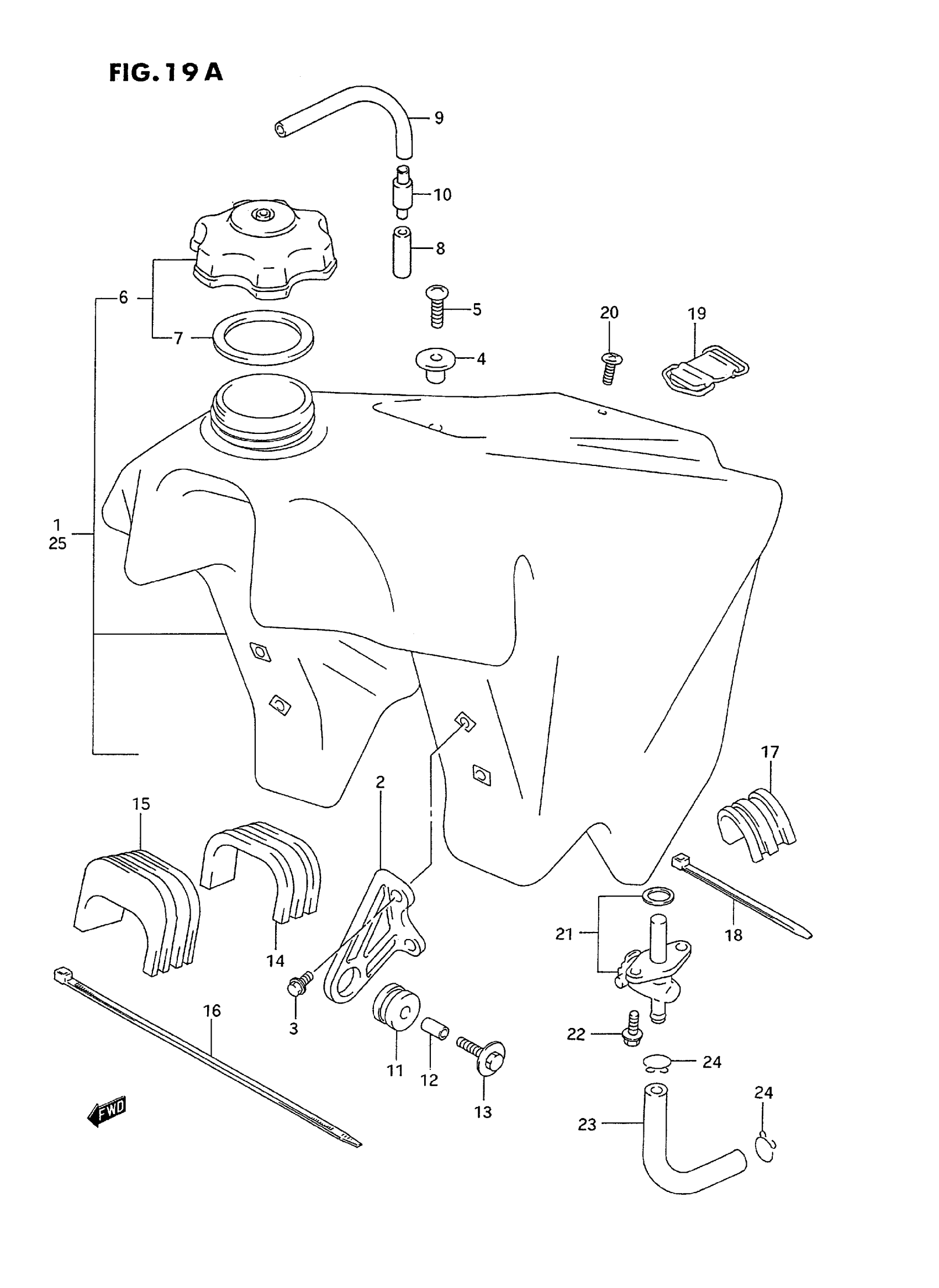

1995 Suzuki RM250S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | 7.5 LITER; Includes Item(s) 2 - 7 This part replaces 44100-43860-1TD.

44100-43861-1TD

1
Out of stock

2

BRACKET, FRONT RH

44131-28E00

1
Out of stock

2

BRACKET, FRONT LH

44132-28E00

1
Out of stock

3

BOLT, FRONT

01547-06127

4
Out of stock

4

HOOK, SEAT FR

44132-27C01

1

$19.39

In stock

5

SCREW, HOOK

02142-06207

1
Out of stock

6

1

$22.90

In stock

8

1

$9.88

In stock

9

1

$9.88

In stock

10

PLUG

44240-28E00

1
Out of stock

11

2

$3.73

In stock

12

2

$2.50

In stock

13

BOLT

09118-06109

2
Out of stock

14

CUSHION, UPPER NO.1

44541-43D10

1
Out of stock

15

CUSHION, UPPER NO.2

44541-28E01

1
Out of stock

16

CLAMP

09407-30402

2
Out of stock

17

CUSHION, UPPER REAR

44542-26C00

2

$10.55

In stock

18

CLAMP

09407-14407

3
Out of stock

19

BAND, REAR

44560-27C00

1

$7.67

In stock

10

SCREW This part replaces 02142-06163.

02142-0616A

1
Out of stock

21

COCK ASSY, FUEL

44300-28E10

1

$73.93

In stock

22

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

23

1

$11.62

In stock

24

CLIP

09401-11101

2

$2.55

In stock

25

NO DESCRIPTION AVAILABLE | OPT,8.8 LITER This part replaces 44101-28840-1TD.

44101-28841-1TD

1
Out of stock
