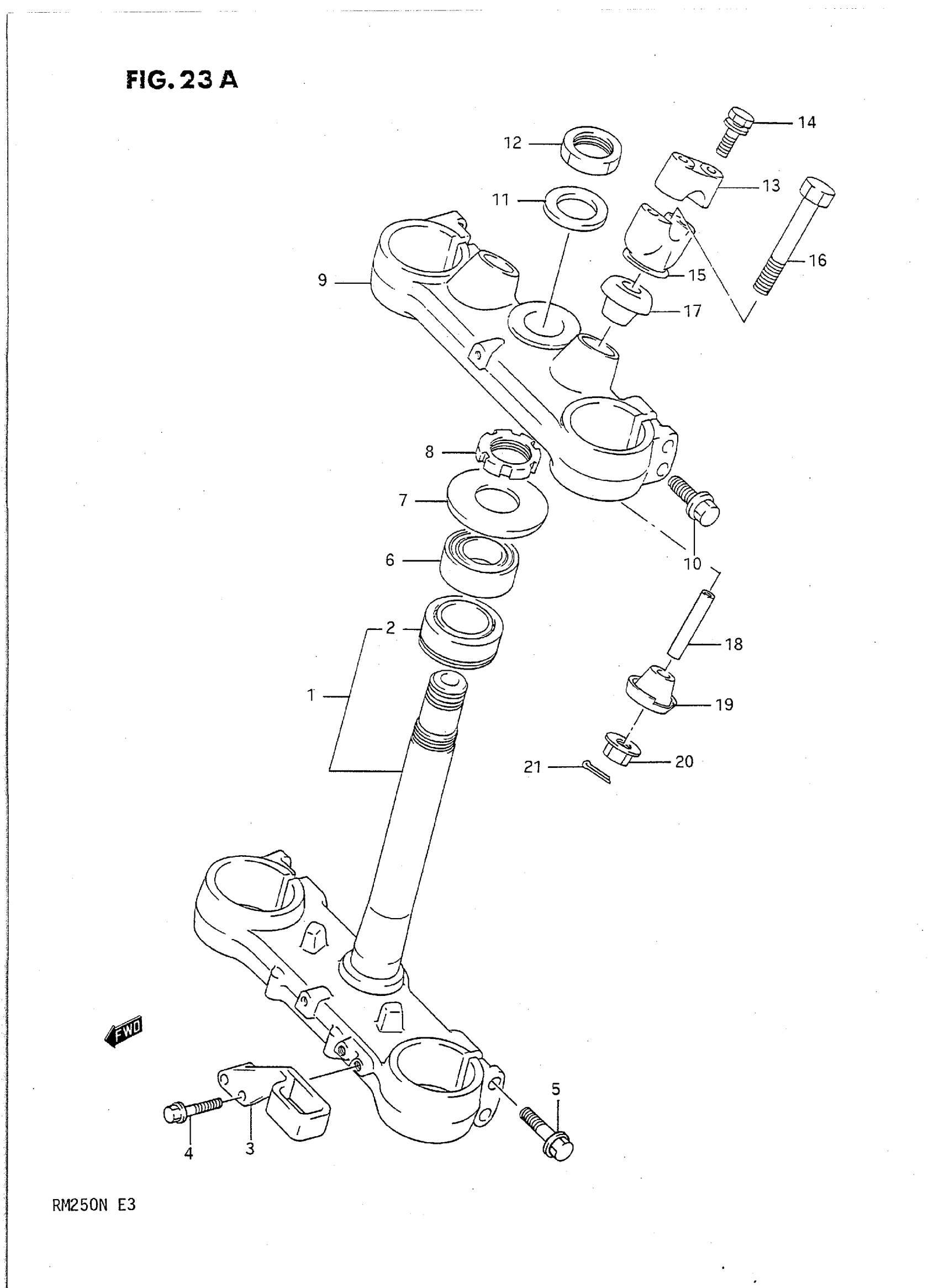

Suzuki RM250N (1992) STEERING STEM (MODEL M/N) Diagram

#

Description
Price

1

STEM, STEERING | MODEL M This part replaces 51410-27C40.

51410-43D01

Unavailable

1

STEM, STEERING | MODEL N; Includes Item(s) 2 This part replaces 51410-43D00.

51410-43D01

Unavailable

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$42.15

3

GUIDE, HOSE

58621-27C40

$23.52

4

BOLT This part replaces 58629-27C40.

01547-06257

$2.01

5

BOLT This part replaces 51328-27C40.

51166-27E30

$4.11

6

BEARING | MODEL M This part replaces 09265-28002.

09265-28003

Unavailable

6

BEARING | MODEL N

09265-28003

Unavailable

7

SEAL, STEERING | MODEL M

51643-28C00

Unavailable

8

NUT, STEERING

51631-28C10

Unavailable

9

HEAD, STEERING STEM This part replaces 51310-28C70.

51310-05D60

Unavailable

10

BOLT This part replaces 51328-27C40.

51166-27E30

$4.11

11

WASHER,STEM HEAD This part replaces 51356-27C40.

51356-29E00

$20.30

12

NUT, STEM HEAD

51353-27C40

$31.45

13

HOLDER, HANDLE

56211-27100

$20.22

14

BOLT,HANDLE HOLDER (8X35)

51321-27C40

$4.66

15

HOLDER, HANDLE LOWER

56221-28C60

$68.13

16

BOLT, LOWER HANDLE

56321-28C60

Unavailable

17

CUSHION,RUBBER This part replaces 56241-28C60.

56241-28C61

$28.13

18

SPACER

56243-42A00

$9.07

19

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$26.90

20

NUT

08319-31107

$2.73

21

PIN This part replaces 04111-20308.

04111-2030A

$1.63
