1992 Suzuki RM250N Shock Absorber Diagram

← All diagrams

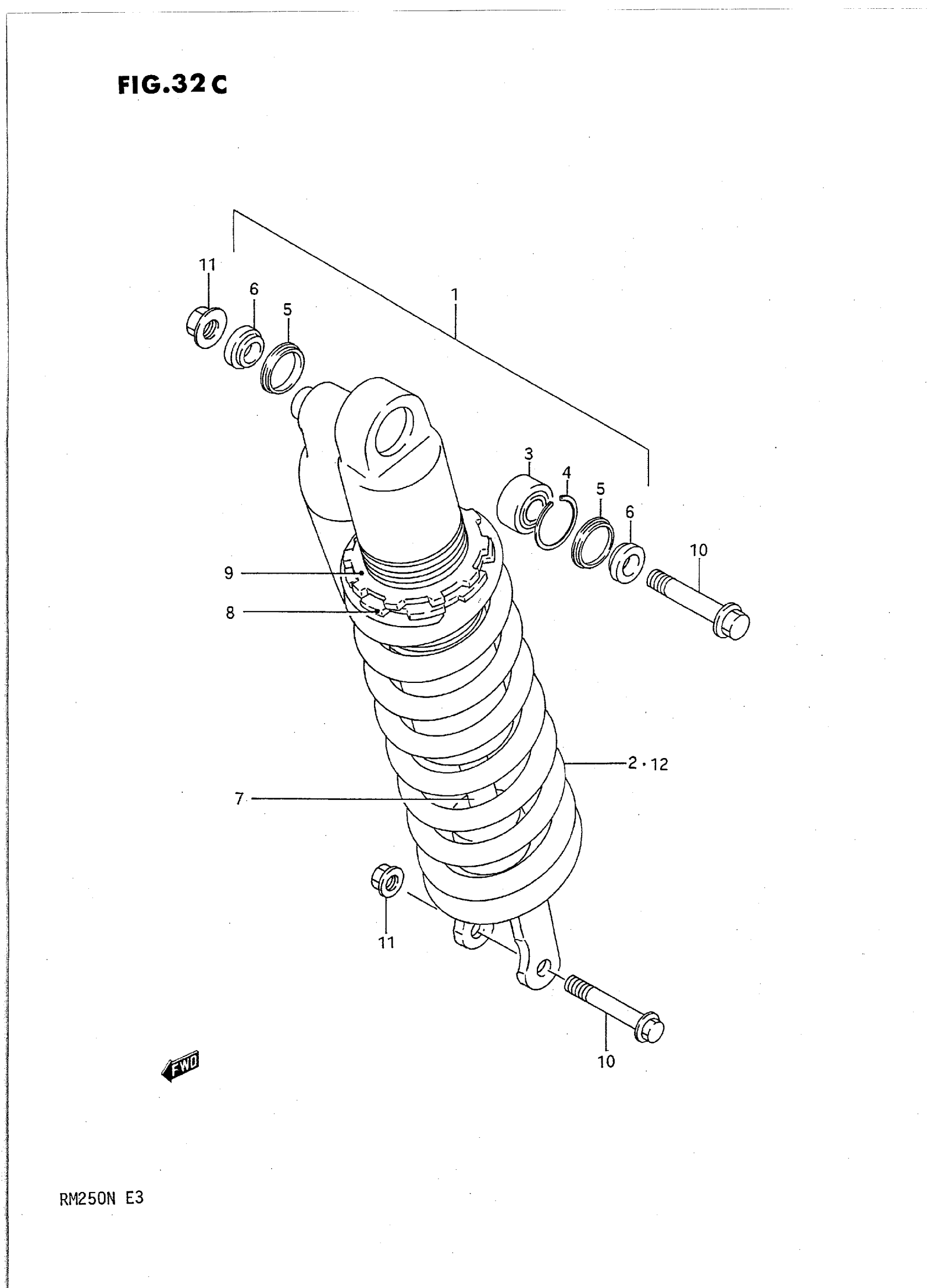

Find the part on the Shock Absorber diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki RM250N Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK | YELLOW; Includes Item(s) 2 - 9

62100-28C70-163

1
Out of stock

2

SPRING This part replaces 62211-28C70.

62211-28C70-163

1
Out of stock

3

BEARING, REAR This part replaces 62175-27C20.

62175-43D00

1
Out of stock

4

STOP RING

62277-27C40

1

$4.47

In stock

5

DUST SEAL

62226-27C40

2
Out of stock

6

COLLAR

62684-27C40

2
Out of stock

7

ROD, PISTON

62120-28C70

1
Out of stock

8

ADJUSTER NUT SET This part replaces 62191-27C40.

62190-28E00

1
Out of stock

9

NUT

62194-27C40

1
Out of stock

10

BOLT, LOWER (10X54) This part replaces 62311-28C00.

62311-28E00

2
Out of stock

11

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 62211-28C80.

62211-28C80-163

1
Out of stock

12

SPRING (SOFT) | OPT

62211-27C90

1
Out of stock
