1992 Suzuki RM250N Rear Wheel Diagram

← All diagrams

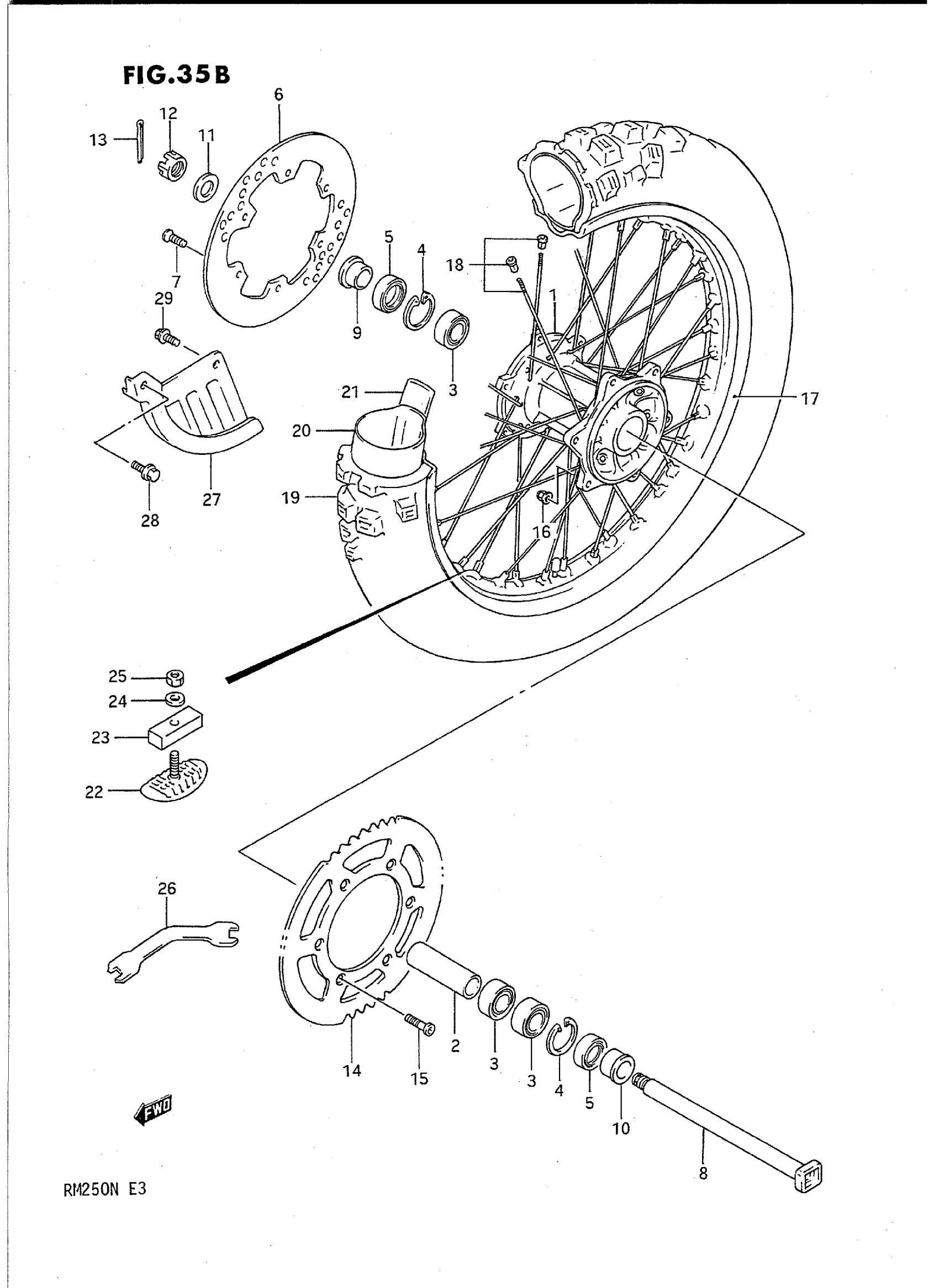

Find the part on the Rear Wheel diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki RM250N Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

64111-43D00

1
Out of stock

2

SPACER, BEARING

64731-43D00

1
Out of stock

3

BEARING

08133-60047

3

$25.50

In stock

4

2

$2.61

In stock

5

SEAL, DUST

09282-26001

2

$16.75

In stock

6

DISC, REAR BRAKE

69211-43D00

1
Out of stock

7

SCREW

02122-06167

6
Out of stock

8

AXLE, REAR This part replaces 64711-27C20.

64711-27C30

1
Out of stock

9

SPACER, RH

64741-43D00

1
Out of stock

10

SPACER, LH

64751-43D01

1
Out of stock

11

WASHER

09160-19021

1
Out of stock

12

1

$5.49

In stock

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

14

1

$134.48

In stock

14

SPROCKET, REAR (NT:48) | OPT ALUMINIUM This part replaces 64511-40285.

64511-14D60

1
Out of stock

14

1

$172.72

In stock

14

SPROCKET, REAR (NT:49) | OPT STEEL

64511-00B01

1
Out of stock

14

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

1
Out of stock

15

SCREW

09120-08010

6
Out of stock

16

NUT

09159-08067

6

$5.39

In stock

17

RIM, WHEEL (2.15X19AL)

65311-28C10

1
Out of stock

18

SPOKE ASSY, WHEEL

65320-28C10

1
Out of stock

19

NO DESCRIPTION AVAILABLE This part replaces 65110-28C41.

65110-28E11

1
Out of stock

20

1

$44.78

In stock

21

1

$6.77

In stock

22

1

$66.32

In stock

23

CUSHION, BEAD STOPPER

65271-27C00

1

$8.37

In stock

24

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

25

1

$1.93

In stock

26

SPANNER, OPEN

09813-00039

1
Out of stock

27

COVER, REAR DISC This part replaces 69231-28C00.

69200-28C00

1
Out of stock

28

1

$2.55

In stock

29

BOLT This part replaces 01517-06128.

01550-06127

1
Out of stock
