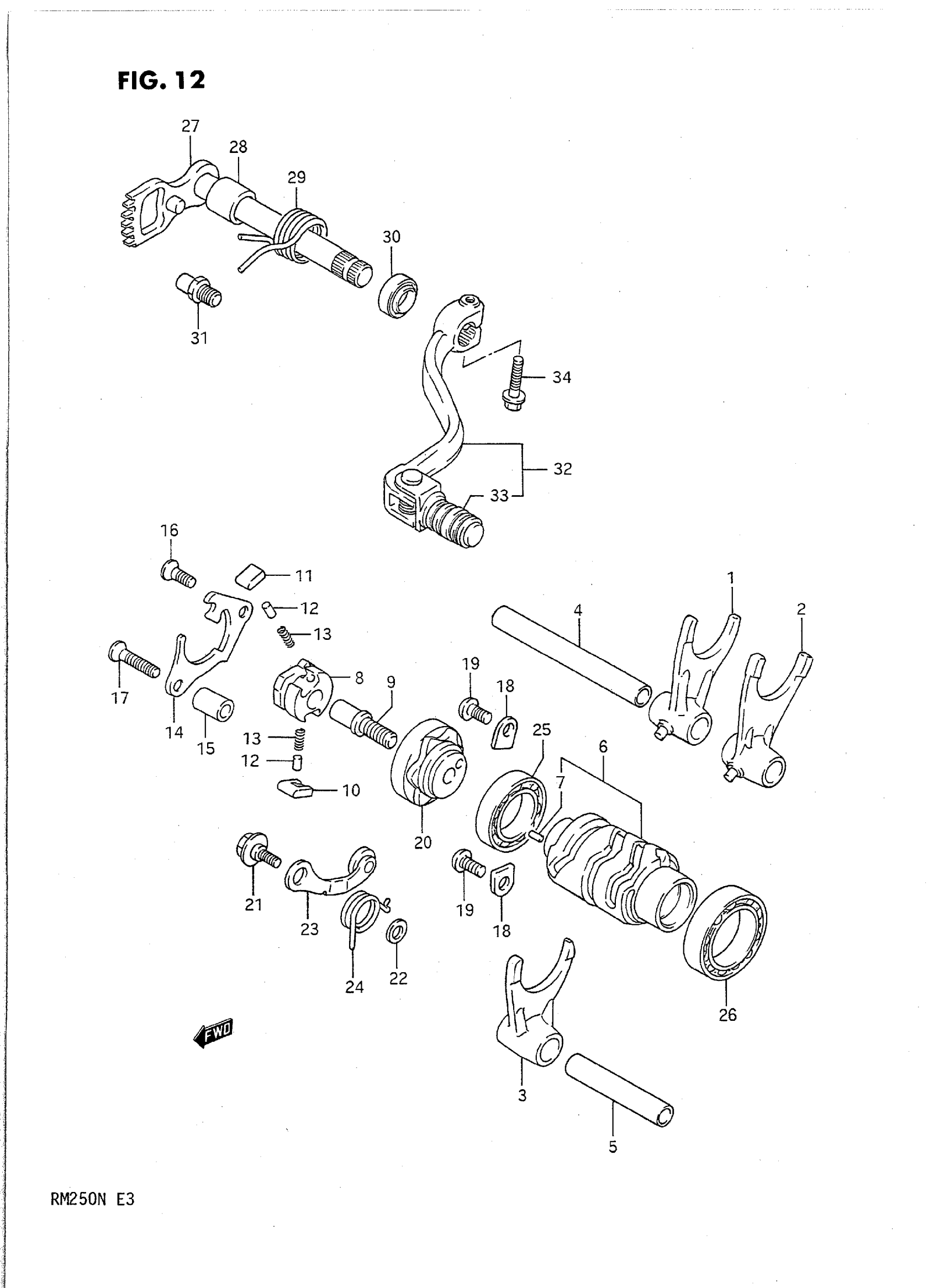

Suzuki RM250N (1992) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-28C01

$93.58

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-28C01.

25221-28C02

$99.05

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-28C01.

25231-28C02

$94.03

4

SHAFT, GEAR FORK NO.1 This part replaces 25411-27C00.

25411-37F20

$25.08

5

SHAFT, NO.2 (L:60) This part replaces 25421-27C00.

25421-27C01

$20.82

6

CAM | MODEL K This part replaces 25310-28C01.

25310-28C20

Unavailable

6

CAM | MODEL L This part replaces 25310-28C10.

25310-28C20

Unavailable

6

CAM | MODEL M/N; Includes Item(s) 7 - 7

25310-28C20

Unavailable

7

PIN, SHIFT CAM STOPPER PLATE | L:11.8,MODEL K

09261-04011

Unavailable

7

PIN (4X13.8) | MODEL L/M/N

04221-04089

$1.10

8

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$30.40

9

PIN, SHIFT CAM DRIVEN GEAR This part replaces 25313-27C00.

25313-27C02

$14.73

10

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

11

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

12

PIN

09261-05003

$1.69

13

SPRING

09440-04003

$1.48

14

LIFTER, PAWL

25331-28C00

$27.32

15

SPACER (6.2X12X18)

09180-06204

Unavailable

16

SCREW This part replaces 02122-06128.

02122-06127

$1.83

17

SCREW This part replaces 02122-06308.

02122-0630B

$2.07

18

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.80

19

SCREW This part replaces 02112-06128.

02112-06127

$1.83

20

PLATE, SHIFT CAM STOPPER | MODEL K This part replaces 25381-27C02.

25381-28C20

Unavailable

20

PLATE, SHIFT CAM STOPPER | MODEL L This part replaces 25381-27C10.

25381-28C20

Unavailable

20

PLATE, STOPPER | MODEL M/N

25381-28C20

Unavailable

21

BOLT, SHIFT CAM STOPPER

09111-06041

$2.63

22

WASHER

08211-06121

$1.56

23

STOPPER, SHIFT CAM | MODEL K/L This part replaces 25350-28C00.

25350-28C20

Unavailable

23

STOPPER, CAM | MODEL M/N

25350-28C20

Unavailable

24

SPRING | MODEL K

09448-18021

Unavailable

24

SPRING | MODEL L/M/N

09448-18025

Unavailable

25

BEARING, RH

08140-69050

$32.18

26

BEARING, LH

09263-30035

Unavailable

27

SHAFT, GEAR SHIFTING

25510-28C30

$108.60

28

SPACER (14X20X17.5)

09180-14016

$3.57

29

SPRING

09444-26013

$2.84

30

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

32

LEVER ASSY, GEAR SHIFT | MODEL K This part replaces 25600-28C01.

25600-28C21

Unavailable

32

LEVER ASSY, GEAR SHIFT | MODEL L This part replaces 25600-28C02.

25600-28C21

Unavailable

32

LEVER ASSY, GEAR SHIFT | MODEL M This part replaces 25600-28C20.

25600-28C21

Unavailable

32

LEVER, GEAR SHIFTING | MODEL N; Includes Item(s) 33

25600-28C21

Unavailable

33

RUBBER,GEAR SHI This part replaces 25652-27C00.

25652-27C01

$25.80

34

BOLT

01547-06257

$2.01
