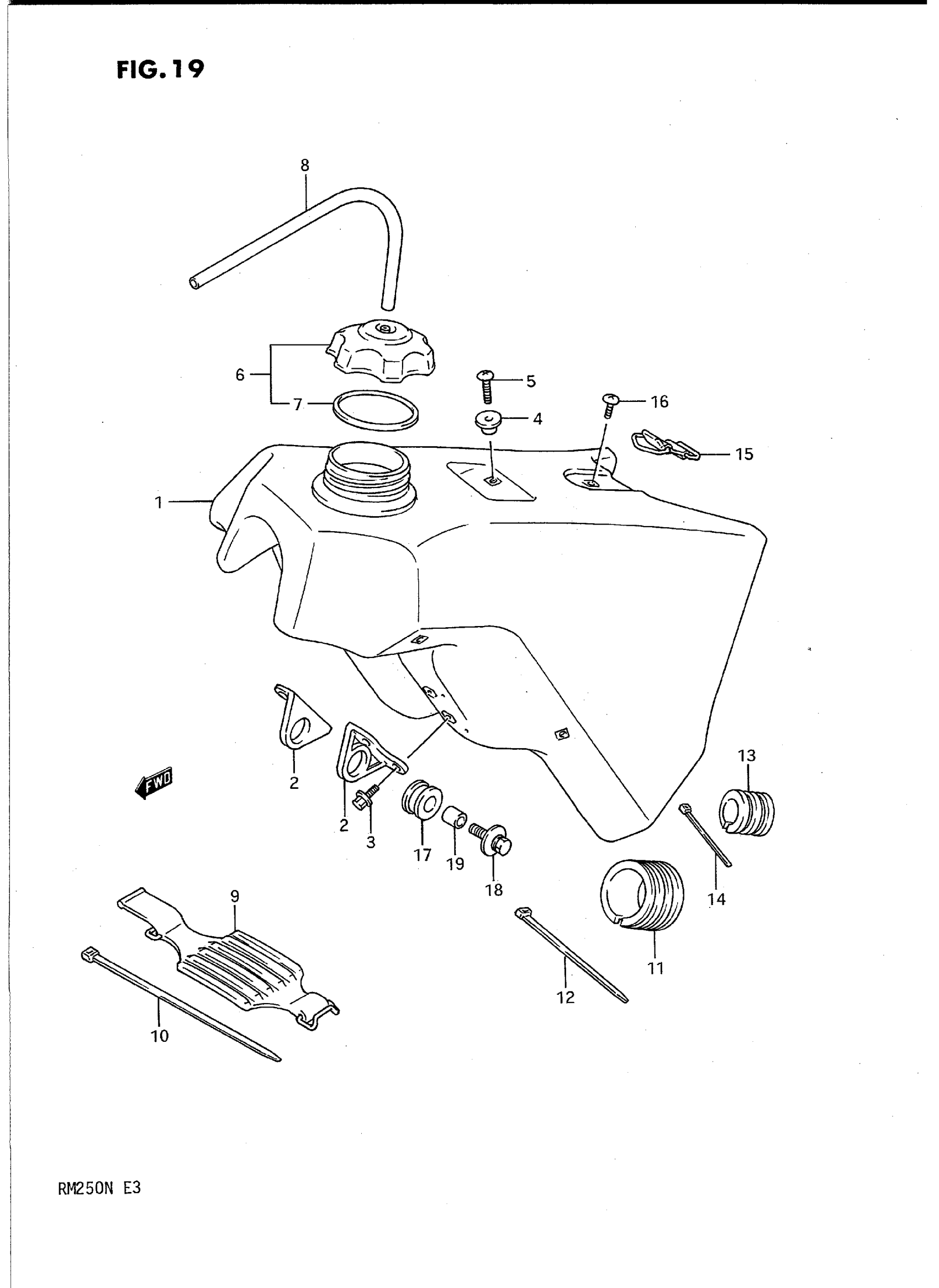

Suzuki RM250N (1992) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 44101-28830-25Y.

44101-28831-25Y

Unavailable

2

BRACKET, FRONT

44131-27C01

$16.77

3

BOLT, FRONT

01547-06127

$1.67

4

HOOK, SEAT FR This part replaces 44132-27C00.

44132-27C01

$19.39

5

SCREW, HOOK

02142-06207

$1.38

6

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

$21.02

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$3.96

8

.HOSE This part replaces 09352-50903-600.

09352-50006-600

$6.75

9

CUSHION, UPPER NO.1 | MODEL K

44541-27C00

Unavailable

9

CUSHION, UPPER NO.1 | MODEL L/M/N

44541-26C00

$20.33

10

CLAMP | MODEL K

09407-30402

$3.76

10

CLAMP | MODEL L/M/N This part replaces 09407-20405.

09407-25402

$4.19

10

CLAMP, MIDDLE | MODEL L/M/N

09407-25402

$4.19

11

CUSHION, UPPER REAR

44542-26C00

$10.55

12

CLAMP, UPPER REAR CUSHION

09407-30402

$3.76

13

CUSHION, UPPER NO.2

44541-26C00

$20.33

14

CLAMP

09407-14407

$2.80

15

BAND, REAR

44560-27C00

$7.04

16

SCREW This part replaces 02142-06164.

02142-0616A

$1.37

17

CUSHION

09320-12030

$2.56

18

BOLT

09118-08132

Unavailable

19

SPACER This part replaces 09180-08003.

09180-08191

$2.64
