2008 Suzuki RM250 Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2008 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

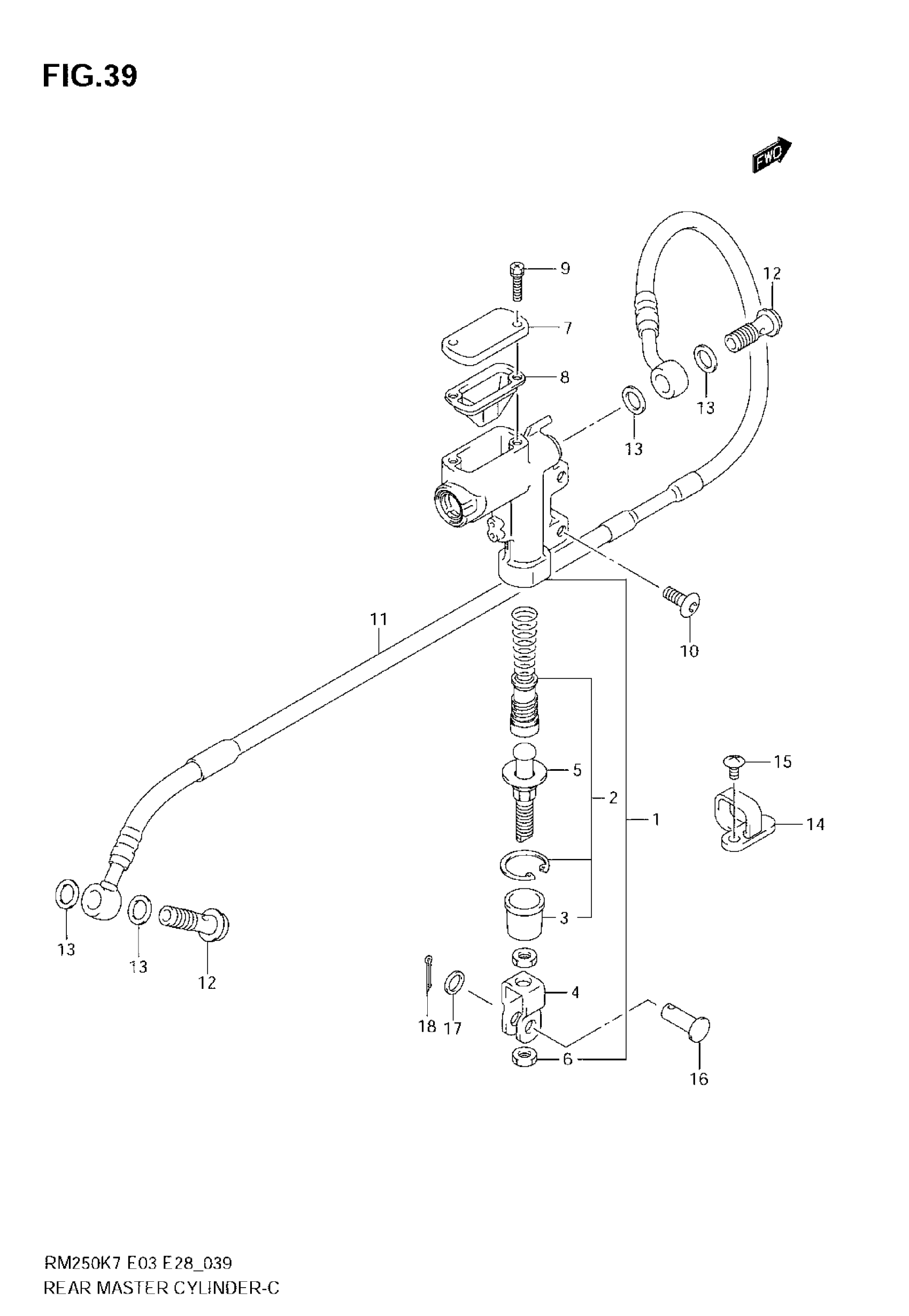

2008 Suzuki RM250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69604-37F30

1
Out of stock

2

1

$32.18

In stock

3

.BOOT

69691-00A00

1
Out of stock

4

YOKE

69692-37F20

1
Out of stock

5

ROD, PUSH

69670-27A30

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CAP

69669-37F20

1
Out of stock

8

DIAPHRAGM

69667-37F20

1
Out of stock

9

SCREW

69689-37F30

2
Out of stock

10

BOLT

09139-06139

2
Out of stock

11

HOSE,RR BRAKE This part replaces 69480-36F31.

69480-36F33

1
Out of stock

12

UNION (10X1.25X22)

09360-10053

2
Out of stock

13

WASHER (10X15X1.5)

09161-10009

4
Out of stock

15

SCREW This part replaces 02142-0510A.

02142-0510B

1
Out of stock

16

PIN

09200-08048

1
Out of stock

17

WASHER This part replaces 09160-08119.

09160-08090

1
Out of stock

18

PIN, COTTER

04111-2015A

1
Out of stock
