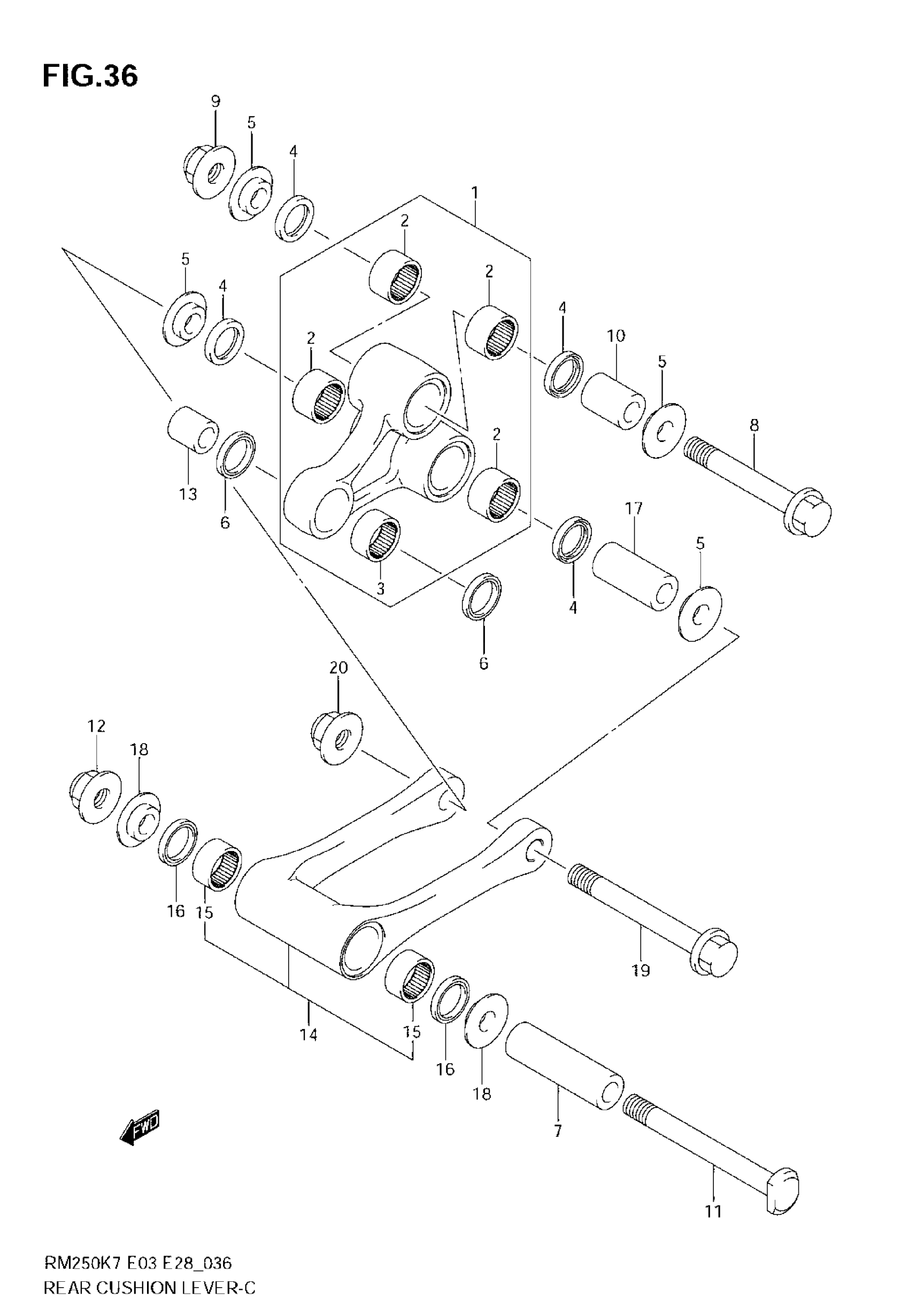

Suzuki RM250 (2008) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-37860

$495.85

2

BEARING (20X26X14)

09263-20090

$15.37

3

BEARING (20X26X12)

09263-20083

$23.27

4

SEAL, DUST (19X26X4)

09284-20003

$7.03

5

SPACER

62647-37F10

$18.23

6

SEAL, REAR (20X26X4.5)

09284-20001

$4.47

7

SPACER, RR CUSHION ROD

62317-37F10

$37.12

8

BOLT, RR CUSHION ROD

62658-37F10

$11.70

9

NUT

09159-12056

$6.86

10

SPACER, CENTER (15X20X44)

62648-37F10

$25.42

11

BOLT, CENTER (12X100)

62621-37F10

$15.50

12

NUT

09159-12056

$6.86

13

SPACER, REAR CUSHION LEVER

62684-36E00

$18.70

14

ROD SET, REAR CUSHION LEVER | Includes Item(s) 15

62600-37870

$488.33

15

BEARING

09263-20090

$15.37

16

SEAL

09284-20003

$7.03

17

SPACER,RR CUSHION LEVER LWR

62646-37F10

$30.40

18

SPACER

62647-37F10

$18.23

19

BOLT, ROD

62657-37F10

$12.02

20

NUT

09159-12056

$6.86
