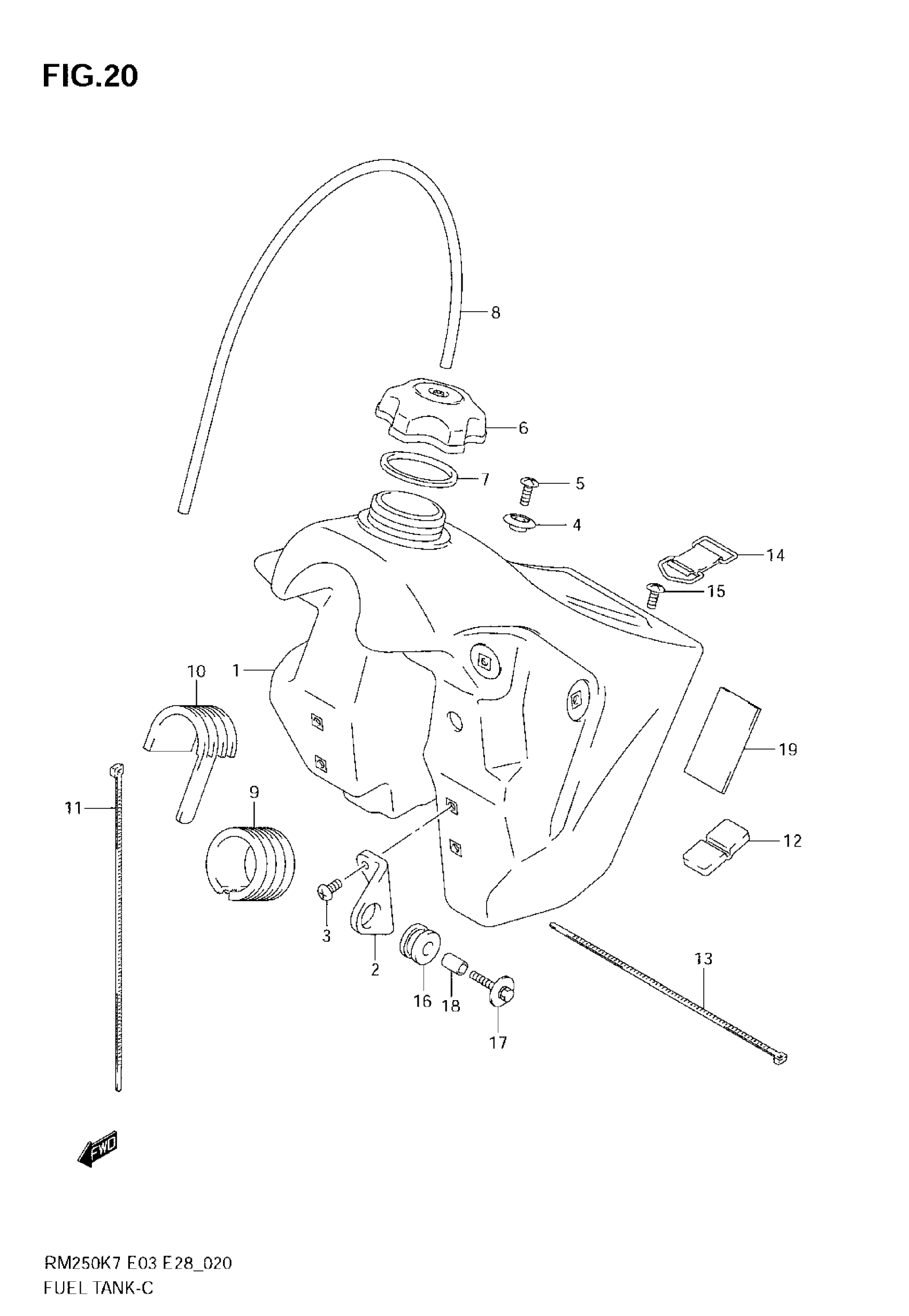

Suzuki RM250 (2008) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | Includes Item(s) 2 - 5

44110-37F21-YU1

Unavailable

2

BRACKET, FRONT

44131-27C01

$16.77

3

BOLT, FRONT

09103-06280

$3.30

4

HOOK, SEAT FRONT

44132-37F10

$13.03

5

SCREW, HOOK

02122-0620B

$1.46

6

CAP, FUEL TANK

44210-37F00

$39.00

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$4.13

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

9

CUSHION

44541-26C00

$20.33

10

CUSHION

44541-37F00

$17.60

11

CLAMP

09407-30402

$3.90

12

CUSHION, REAR

44542-37F00

$11.10

13

CLAMP, REAR

09407-25402

$4.32

14

BAND, REAR

44560-27C00

$7.36

15

SCREW

09139-06134

$2.87

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.58

17

BOLT, FRONT

09116-06195

$4.02

18

SPACER

09180-06268

$2.17

19

CUSHION, SIDE

33652-19F00

$4.29
