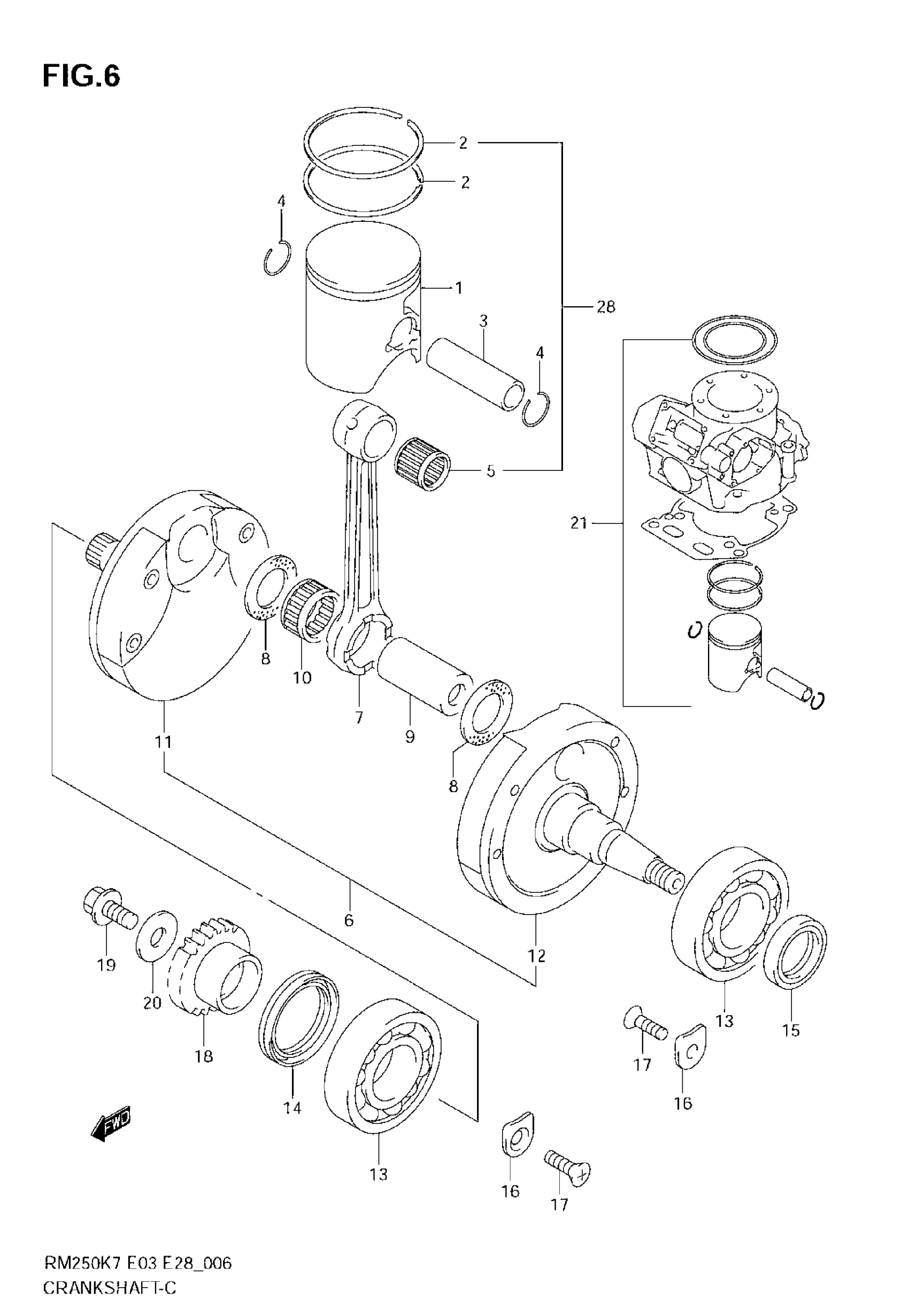

Suzuki RM250 (2008) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12110-37F30-0F0

$167.32

2

RING, PISTON

12141-37F00

$34.68

3

PIN, PISTON This part replaces 12151-28C00.

12151-37F00

$15.97

4

CIRCLIP

09381-18002

$1.49

5

BEARING

09263-18031

$26.57

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 12

12200-37F40

$606.88

7

ROD, CONNECTING

12161-37F20

$168.22

8

WASHER

09160-24033

$18.07

9

PIN, CRANK

12210-37F20

$51.20

10

BEARING, CRANK PIN

09263-24026

$89.35

11

CRANKSHAFT, RH

12220-37F40

Unavailable

12

CRANKSHAFT, LH

12260-37F40

Unavailable

13

BEARING, CRANKSHAFT

09262-28044

$65.89

14

OIL SEAL, CRANKSHAFT RH

09283-28025

$19.66

15

OIL SEAL, CRANKSHAFT LH

09283-25099

$12.06

16

RETAINER, CRANKSHAFT BEARING

24741-37F00

$5.33

17

SCREW

02122-0612B

$2.33

18

GEAR, PRIMARY DRIVE (NT:21)

21111-37F20

$91.97

19

BOLT, PRIMARY DRIVE GEAR

09103-10339

$8.80

20

WASHER

09164-11004

$5.95

21

TOP END KIT, ENGINE | OPT E3; Includes Item(s) 22 - 27

12102-37840

Unavailable

22

O RING, CYLINDER HEAD N | NOT SHOWN

11147-37F00

$18.16

23

O RING, CYLINDER HEAD N | NOT SHOWN

11148-37F00

$9.78

24

GASKET, CYLINDER | NOT SHOWN

11241-37F20

$14.10

25

PISTON | NOT SHOWN

12110-37F30-0F0

$167.32

26

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

27

CIRCLIP | NOT SHOWN

09381-18002

$1.49

28

PISTON KIT | OPT E28; Includes Item(s) 29 - 33

12110-37830

$309.22

29

PISTON | NOT SHOWN

12110-37F30-0F0

$167.32

30

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

31

PIN, PISTON | NOT SHOWN This part replaces 12151-28C00.

12151-37F00

$15.97

32

BEARING, PISTON PIN | NOT SHOWN

09263-18031

$26.57

33

CIRCLIP | NOT SHOWN

09381-18002

$1.49
